– 3.28 –

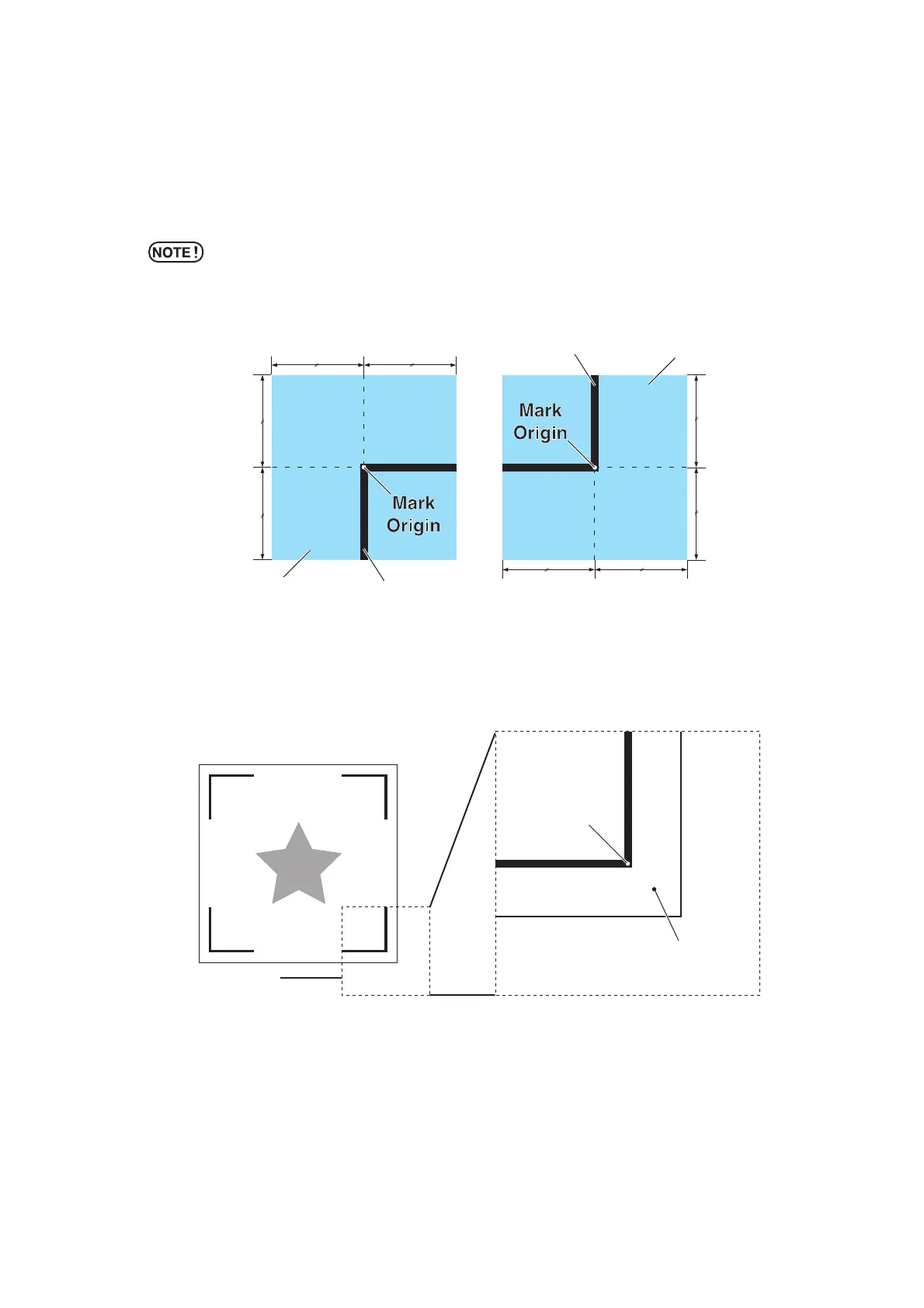

No plotting area around the registration marks
Around the registration marks(from the mark origin to the mark size area), there should be no data
or stains, which can lead to incorrect detection of the origin or marks.
* When the mark origin gets detected incorrectly, the cutting area will be
altered.
Mark Form : Type1 Mark Form : Type2
Example of incorrect detection 1 : The plot is outside the registration marks
In correctly detected
In correctly detected
mark origin
mark origin
.
Mark
Mark
Origin
Origin
Mark size
Mark size
Mark No plotting area
No plotting area Mark
