– 3.29 –

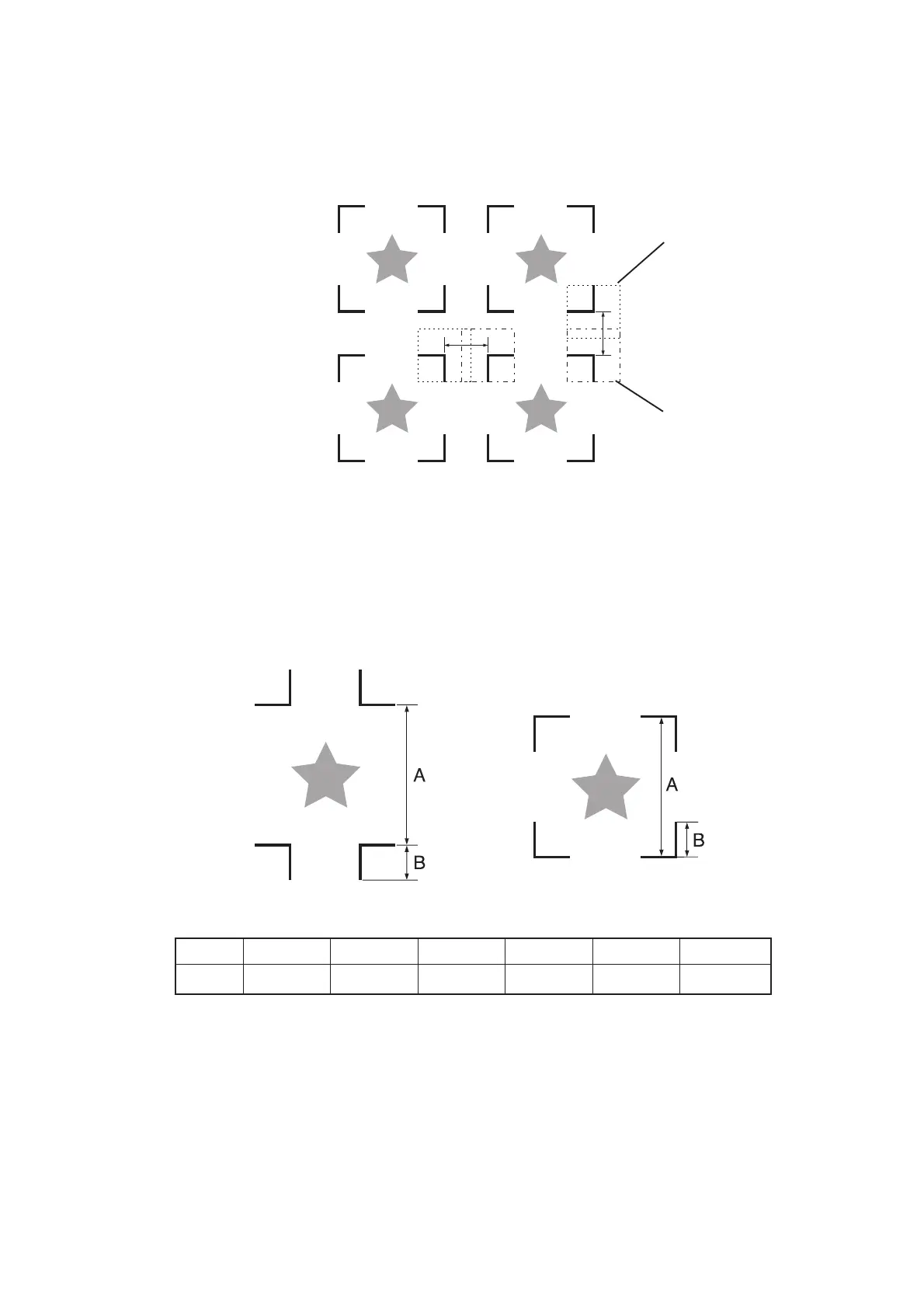

Example of incorrect detection 2 : The distance between registration marks(TP2&TP1,
TP4&TP2) is smaller than the mark length (for TYPE2)
The size of, and the distance between, registration marks
The size of the registration mark in accordance with the distance between marks is as follows.
When the size is too small, the marks will not be detected correctly.
A 200 and less 500 1000 2000 3000 5000 and more
B 4 ~ 8 ~ 15 ~ 25 ~ 35 ~ 40
(mm)
No plotting area
No plotting area
Space larger than the mark
length
Space larger than the mark length
