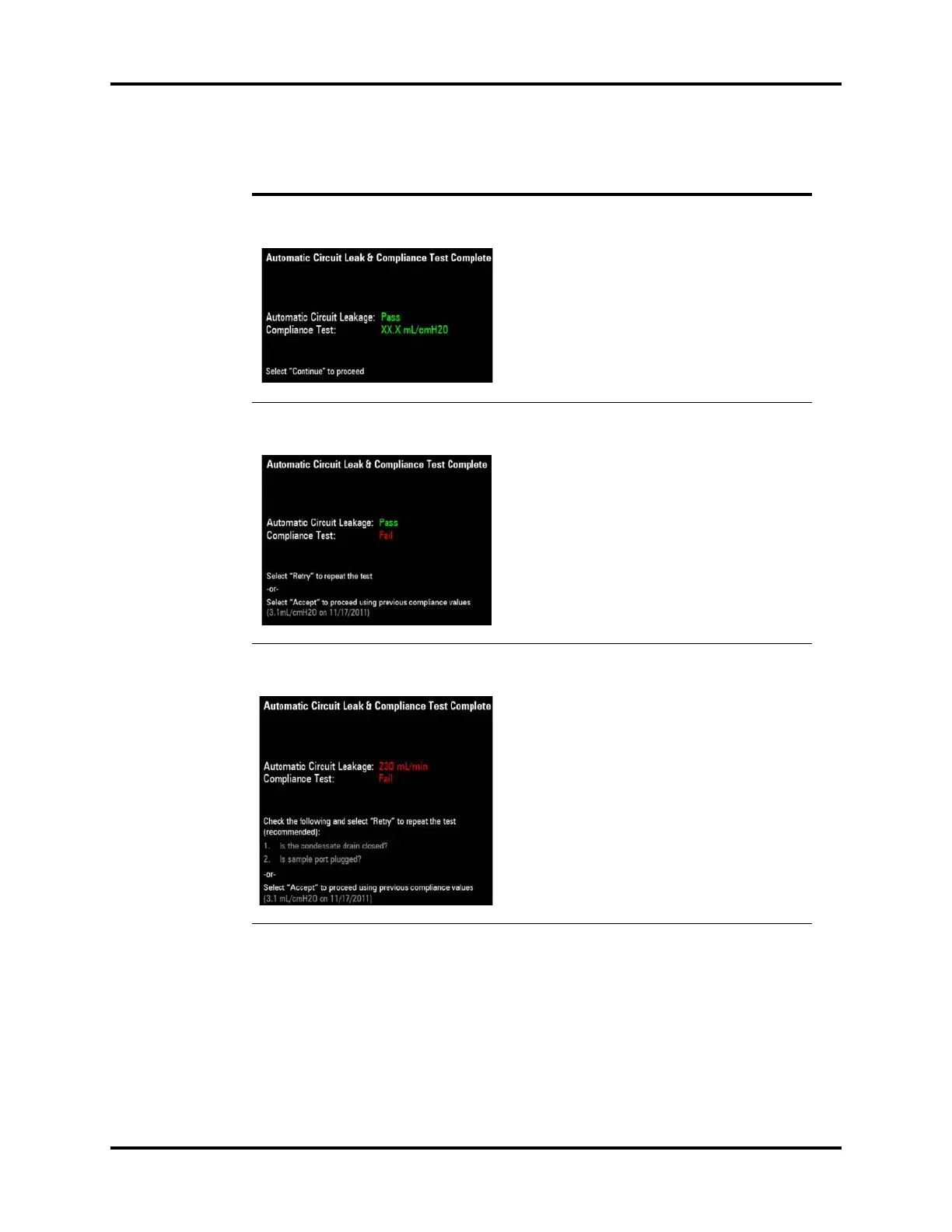

A5/A3™ Operating Instructions 046-003777-00 4 - 11
Preoperative Tests Leak and Compliance Tests
RESULTS COMMENTS/OPTIONS
Automatic Circuit Leakage: Pass
Compliance Test: XX.X mL/cmH
2
O
Example:
Leak rate ≤200 ml/min
Compliance test results are displayed in green.
Select Continue to proceed to the Manual Circuit Leak
Test screen.
Automatic Circuit Leakage: Pass
Compliance Test: Fail
Example:
Leak rate ≤200 ml/min
Compliance test failed.
The results screen displays the compliance values and
time of the last compliance test that passed. If the
compliance test has never been performed successfully,
the compliance values and test time are displayed as ---.
Select Accept to proceed to the Manual Circuit Leak Test
screen and use the previous compliance values.
or
Select Retry to repeat the Automatic Circuit Leak Test &
Compliance Test.
Automatic Circuit Leakage: XXX ml/min
Compliance Test: Fail
Example:
Leak rate >200 ml/min and ≤1000 ml/min
The results screen displays the compliance values and
time of the last compliance test that passed. If the
compliance test has never been performed successfully,
the compliance values and test time are displayed as ---.
Select Accept to proceed to the Manual Circuit Leak Test
screen and use the previous compliance values.
or
Select Retry to repeat the Automatic Circuit Leak Test &
Compliance Test.
TABLE 4-3 Automatic Circuit Leak and Compliance Test Results
