Alarms and Messages Displaying Alarms
6.2 Displaying Alarms
On the LCD monitor screen, alarm messages are automatically displayed at the top area of the Main
Screen when alarm conditions occur (see FIGURE 6-3). Additionally, a list of all active alarms and an
alarm log can be found in the Alarms window (see FIGURE 6-2).
Each message is displayed with an associated priority symbol as follows:
To display a list of all active alarms:
1. On the Main Screen, select the Alarms softkey or touch the Alarm Message area at the top
of the screen.
The Alarms windows is displayed.
2. Select the Active tab.
A list of all active alarm messages is displayed (see FIGURE 6-2). Up to 15 current alarms can
be displayed on screen, after which a scroll bar is used to display the remaining alarms.
Alarms are displayed in order of priority and time. See section6.2.1 (page 6-6) "Displayed
Order of Alarm Messages" for more information.

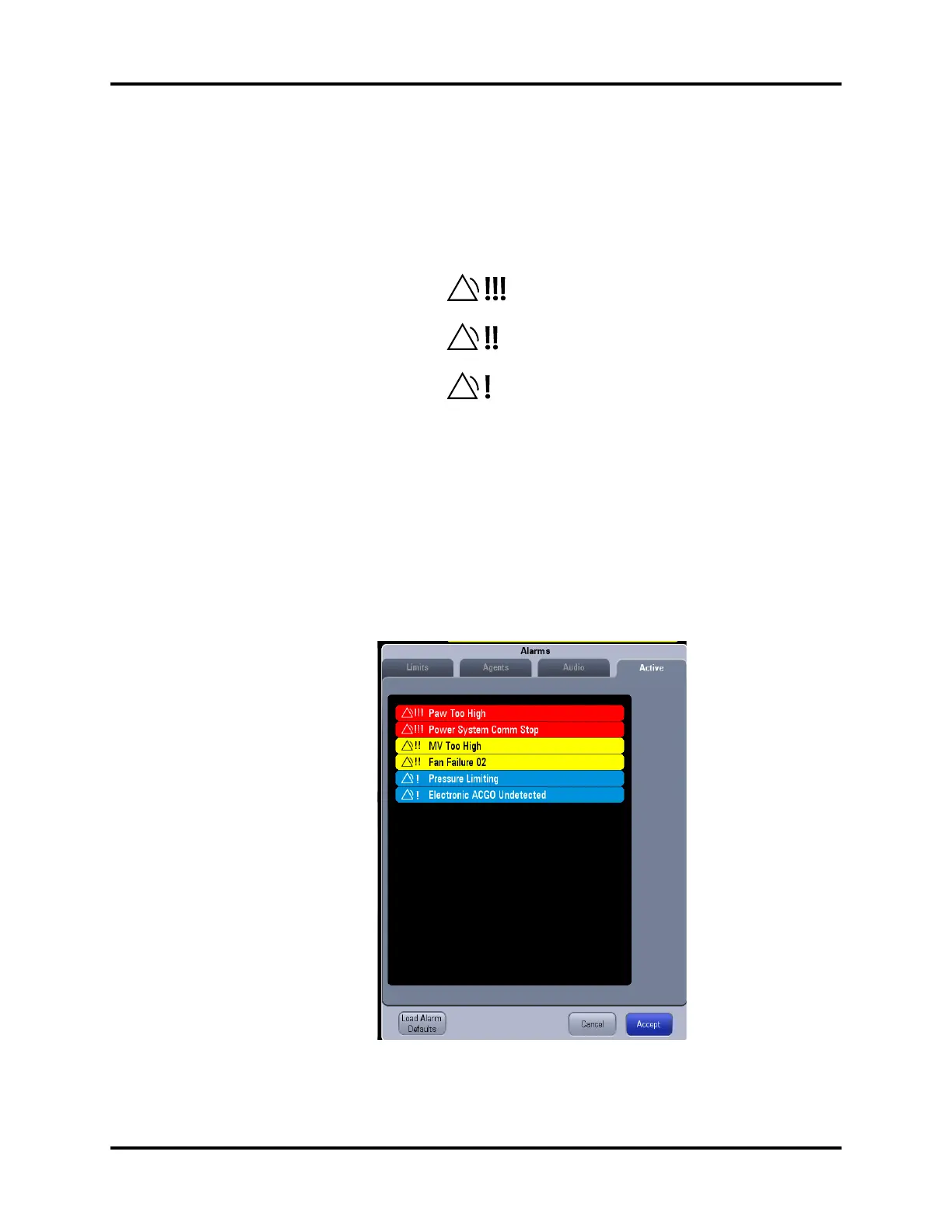

FIGURE 6-2 Active Alarms list in the Alarms window
•High priority
• Medium priority
•Low priority
To Next Page
