Physical Views Product Description
1 - 14 046-003777-00 A5/A3™ Operating Instructions
1.2.4 Main Unit (Right View)

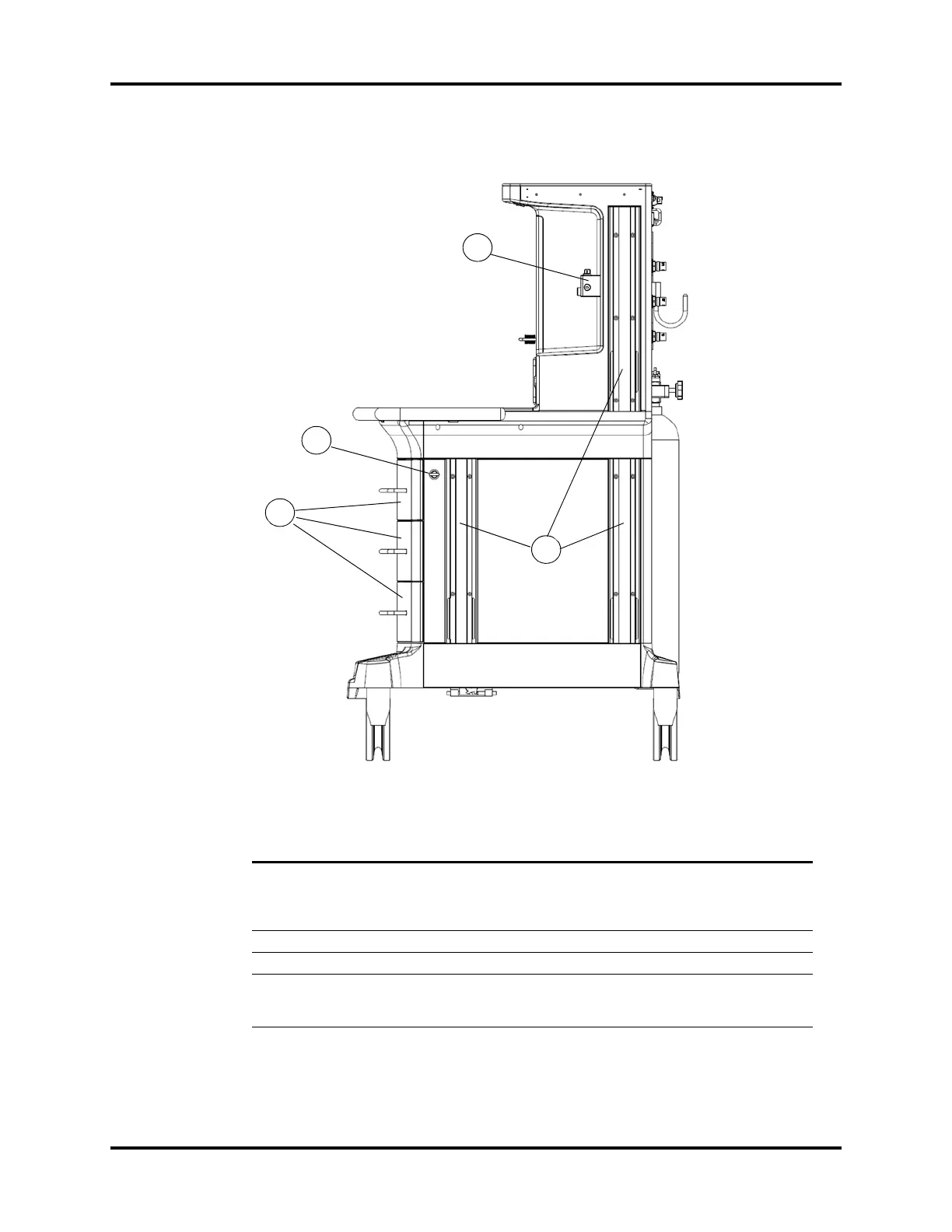

FIGURE 1-5 Main Unit (Right View)
PART(S) DESCRIPTION
D1 Vaporizer Mounting
Manifold / Mounting Bar
An interface for two/three Selectatec-type vaporizers to
mount in this location. Bar holds two/three (optional)
vaporizers. An interlock within the vaporizers provides for use
of one vaporizer to deliver one agent at a time.
D2 Key Lock Key and lock for securing the drawers
D3 Storage Drawers Drawers (3) for storage (lockable)
D4 Rail Mount Enables mounting of patient monitors and most standard
attachment arms for other devices. Rail mounts are on both
left and right sides of the A5/A3.
