General System Overview Product Description
1 - 8 046-003777-00 A5/A3™ Operating Instructions
If the battery capacity is too low, power supply failure will result. A high-level alarm will be triggered
and the message Low Battery Voltage! will be displayed in the technical alarm area. In this case,
apply AC power to the A5/A3 Anesthesia System to resume operation and charge the battery supply.
1.1.11 Workplace Ergonomics
The A5/A3 is a full-featured anesthesia delivery work station. The raised perimeter of its stainless steel
work surface retains items that might otherwise roll or slide off its edge. The work surface light has
high and low brightness settings. The wrap-around handle enables fine positioning of the machine.
Three (3) large drawers are available for storage. All drawers can be locked with a key. Rail mounts on
both sides of the machine enable mounting of patient monitors and most standard attachment arms
for other devices. For the A5, a non-slip footrest and central brake are provided. For the A3, a non-slip
footrest and individual caster brakes are provided. The top shelf can be used to mount additional
equipment.
The operator of the A5/A3 should be positioned in front of the monitor at a comfortable distance to
view all displayed waveforms, text, and controls.
1.1.12 Hook
There is a hook located on the front of the breathing system that can be used to hang the tubes of
the breathing circuit.

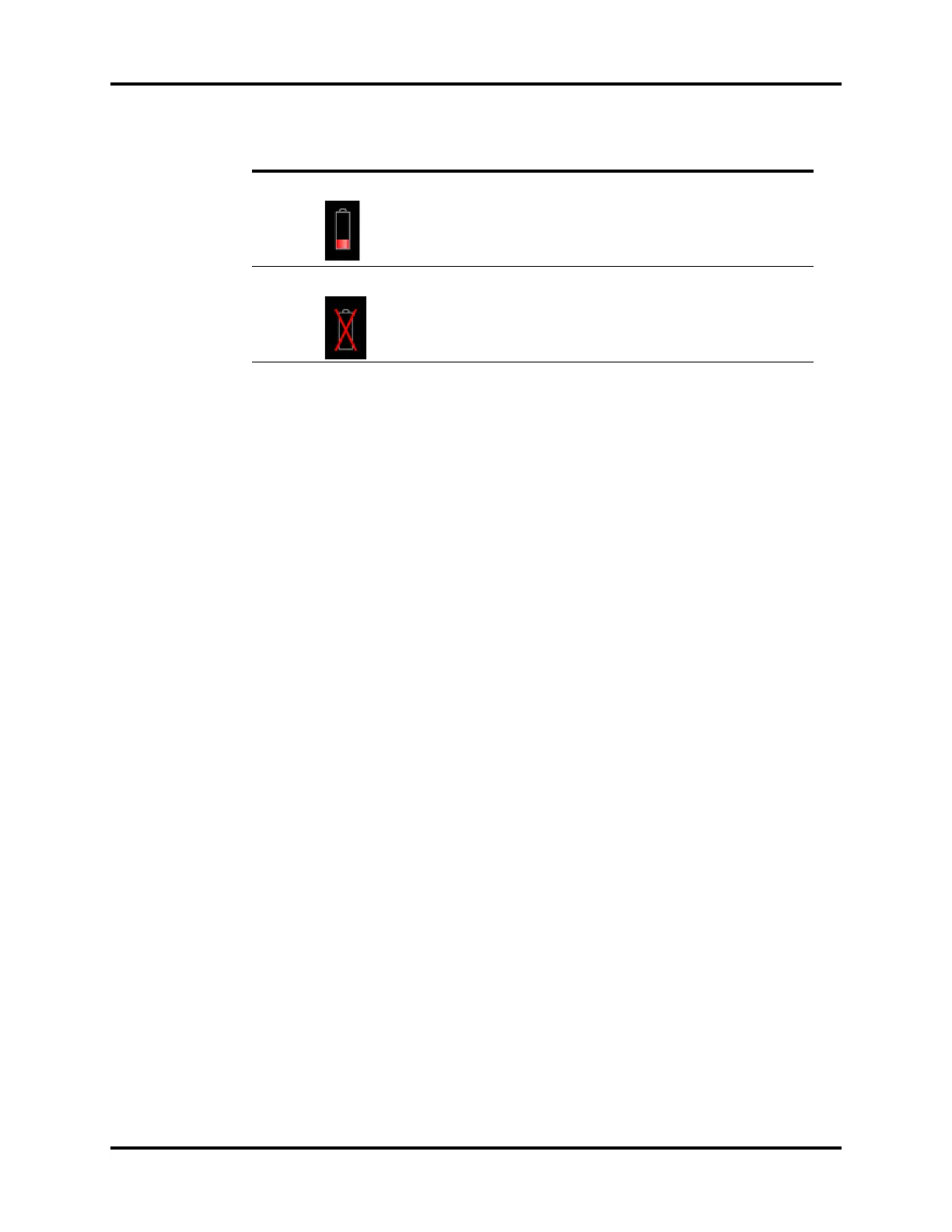

Battery supply is low charged. Batteries need to be charged
immediately to operate as a safe power backup.
AC power is not connected.
The A5/A3 is being powered by internal battery supply.
Battery supply is not installed.
FIGURE 1-1 Battery Status
PART(S) DESCRIPTION
