1.2.9 Passive Anesthetic Gas Scavenging System (AGSS) (Right
View)

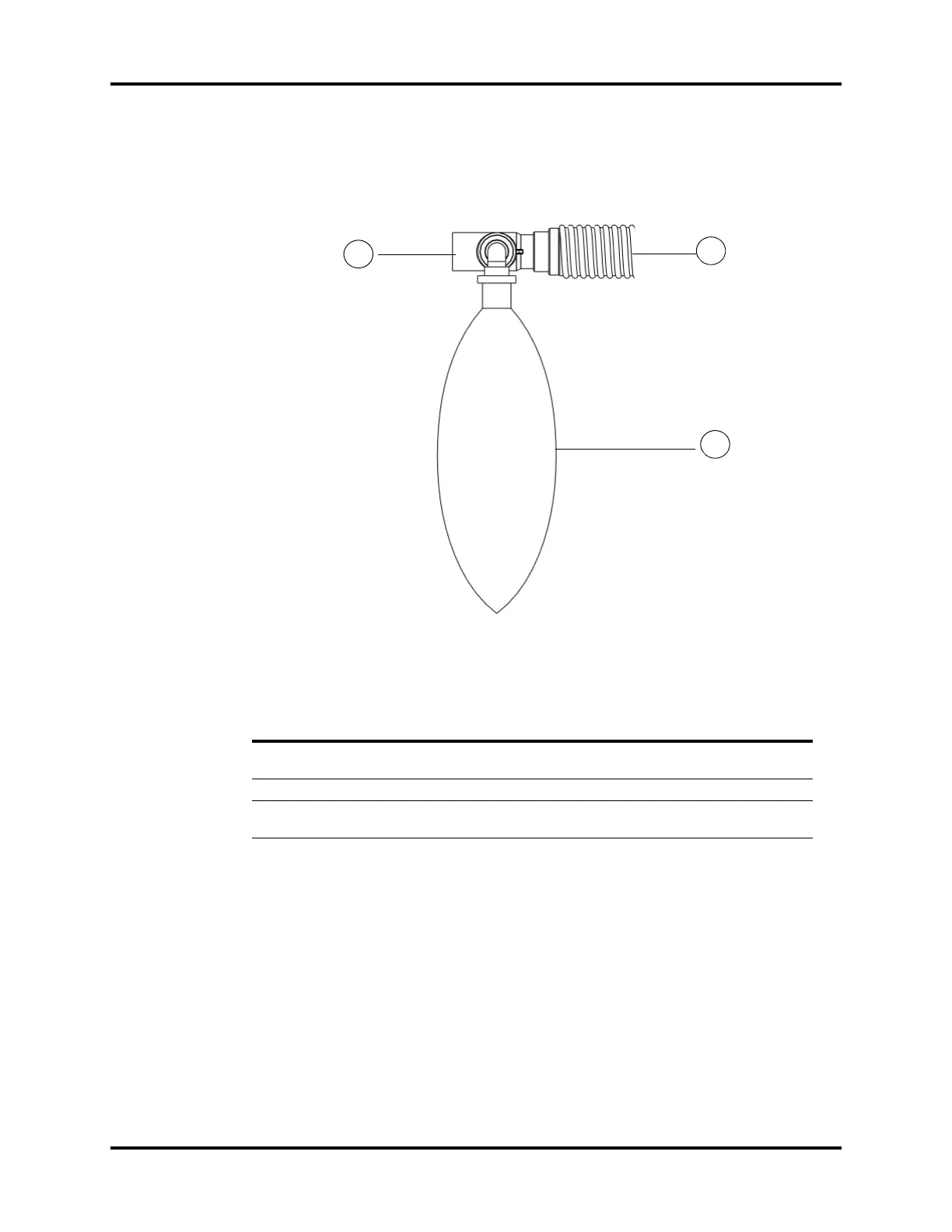

FIGURE 1-12 Passive AGSS (Right View)
PART(S) DESCRIPTION
J1 Inlet Port Intake for exhaust gases from the breathing system
connecting with the AGSS ports.
J2 Exhaust Port Exhaust port to the hospital’s waste gas scavenging system.
J3 Manual Bag When the manual bag is inflated, it indicates that the passive
AGSS is blocked.
J2
J3
J1
Rear View
