Maintenance Cleaning and Disinfection

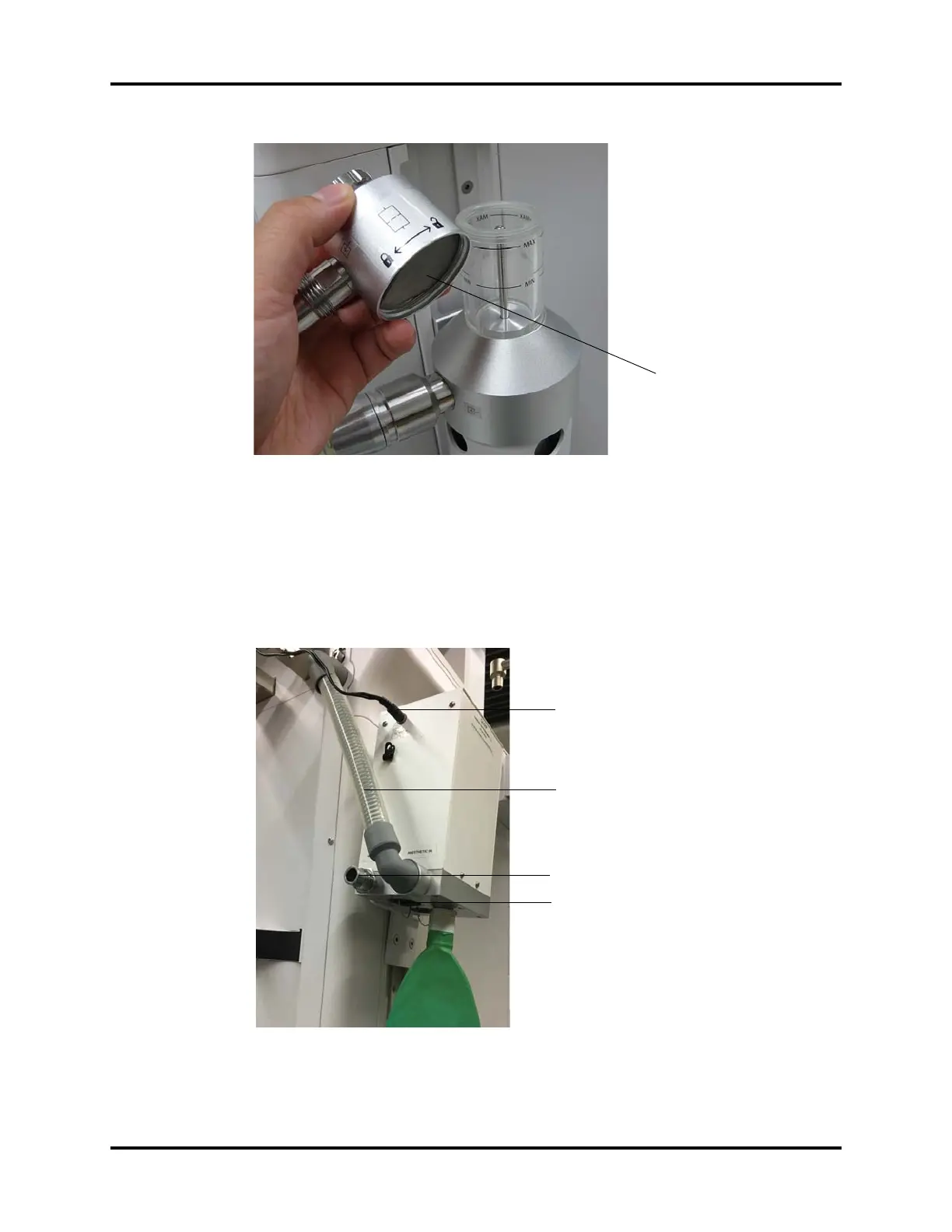

FIGURE 7-27 Removal of AGSS Top / AGSS Filter Inspection
5. Reassemble the AGSS and Transfer Hose and reconnect them to the A5/A3 in the reverse
order.
7.10.12.2 DGSS and Waste Gas Transfer Hose
1. Disconnect the power supply and the EVAC hose from the DGSS. (See FIGURE 7-28.)
2. Remove the Transfer Hose.
FIGURE 7-28 Transfer Hose Removal
3. The external surface can be cleaned by the use of soap/water or alcohol-based disinfectants.
Allow to dry thoroughly.
EVAC Hose Port
Transfer Hose
Power Supply
Negative Relief Filter
