Mindray A5 Operating Instructions

Cleaning and Disinfection Maintenance
7 - 20 046-003777-00 A5/A3™ Operating Instructions
7.10.8 PAW Gauge
1. The PAW gauge is a component that is plugged into position for use. It is not necessary to
remove this component to clean it. However, if removal is desired, simply hold it and lift it
straight up from the breathing system block (see
FIGURE 7-15).

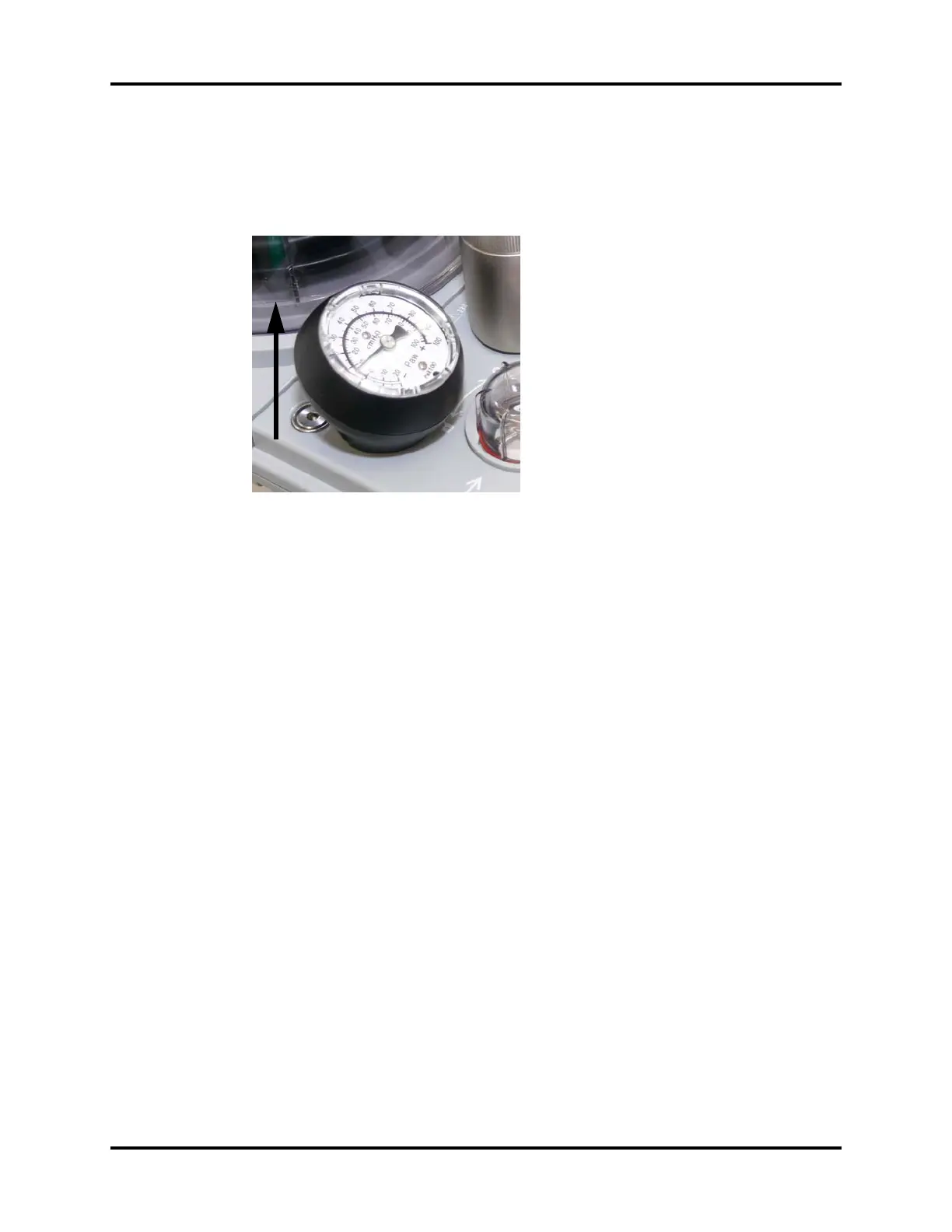

FIGURE 7-15 PAW Gauge Removal
CAUTION: Do not autoclave the following components: Paw gauge, oxygen
sensor, flow sensor, and bellows. These components cannot withstand
immersion or the heat and pressure of autoclaving.
2. Clean the PAW gauge with a soft, lint-free cloth and a recommended cleaning agent (see
section7.10.2 (page 7-11) "Cleaning and Disinfecting Agents / Autoclaving"). Allow it to dry
thoroughly.
3. Re-insert the PAW gauge if it was removed. Prior to use after cleaning or disinfecting, power
up the system and follow the on-screen prompts to perform the leak test and the
compliance test (
see section4.5 (page 4-9) "Leak and Compliance Tests")..

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
