3.10 Setup
Select the Setup softkey (see FIGURE 3-35) to open the Setup menu (see FIGURE 3-39).
The Setup menu contains the General tab, Display tab, System tab, and Service tab. See
section 3.12 (page 3-34) "Display Tab".
NOTE: The System tab is only available in Standby mode.
NOTE: The Service tab is for use only by Mindray Technical Service.
Please contact Mindray Technical Support for details.
Many of these functions are only available if the A5/A3 is in Standby mode.
3.11 General Tab
The General tab provides access to calibrate the O
2
sensor and flow sensor, perform system leak and
compliance tests, activate the breathing system warmer, and zero flow meters. The General tab also
displays information for the most recent calibrations and leak test results, whether they were passed,
failed, or skipped
(see FIGURE 3-39).

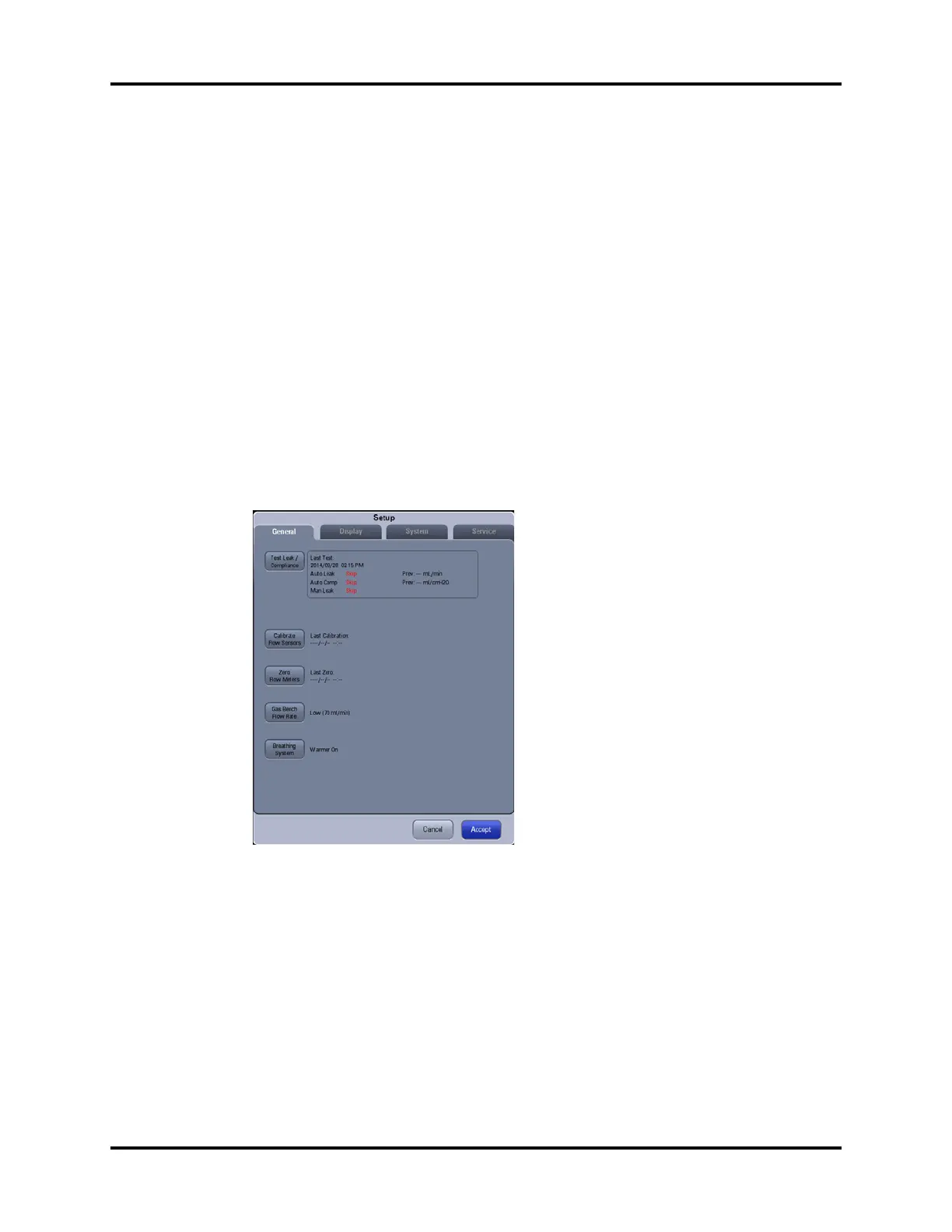

FIGURE 3-39 General Tab (with AG module connected)
Calibrate O
2
Sensor (without AG module connected)
To calibrate the O
2
sensor, select the Calibrate O
2
Sensor button. Follow the on-screen instructions
and prompts. See ‘‘O
2
Sensor Calibration’’ on page 7-6 for more information. Note that information for
the last O
2
sensor calibration is displayed next to the button.
Calibrate Flow Sensor
To calibrate the flow sensor, select the Calibrate Flow Sensor button. Follow the on-screen
instructions and prompts. See ‘‘Flow Sensor Calibration’’ on page 7-5 for more information. Note that
information for the last flow sensor calibration is displayed next to the button.
