3.8 Measured Values Area
The Measured Values area is used to display the numerical data. The parameters include: End tidal
CO
2
(with AG module connected), Fractional CO
2
(with AG module connected), Peak Inspiratory
Pressure (PEAK), Plateau Pressure (PLAT) (user can configure this to display Mean Pressure (MEAN) or
PLAT (see
“Pressure Display” on page 3-35)), Positive End Expiratory Pressure (PEEP), I:E Ratio,
Expiratory Tidal Volume (Vt), Expiratory Minute Volume (MV),and Breath Rate (Rate), and Inspiratory
O
2
% (FiO
2
). (FIGURE 3-33)

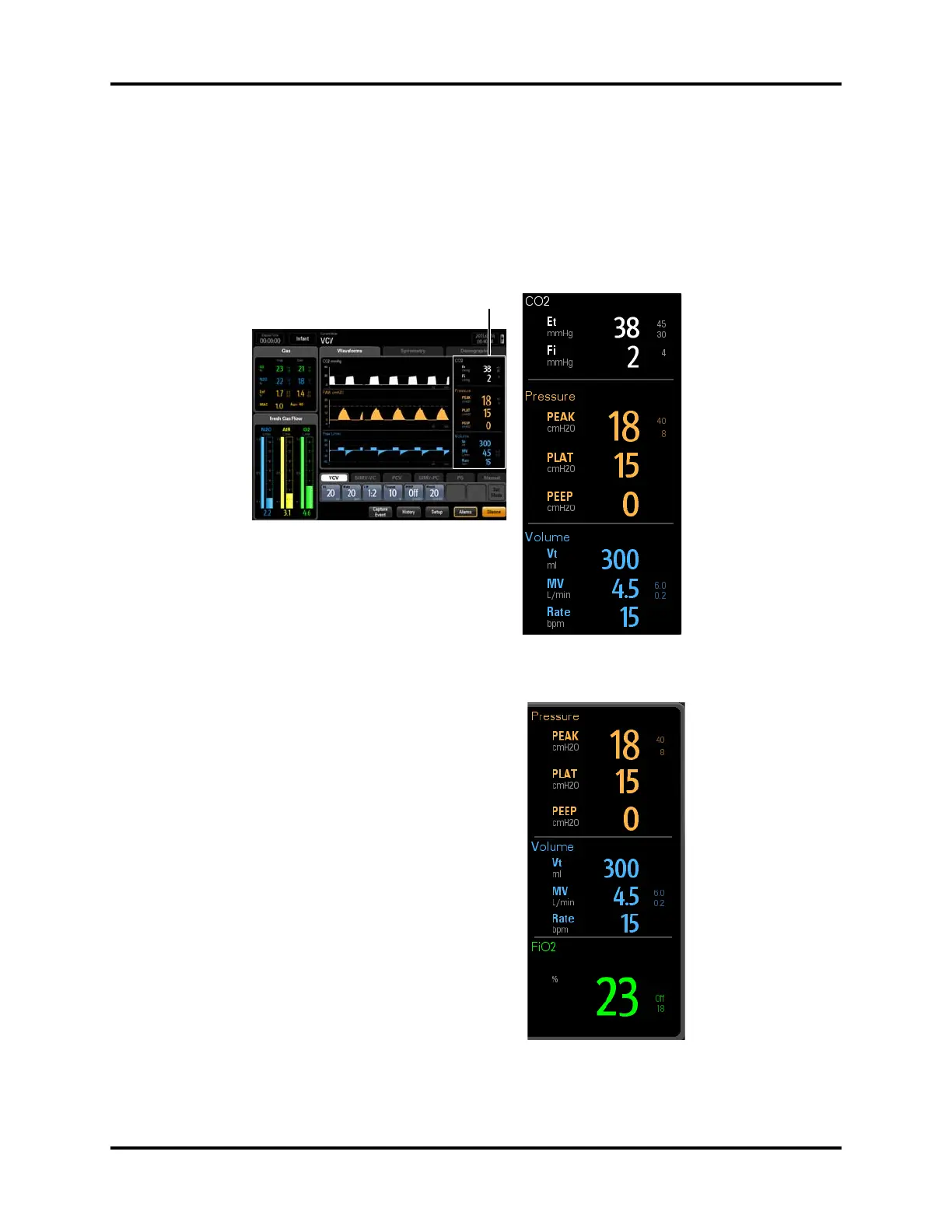

FIGURE 3-33 Measured Values Area (no AG module connected)
FIGURE 3-34 Measured Values Area (without AG module connected)
Measured Values Area

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
