A5/A3â„¢ Operating Instructions 046-003777-00 3 - 11
System Interface Fresh Gas Flow Display
3.3 Fresh Gas Flow Display
Displays real-time flowmeter levels for N
2
O, Air, and O
2
(see FIGURE 3-15).
The flowmeter numerics display a precision to two decimal digits for flows < 1 L/min and one
decimal digit for flows ≥ 1 L/min.
For the A5, the size (height) of the fresh gas flow tubes changes depending on whether the AG
module is connected as shown in FIGURE 3-15.

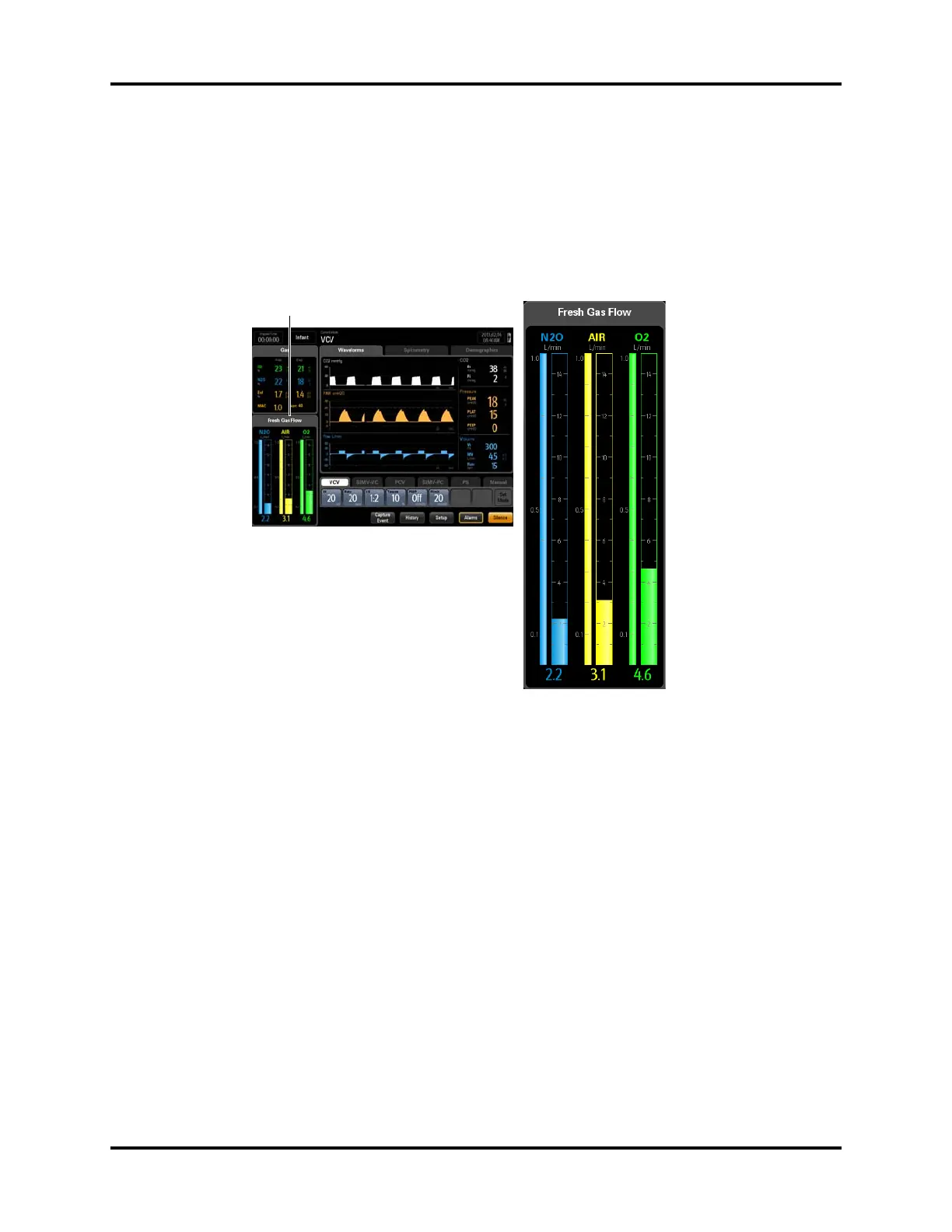

FIGURE 3-15 Fresh Gas Flow Display
