Ventilation Mode Tabs System Interface
3 - 22 046-003777-00 A5/A3™ Operating Instructions

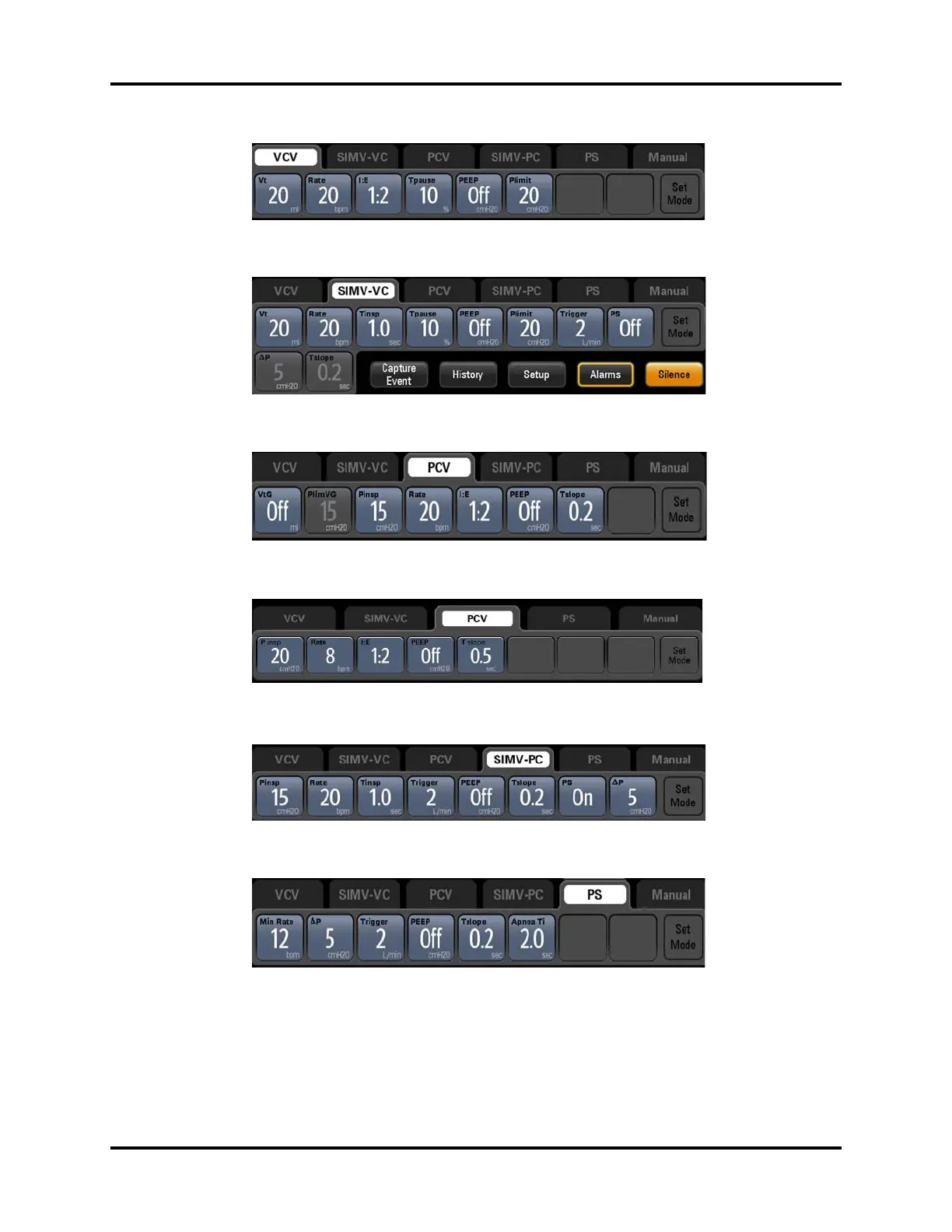

FIGURE 3-25 Ventilation Mode: VCV
FIGURE 3-26 Ventilation Mode: SIMV-VC
FIGURE 3-27 Ventilation Mode: PCV (A5 unit)
FIGURE 3-28 Ventilation Mode: PCV (A3 unit)
FIGURE 3-29 Ventilation Mode: SIMV-PC (A5 only)
FIGURE 3-30 Ventilation Mode: PS
