14-8

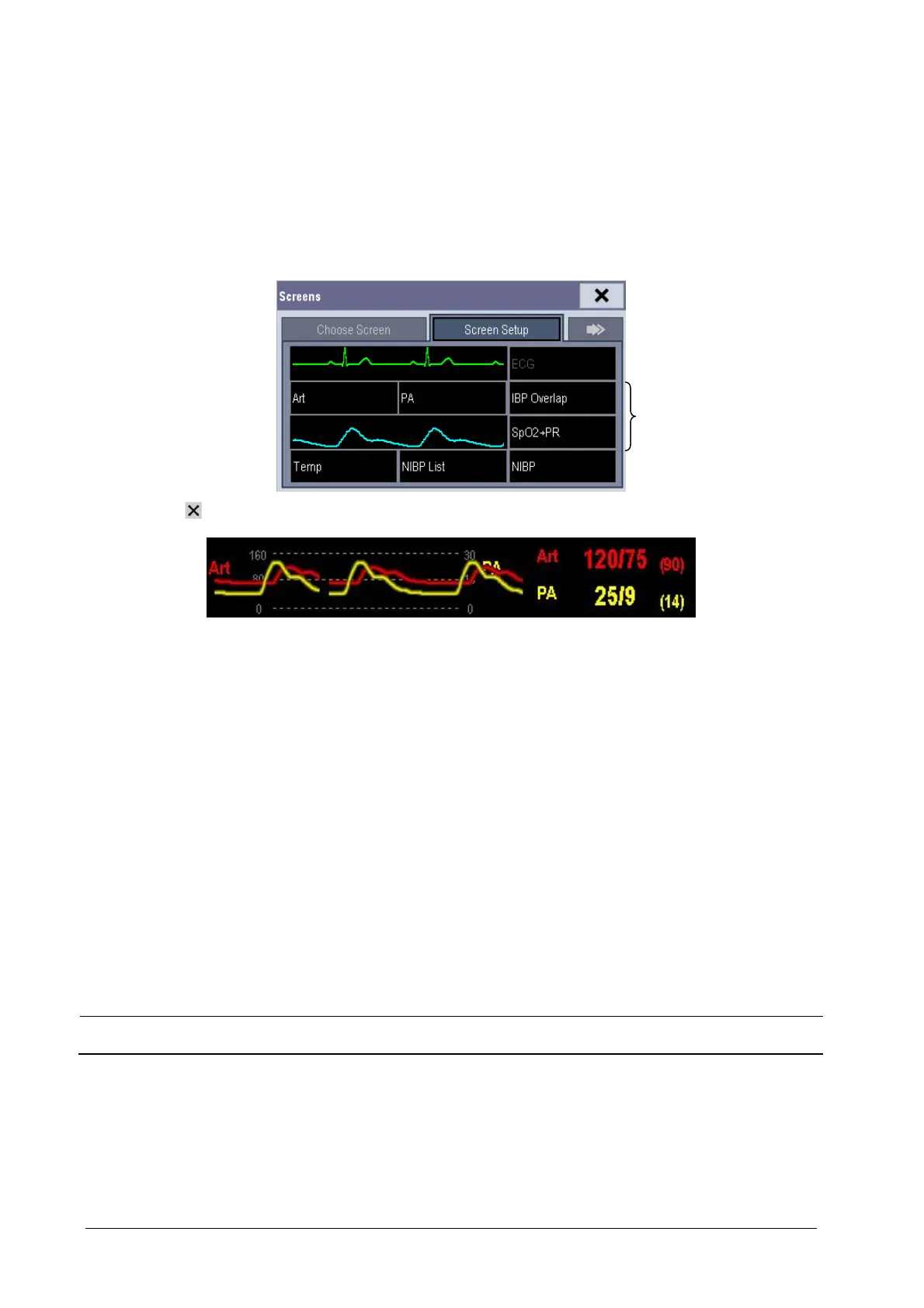

14.7 Overlapping IBP Waveforms
The IBP waveforms can be displayed together. To combine IBP waveforms,
1. Select [Main Menu]→[Screen Setup>>]→[Screen Layout>>] to access the [screens] window.
2. Select the [Screen Setup] tab.
3. In Area A, select [IBP Overlap] from the drop-down list, and then select the IBP waves to be overlapped on the left
side of the same line.
4. Select
to save the setting and exit the window. The main screen will display the overlapped IBP waves.
Selecting the overlapped IBP waveforms on the main screen pops up the [Overlapping Waveform Setup] menu, where
you can:
Set [Left Scale] and [Right Scale] and then set the scales for the overlapped waveforms. The left scale is for Art, LV,
Ao, FAP, BAP, UAP, and the arterial waveforms of P1~P4; the right scale is for CVP, ICP, LAP, RAP, UVP, and the
venous waveforms of P1~P4.
Set [CVP Scale] individually If CVP waveform is combined and CVP unit is different from IBP unit.
Set [PA Scale] individually if PA waveform is combined.
Set [Gridlines] to [On] or [Off] to show gridlines or not in the overlapped waveform area.
Select [Sweep] and then set the sweep speed for the overlapped waveforms.
Select [Filter] and then set the filter for the overlapped waveforms.
Note
CVP scale is changed together with right scale. The unit of CVP scale is consistent with CVP parameter unit.
Area A
