2.2 Main Unit

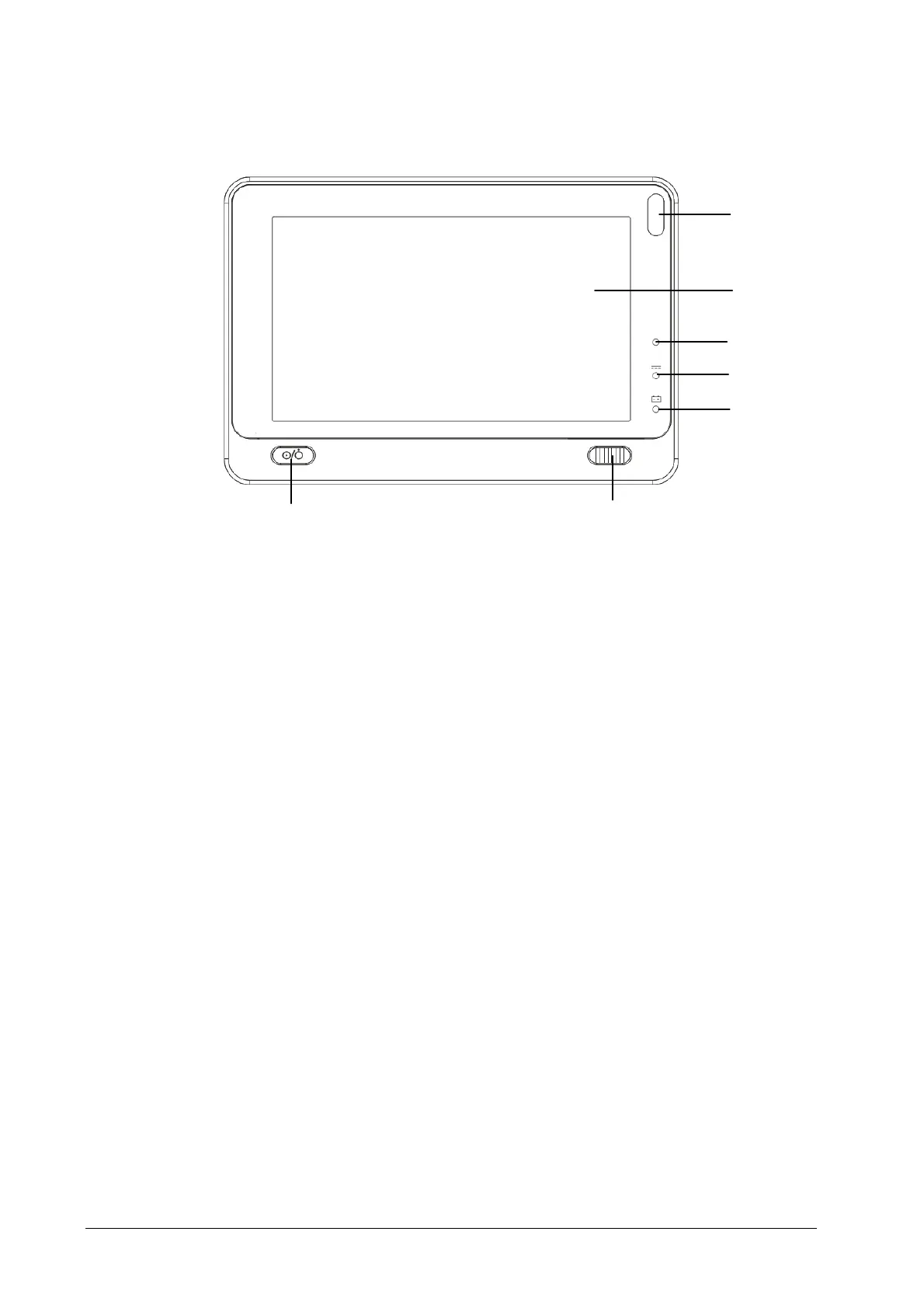

2.2.1 Front View
1. Alarm lamp
The Alarm lamp flashes in different color and frequency to match the alarm level2
2. Display Screen
3. Ambient light sensor
When [Brightness] is set to [Auto], the system automatically adjusts screen brightens according to the strength of
ambient light.
4. External power supply indicator
On: when external DC power supply is connected.
Off: when external DC power supply is not connected.
5. Battery indicator
On: when the battery is installed and the external DC power supply is connected.
Off: when no battery is installed, or the installed battery is malfunction, or no external DC power supply is
connected when the patient monitor is power off.
Flash: when the patient monitor operates on battery power.
6. Power On/Off Switch
Pressing this switch turns the patient monitor on.
When the monitor is on, pressing and holding this switch turns the monitor off.
An indicator is built in this switch. It turns on when the patient monitor is on and turns off when the patient monitor
is off.
7. Sliding switch:
When the T1 is not connected with the external display, sliding this switch rightwards can lock/unlock the
touch screen.
When the T1 is connected to the external display, sliding this switch rightwards switches screen display
between T1 and the external display.
7
6
4
5
2
3
1
