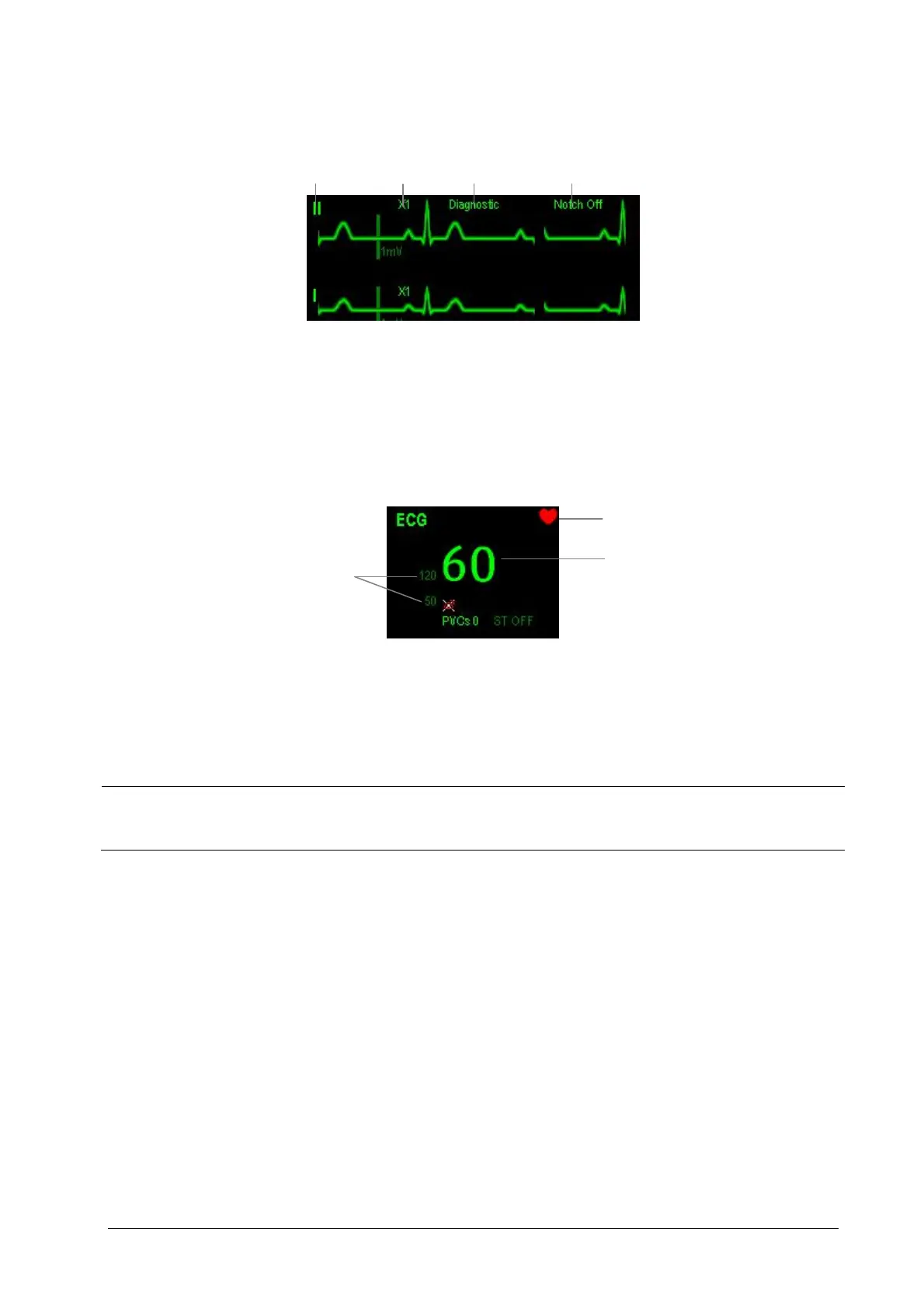

8.4 Understanding the ECG Display
Your display may be configured to look slightly different.
1. Lead label of the displayed wave
2. ECG gain
3. ECG filter label
4. Notch filter status
Besides, when a paced signal has been detected, the pace pulse marks “|” are shown on the ECG wave if the [Paced] has
been set to [Ye s ].
1. Current heart rate alarm limits
2. Heart beat symbol
3. Current heart rate
NOTE
 When an electro-surgery unit is in use, a question mark (?) may display on the right of the HR value. This
indicates there is high frequency interference
For 12-lead ECG display screen, refer to the section 8.10 12-Lead ECG Monitoring.
8.5 Changing ECG Settings
8.5.1 Accessing ECG Menus
By selecting the ECG parameter window or waveform area, you can access the [ECG Setup] menu.
1
1
3
2 3 4
2
