2.3.2 Right View
1. T1 handle multi-pin connector 2: connects the T1 handle and T1.
2. Pogo pins: used for communication between the T1 handle and external parameter module.
3. Infrared filter: used for communication between the T1 handle and external parameter module.
4. Contact: power input connector of the external parameter module.

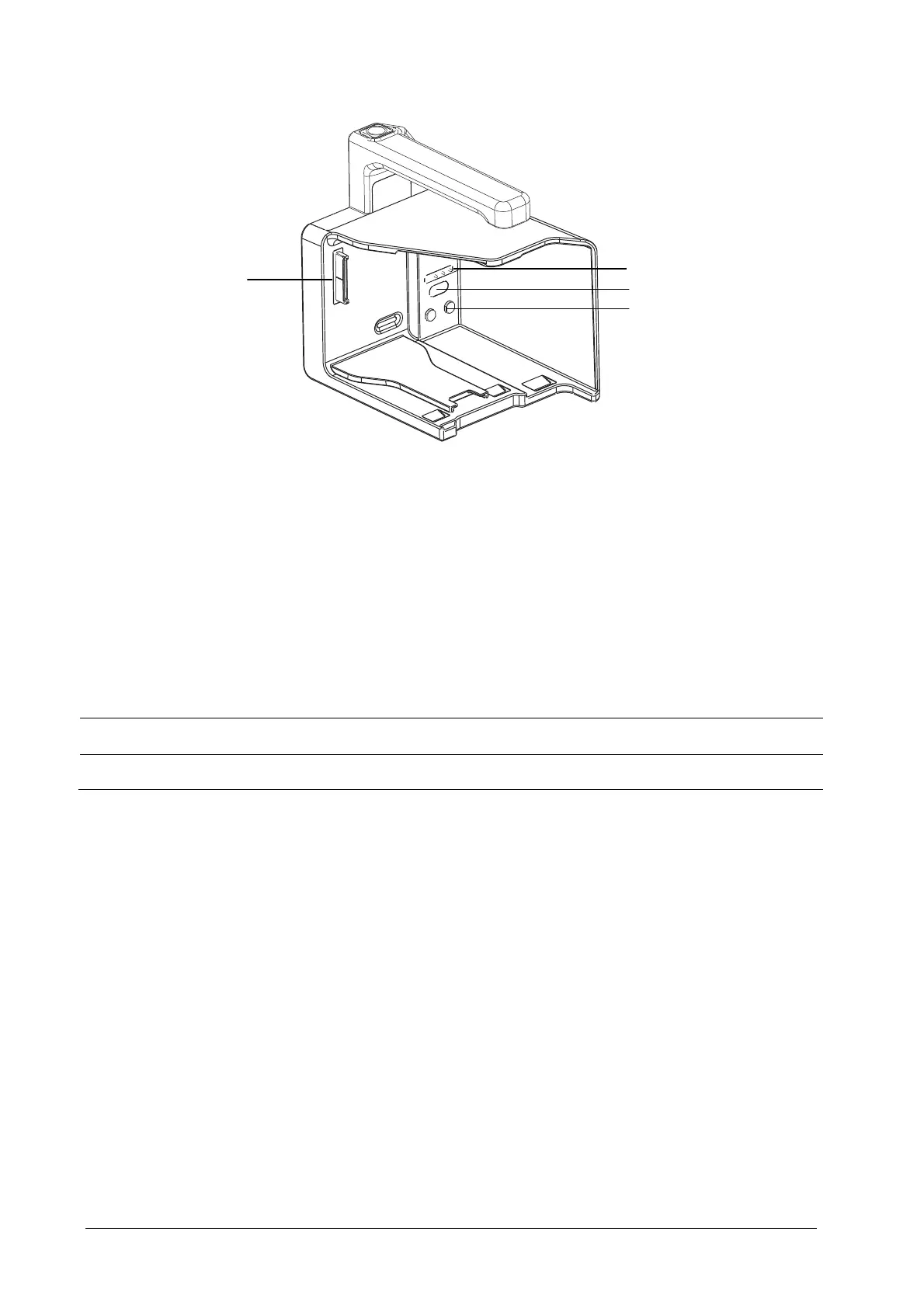

2.4 T1 Docking Station
T1 docking station is used to connect the T1 or T1 handle.
Caution
 The T1 docking station is part of the equipment. Use only the specified docking station.
1
3
4
2
