NOTE
To extend the lifetime of the watertrap and module, disconnect the watertrap and set the operating mode
to standby mode when CO
2
monitoring is not required.
15.3.2 Using a Microstream CO
2
Module
Connect the sampling line to the module and then connect the CO
2
components as shown below. The message [CO2
Sensor Warmup] is displayed. After warm-up, you can perform CO
2
measurements. The message [CO2 Sensor Warmup]
is displayed.
15.3.3 Using a Mainstream CO
2
Module
1. Connect the sensor to the module. The message [CO2 Sensor Warmup] is displayed.
2. After warm-up is finished, connect the transducer to the airway adapter.
3. Perform a zero calibration per 15.9 Zeroing the Sensor.
4. After the zero calibration is finished, connect the airway as shown below.
5. Make sure there are no leakages in the airway and then start a measurement.

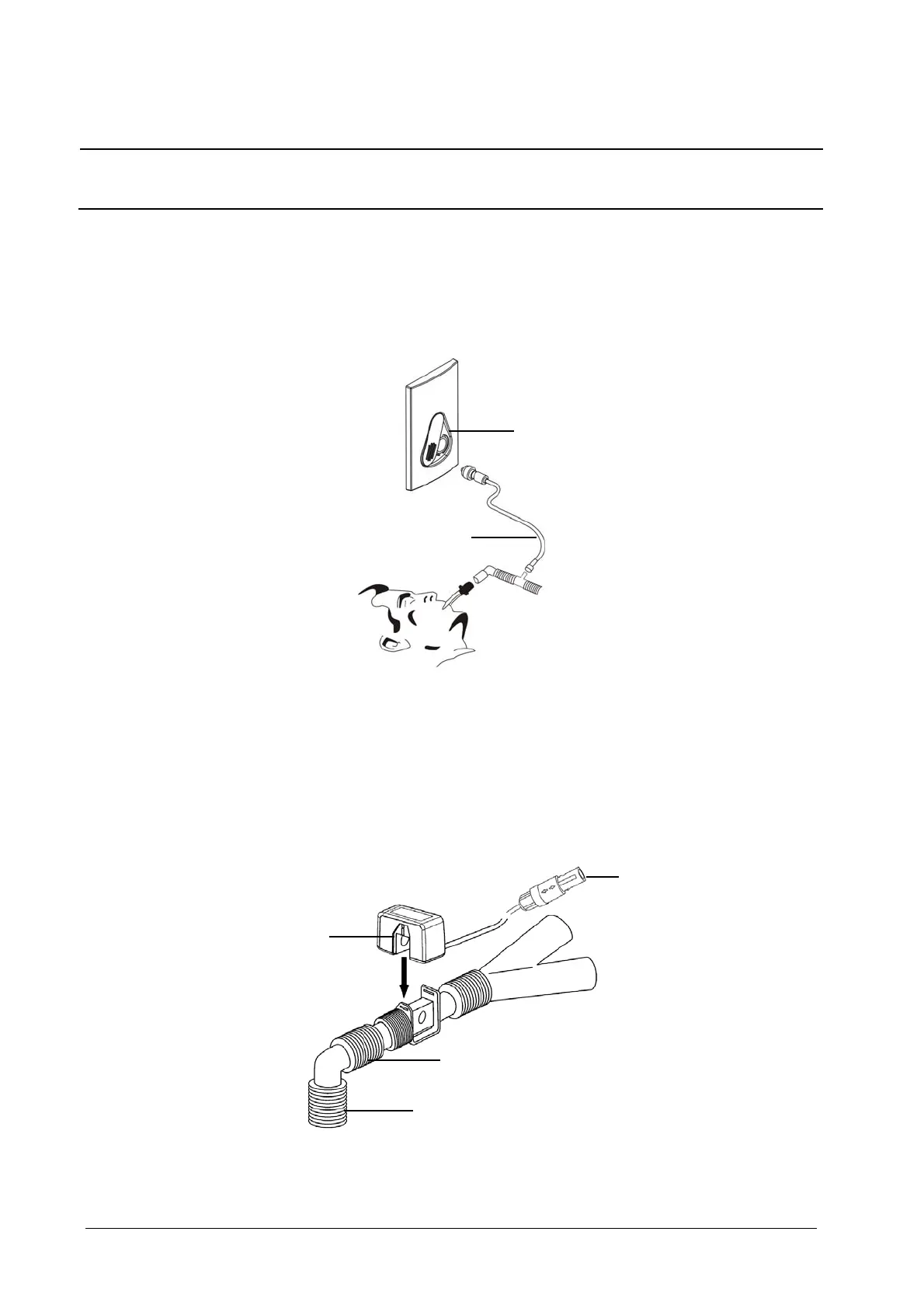

Sampling line
Connector for
sampling line
Airway adapter
Sensor
Connect to patient
Connector to monitor
To Next Page
