Mindray BeneView T1 - 15.2 Identifying CO2 Modules

15-2
15.2 Identifying CO
2
Modules

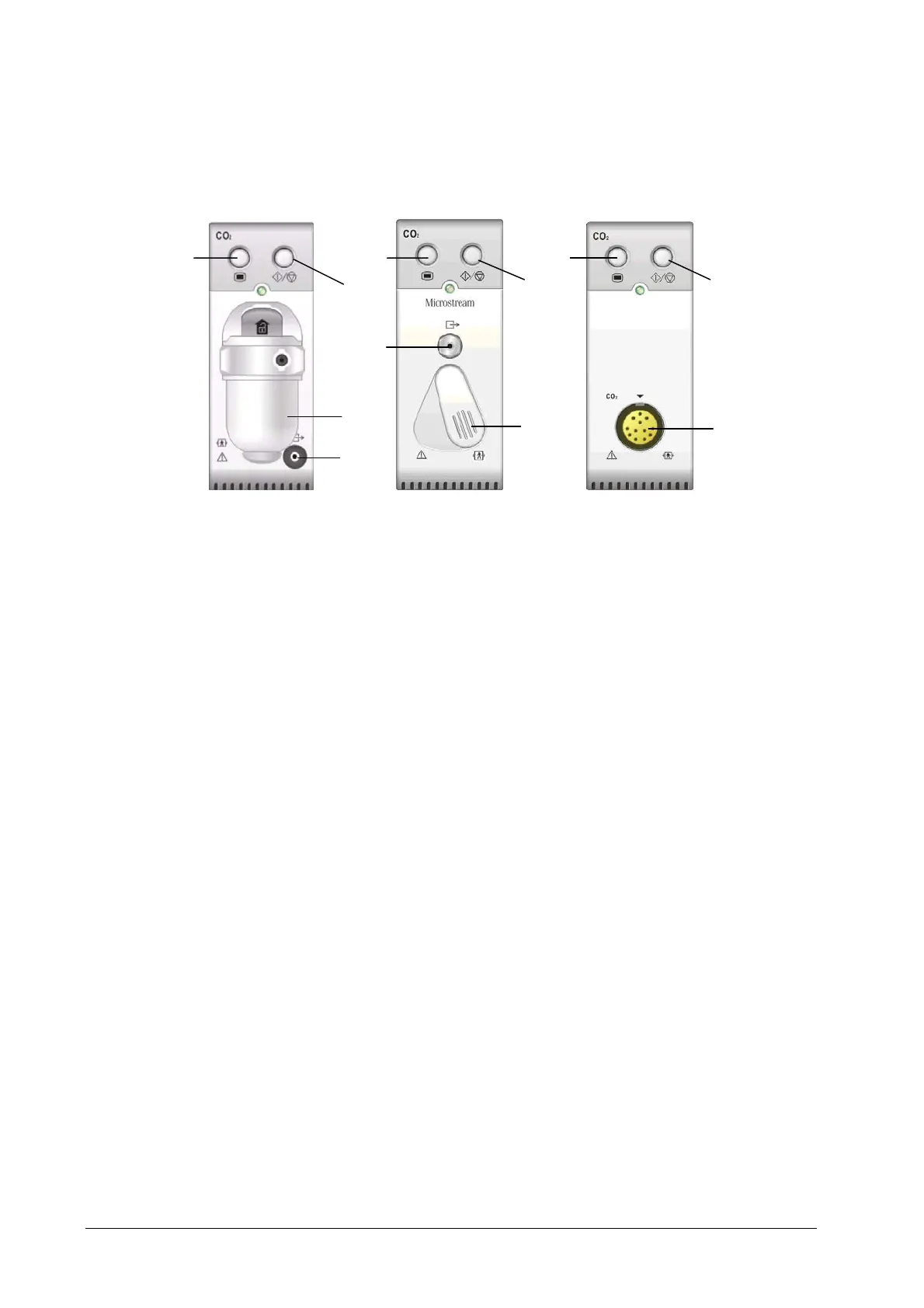

This monitor uses an external module to perform CO
2
monitoring. From left to right are sidestream CO
2
module,
microstream CO
2
module and mainstream CO
2
.
1. Setup key to enter the CO
2 setup menu
2. Measure/standby
3. Gas outlet
4. CO2 watertrap seat
5. Connector for sampling line
6. Connector for CO
2
transducer
5
2
4
3
1
1
1
2
2
3
6
