Mindray BeneView T1 User Manual

2-7

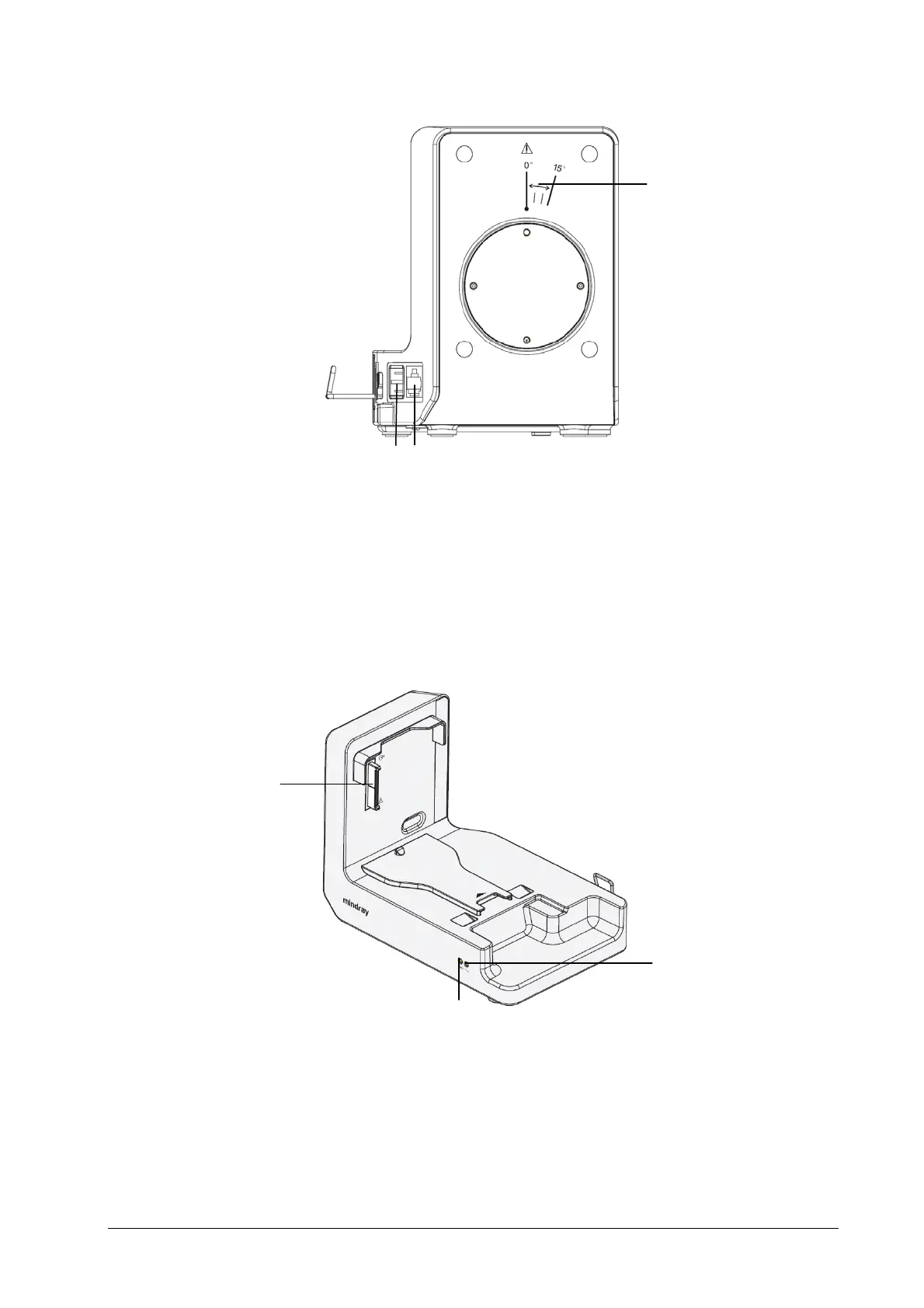

2.4.1 Left View
1. Symbol: indicates the direction and angle that T1 docking station can rotate when T1 docking station is fixed onto a
transverse or a vertical rod.
2. USB connector: connects USB devices, including the USB drive, mouse and keyboard.
3. Network connector: a standard RJ45 connector that connects the patient monitor to the CMS or CIS.
2.4.2 Right View
1. T1 docking station multi-pin connector: power input and communication connector of T1
2. Connection status indicator: it is on when the T1 is properly connected to the T1 docking station.
3. External power supply indicator: it is on when the external AC power supply is connected.
3
2
1
2
1
3
