Mindray BeneView T1 User Manual

2-8
5

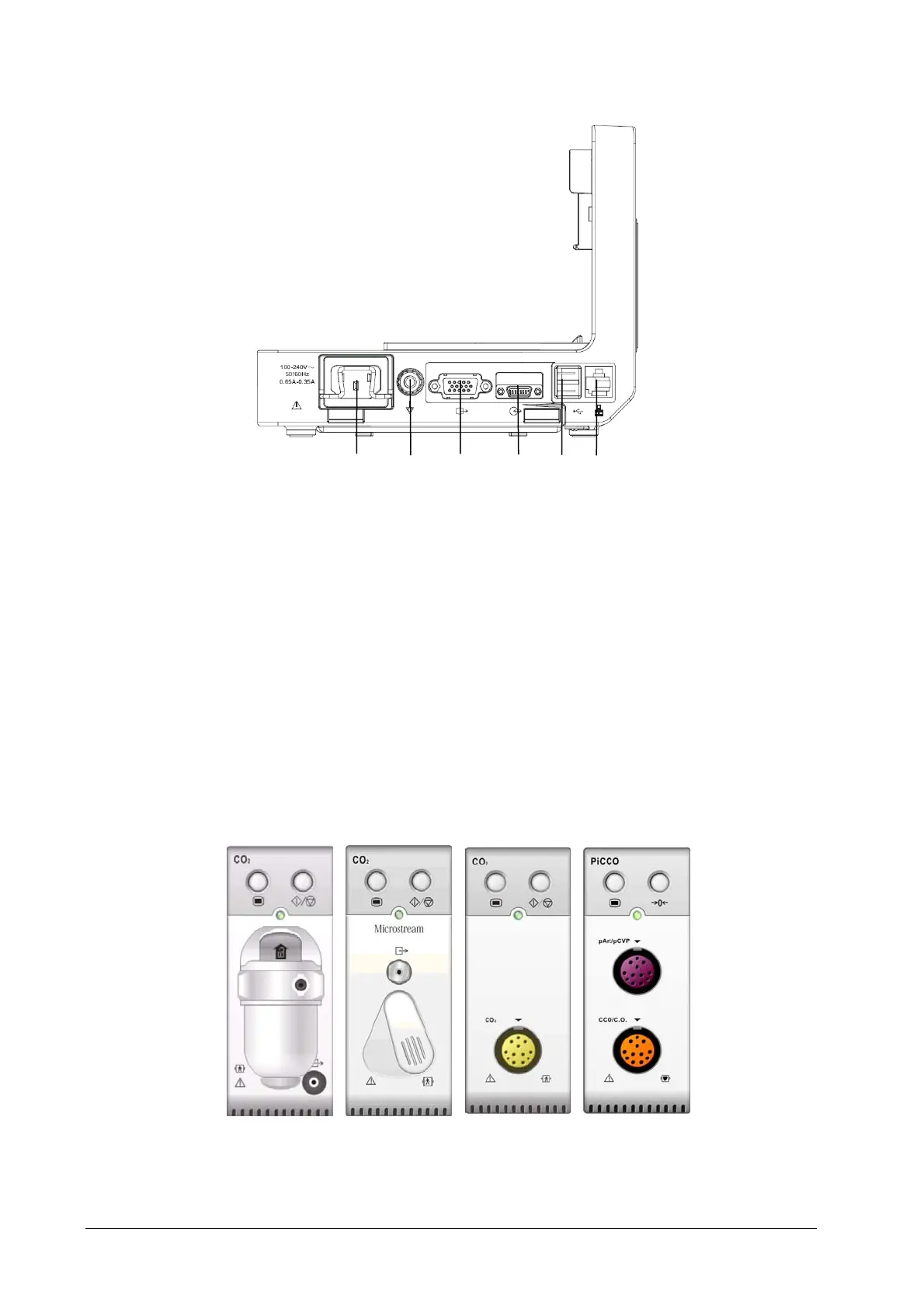

2.4.3 Rear View
1. AC power input
2. Equipotential grounding terminal
When using the monitor together with other devices, connect their equipotential grounding terminals together to
eliminating the potential difference between them.
3. VGA connector: connects the external display
4． External device connector: connects T1 to the host monitor through a cable.
5. USB connector: connects USB devices, including the USB drive, mouse and keyboard.
6 Network connector: a standard RJ45 connector that connects the patient monitor to the CMS or CIS.
2.5 External Parameter Modules
The monitor can connect the following external parameter modules to perform CO
2
monitoring, and CCO monitoring
through the T1 handle.
1
4
3
2
6
Sidestream
CO
2
module
Microstream
CO
2
module
Mainstream
CO
2
module
PiCCO module
