13.2.4 Verifying the Biopsy Guide Line
Adjusting the needle mark is necessary before every biopsy procedure.
1. Confirm that the needle-guided bracket has been installed securely in the correct
position.
2. Prepare a container filled with sterile water.
3. Place the head of the probe in the sterile water, and get a biopsy needle into the
needle guide.
4. When the biopsy needle appears on the image, confirm that the biopsy needle is
displayed at almost the same position as the selected needle mark.
WARNING:
1. Prior to each biopsy procedure, be sure to verify the
guide line.
2. If the needle is not consistent with the guide line, DO
NOT perform the biopsy procedure.
NOTE: You can perform guide line verification on a single live B/C image, and all
biopsy-irrelevant operations are forbidden.
Biopsy Guideline
Press <F11 > (Biopsy) to enter Biopsy.
îš„ Select biopsy bracket angle
If the needle-guided bracket supports more than one biopsy angle, you can select
the angle from the drop-down list.
îš„ Select guide line dot size
Click [Dot Size] to select the dot size among Small, Medium and Big.
Tips:
z The guide line is a dot line which consists of two kinds of dots, the distance
between two dots is depth dependent. Move the cursor onto the big dot, a
numeral, which represents the biopsy depth, is displayed.
z The biopsy guidezone adjusts along with image adjustments, such as image
inversion/rotations, zoom and depth changes.
z When the imaging depth and area are changed, the guide line will be adjusted.
Verification

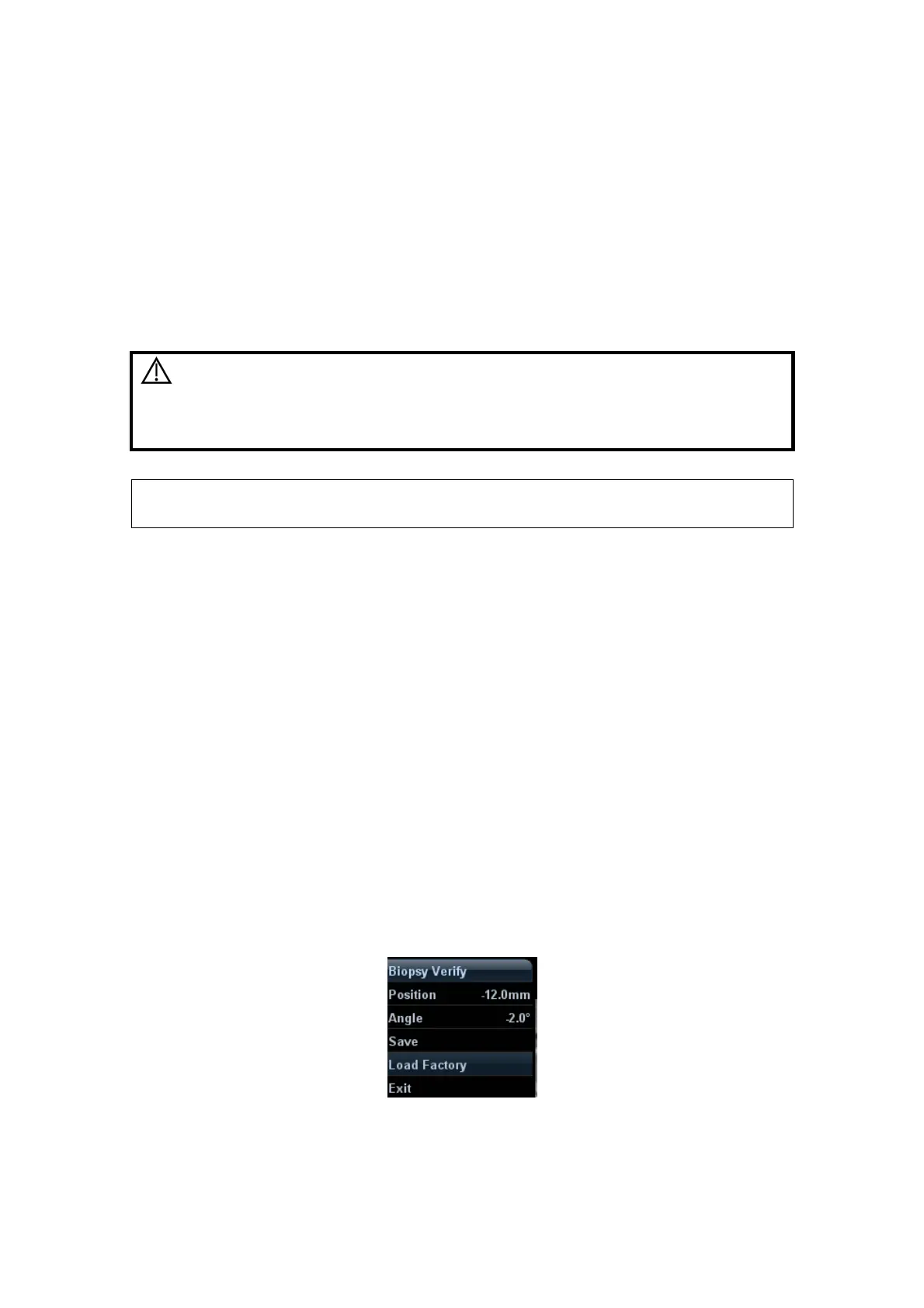

Click [Verify] in the Biopsy menu to open the Biopsy Verify menu, as shown in the figure
below.
îš„ Adjust guide line position
Move the cursor onto [Position], press <Set> key to move it linearly. This is operative
when there is only one guide line displayed.
