System Preparation 3-9
3.6.1 Connecting the USB Devices
WARNING:
DO NOT directly remove a USB memory device;
otherwise, the USB memory device and/or the system
may be damaged.
Available USB ports on the system:
1. Two USB ports on the physiological-signal panel.
2. Two USB ports on the I/O panel at the back of the system.
3. One USB port on the lower left corner of the control panel.
4. One USB port in the printer room, which is dedicated for digital video printer.
When connecting a USB memory device to the ultrasound system via a USB port,
you can hear a sound if it is connected successfully. You can see the symbol
in
the lower right corner of the imaging screen.
To remove the USB memory device:
(1) Click
to open the “Remove USB Device” dialogue box.
(2) Select the memory device to be removed.
(3) Click [OK] and you can hear a sound. There will be sound feedback when
remove the USB memory device.

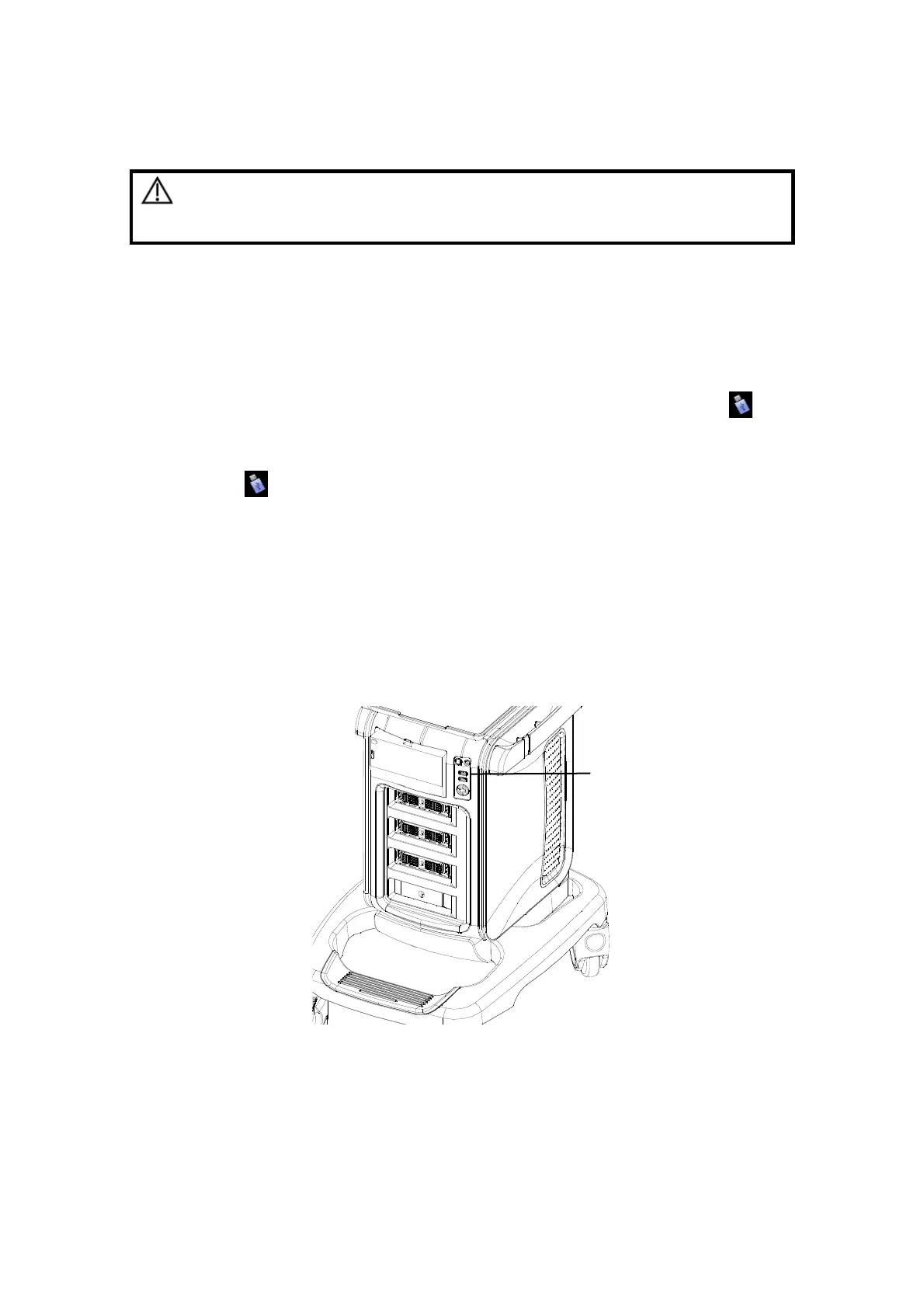

3.6.2 Connecting a Footswitch
Connection
Directly insert the USB port of the footswitch to the system applicable USB ports.
Function setting
The function of the footswitch can be set, for details, please refer to “12.1.6 Key
Configuration”.
USB port
To Next Page
