Loading and Transporting the DC-N3 Series Unit in a Van C-1
Appendix C Loading and
Transporting the DC-N3
Series Unit in a Van
C.1 Overview
When moving or transporting the unit without original packing materials, follow the instructions and
precautions below to ensure maximum safety for personnel, the system and other equipment.
Minimum size for the vehicle door: 700mm (W)*550mm (H)
Minimum size for the vehicle capacity (inside):700mm(L)*550mm(W)*1150mm(H)
Tools necessary: 048-002257-002122 LCD bumper, 1 peace
Strap, several peaces
C.2 Securing the Unit

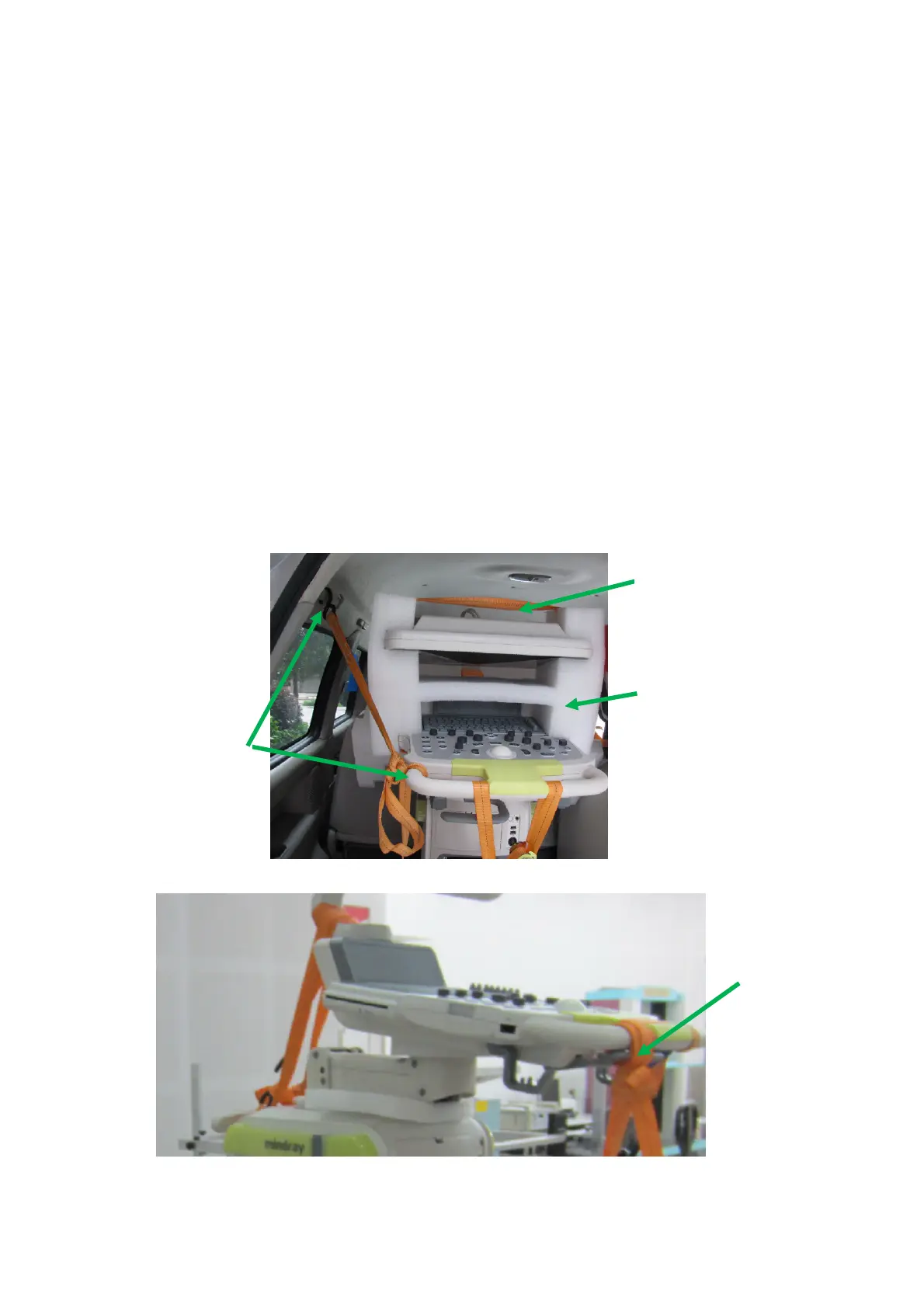

Figure 1 Securing the Unit
Figure 2 Securing the Unit (cont’d)
Install the bumper onto the
LCD monitor the control
panel as shown in the figure
Use the strap, with one
end tied to the front
handle, the other end to
a proper position of the
vehicle.
Install the bumper onto the
LCD monitor and the control
panel, then strap the bumper
together with the LCD
monitor and control panel
Tighten the
control table
adjusting
handle with
the front
handle using
a strap
To Next Page
