Mindray DC-N3S

C-2 Loading and Transporting the DC-N3 Series Unit in a Van

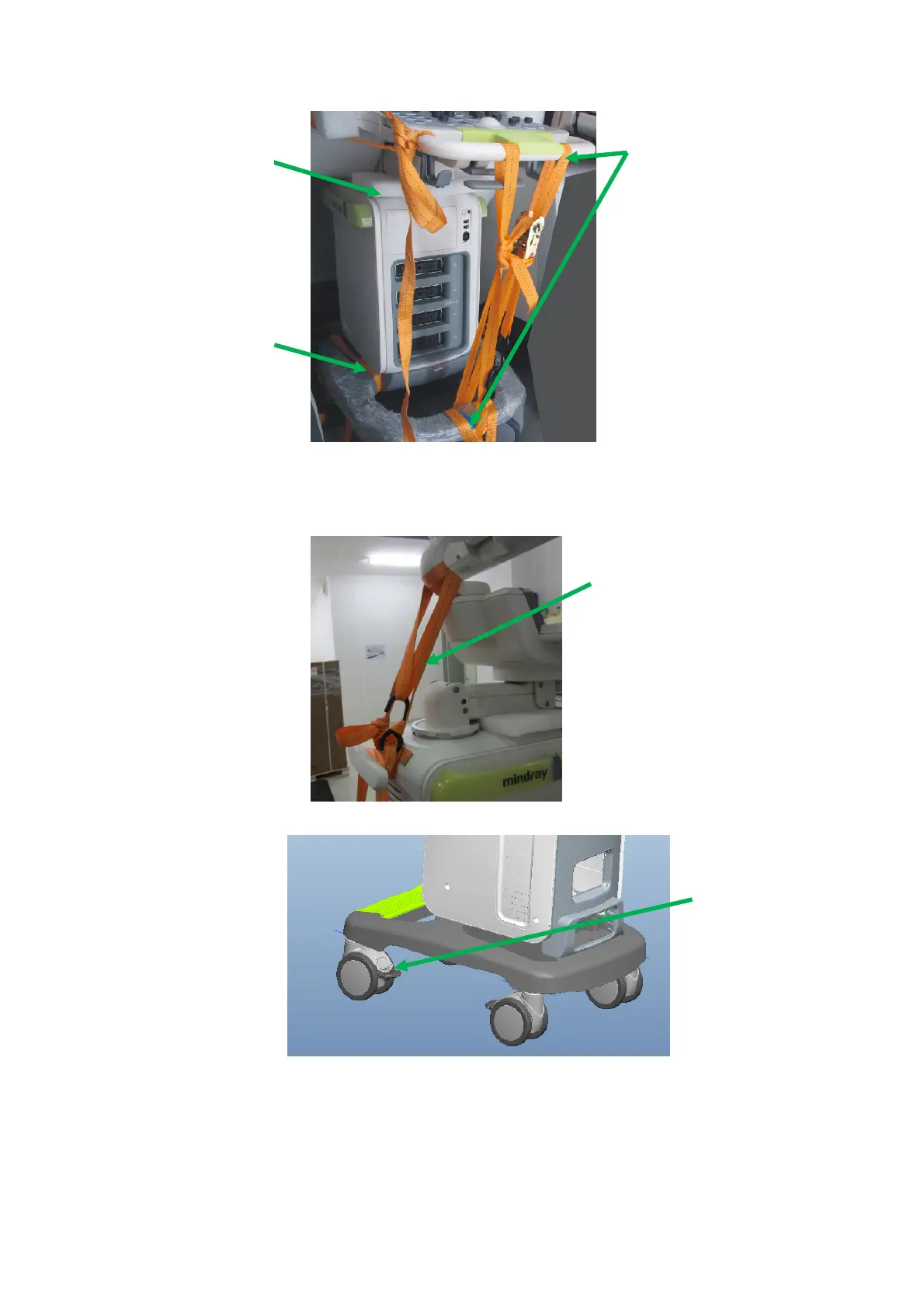

Figure 3 Securing the Unit (cont’d)
C.3 Details Description
Figure 4 Details
Figure 5 Details (cont’d)
Tighten the front
handle with the base
usin
g
a stra
p
Put a bumper of
30mm in thickness
(or use other soft
material), adjust the
support arm to
anchor it on the
bumper
Tighten the base to
the proper position
of the vehicle using
the strap, making
sure the unit can’t
be moved in any
direction.
Brake off the
four casters
Use a strap to fix
the upper part of the
unit
