2-16 System Overview
2.11 Symbols

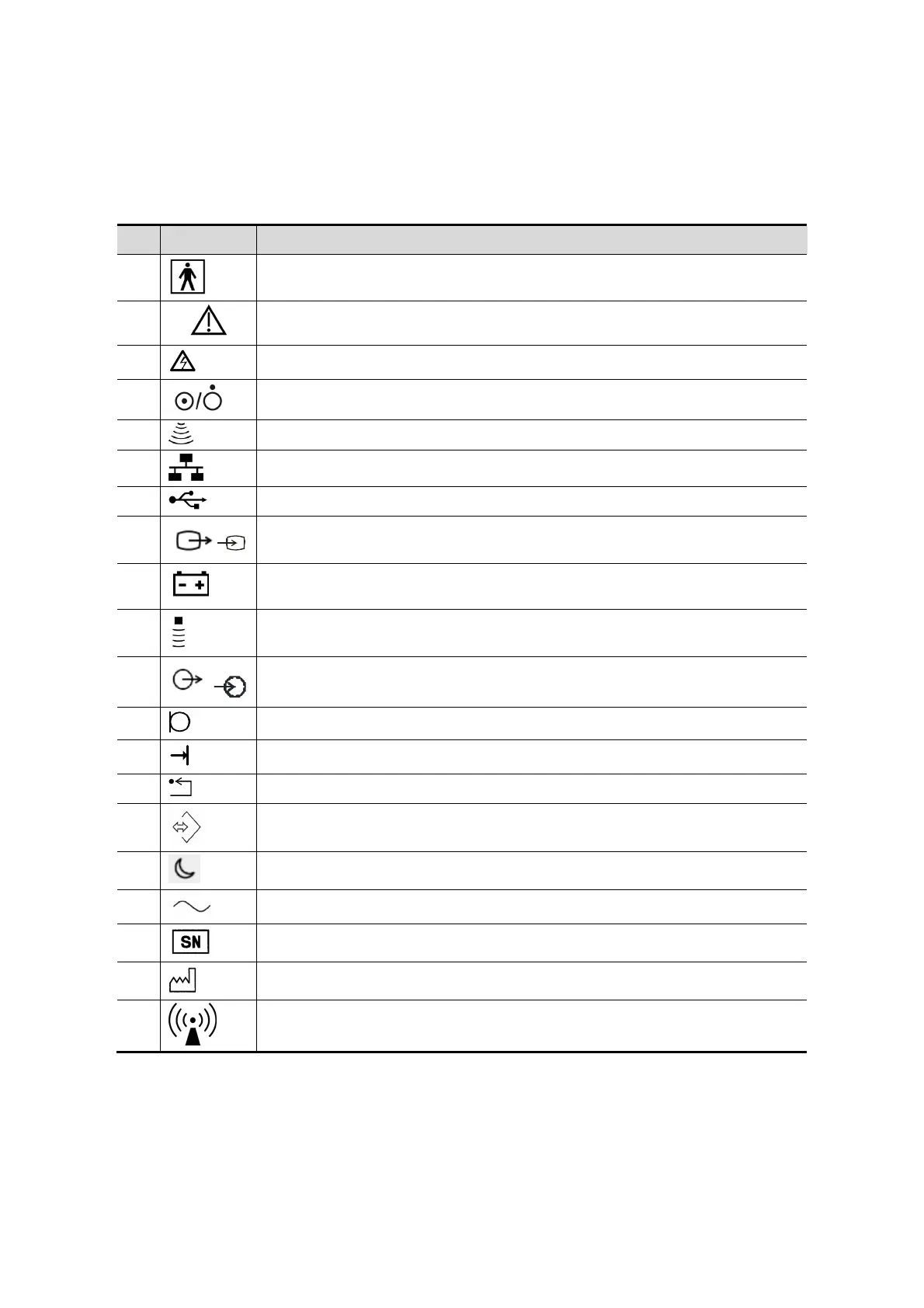

This system uses the symbols listed in the following table, and their meanings are explained
as well.
No. Symbol Description
1
Type-BF applied part
2
Caution
3
Dangerous voltage
4
Power button
5
Probe port
6
Network port
7
USB port
8
S-VIDEO signal interface;
VIDEO signal interface
9
Battery Status Indicator
10
Pencil probe port (reserved)
11
Audio signal
12
Microphone input jack
13
Remote control port
14
System reset
15
Hard disk status indicator
16
Standby status indicator
17
AC power supply status indicator
18
Product serial number
19
Manufacture date
20
Non-ionizing radiation, RF emitting devices included in the device and system.
