(4) Hold the transducer with one hand, and then separate the needle-guided bracket
from the transducer.

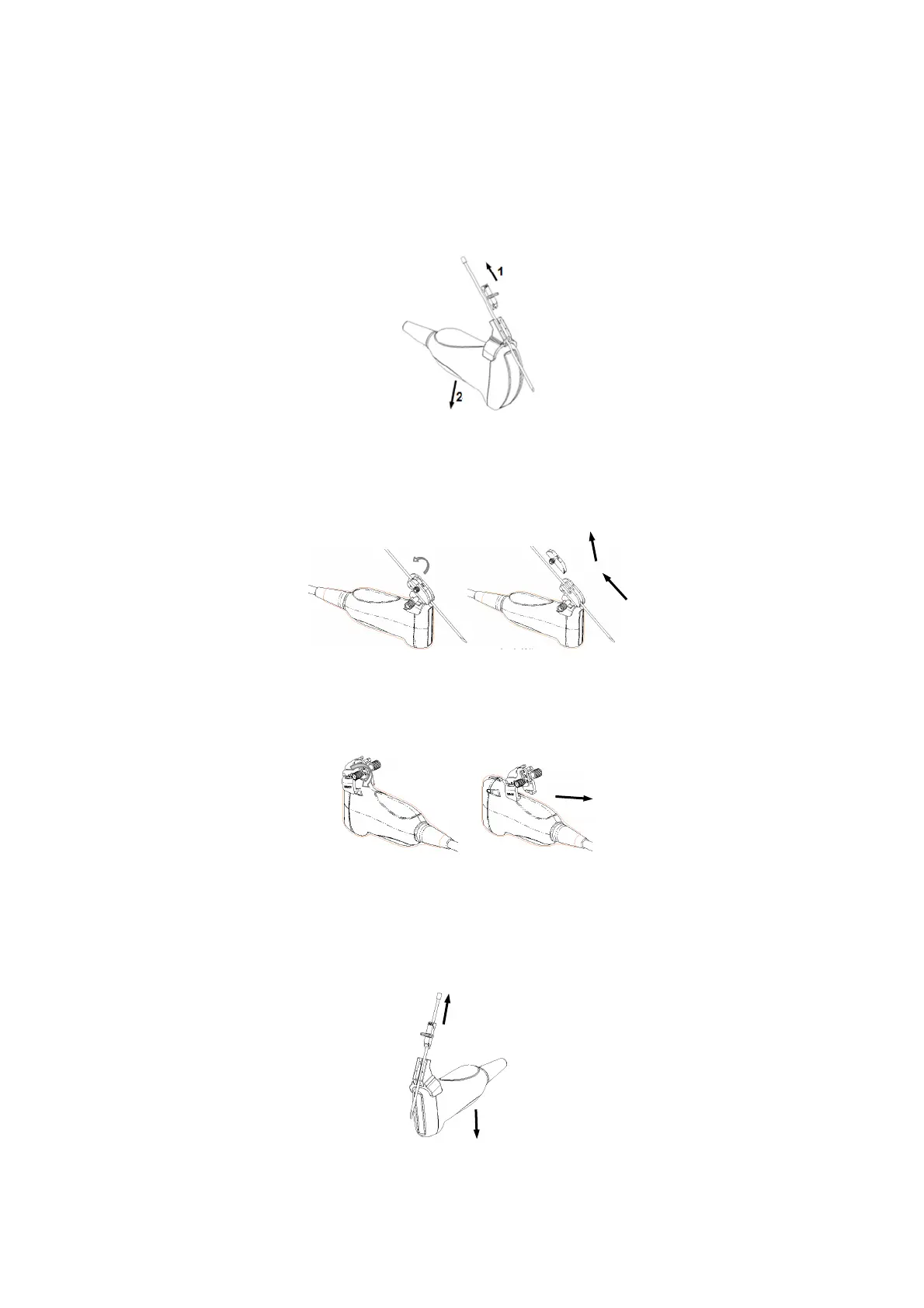

Plastic needle-guided bracket:
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the
needle.
(3) Remove the support of needle-guided bracket from the probe.
 NGB-007
Metal needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along
the direction of the needle’s tail.
(2) Separate the residual part of the needle-guided bracket and the probe from the
needle.
(3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from
the probe.
Plastic needle-guided bracket:
(1) Remove the guiding block slightly along the direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the probe from the
needle.
(3) Remove the support of needle-guided bracket from the probe.
1
2
