A-6 Barcode Reader
A.1.5 Scanning in Hands-Free Mode

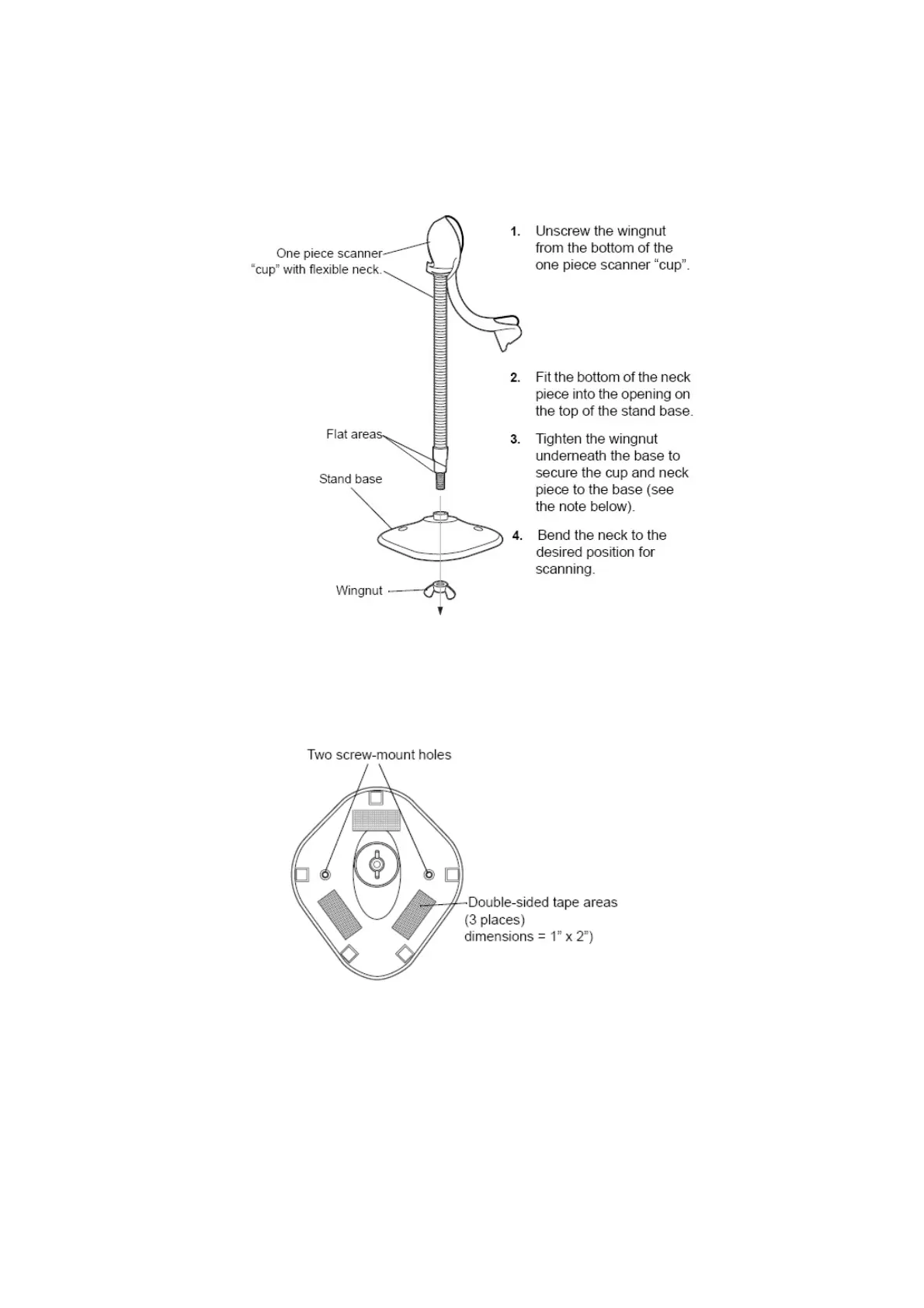

Assembling the Intellistand
NOTE Before tightening the wingnut under the base, ensure that the flat areas on the flexible
neck fit securely in the grooves in the base.
Mounting the Stand (optional)
You can attach the base of the reader’s stand to a flat surface using two screws or double-
sided tape (not provided).
îš„ Screw Mount
(1) Position the assembled base on a flat surface.
(2) Screw one #10 wood screw into each screw-mount hole until the base of the stand is
secure.
îš„ Tape Mount
(1) Peel the paper liner off one side of each piece of tape and place the sticky surface
over each of the three rectangular tape holders.
(2) Peel the paper liner off the exposed sides of each piece of tape and press the stand
on a flat surface until it is secure.
