8.8.2 Enabling QT/QTc Monitoring
The QT monitoring function is disabled by default.
To enable the QT function:
1. Select the ECG parameter window or waveform area to enter the [ECG Setup] menu.
2. Select the [QT Analysis >>] tab.
3. Set [QT Analysis] to [On].
8.8.3 Displaying QT Numerics and Segments
To display QT numerics and Segments:
4. Select [Main Menu][Screen Setup >>][Screen Layout >>].
5. Select the parameter area where you want to display the QT numerics, and then select
[QT].

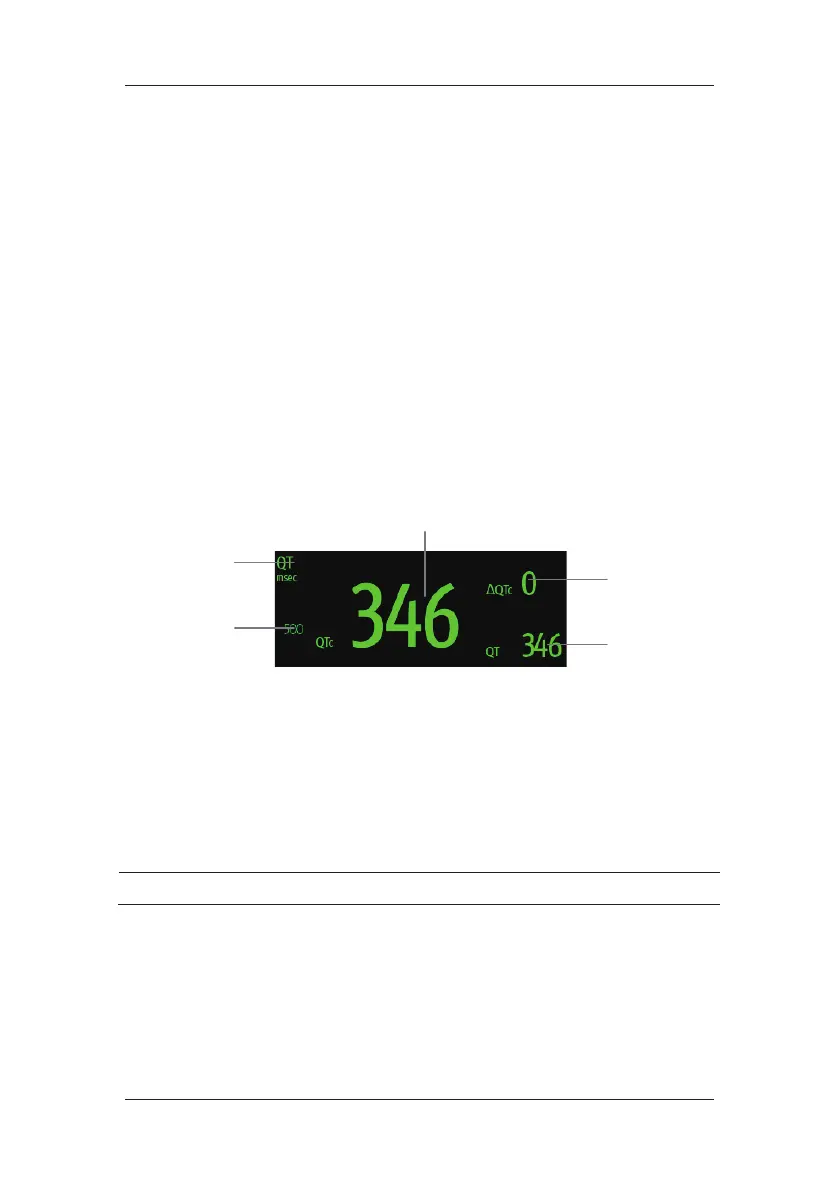

The following picture shows the QT parameter area.
(1) QTc alarm limit (if QTc alarm is off, the alarm off symbol is displayed)
(2) Parameter label
(3) QTc value
(4) QTc value (the difference between the current and baseline QTc values)
(5) QT value
NOTE
z The display of the QT numeric area differs as related settings change.
(1)
(2)
(5)
(4)
(3)
