Kaleido-IP
The Kaleido-IP can monitor and display HD and SD television programs distributed over IP,
across two HDTV displays. It supports MPEG-2 and H.264/AVC compressed video, and the
AAC, AC-3, MPEG-1, MPEG-2, MPEG-4 AAC LC, and MPEG-4 HE-AAC compressed audio
formats, within unencrypted DCII, DVB, or ATSC streams. In the case of HD signals, the
Kaleido-IP X300 models support concurrent decoding of up to 24
MPEG-2, or up to
16
H.264 video programs. In the case of SD signals, they support concurrent decoding of up
to 64
MPEG-2, or up to 32 H.264 programs. The compact Kaleido-IP X100 model supports
concurrent decoding of up to 8
HD MPEG-2, up to 6 HD H.264, up to 24 SD MPEG-2, or up to
12
H.264 programs.
Kaleido-Modular KMV-3901/3911
The Kaleido-Modular KMV-3901/3911 is an expandable, 8-input, dual-output multiviewer
(3Gbps/HD/SD) on one Densité Series card. Hosted in a Densité
3 frame, the
KMV-3901/3911 is the most space- and energy-efficient multiviewer system, with up to
20
multiviewer outputs per 3 RU frame, or up to 288 multiviewer outputs when connected
to an upstream router.

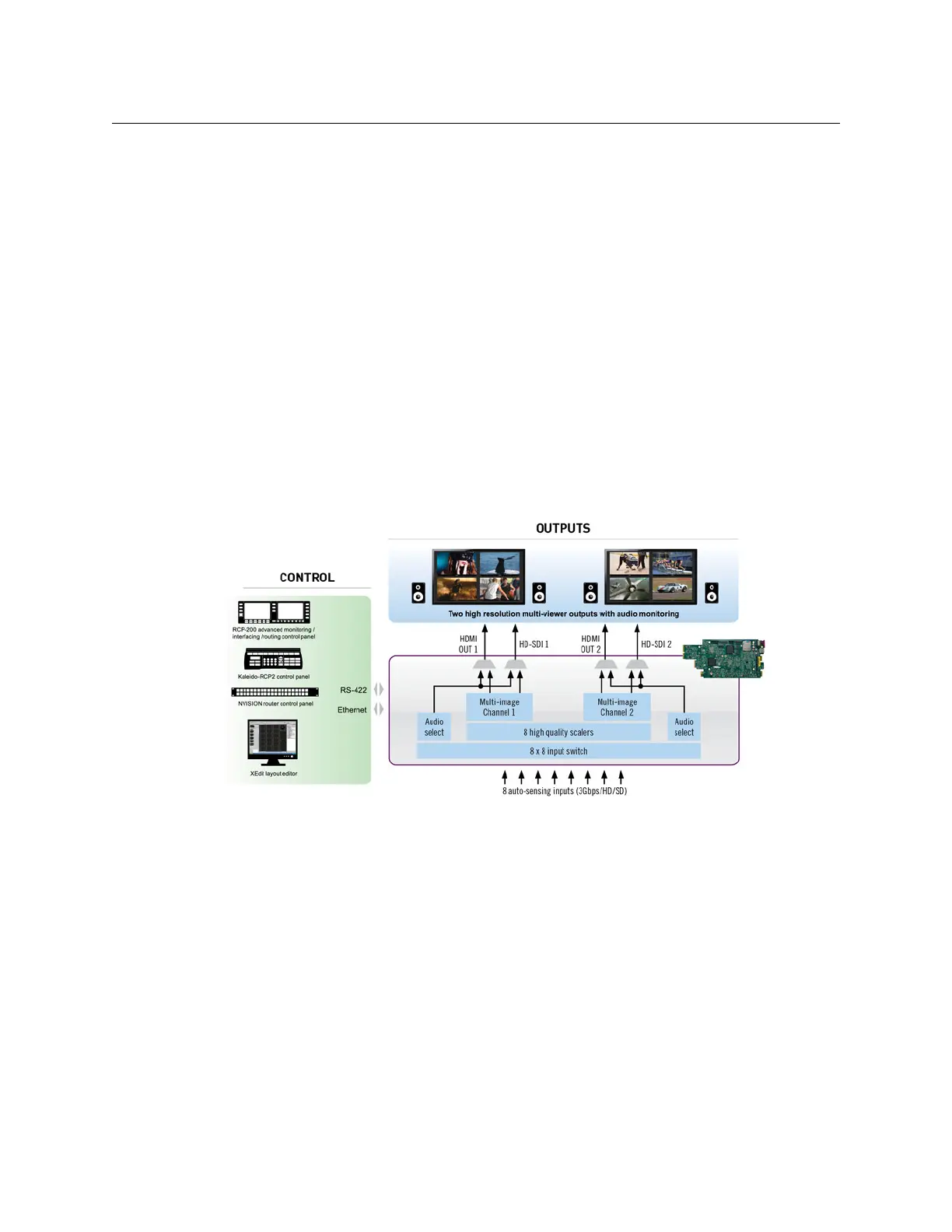

Overview of single card functionality
Kaleido-Modular KMV-3901/3911 Features
With its unmatched space and energy efficiency, Kaleido-Modular is ideal for production
monitoring in trucks. The multiviewer system integrates tightly with the highly space-
efficient NVISION 8288 Truck router (288
× 576 in 10 RU), as well as Densité signal
processing cards, and third-party production switchers. Control of a highly integrated
system is simplified with the RCP-200 panel, which can operate the router and multiviewer,
as well as signal processing and distribution cards.
The KMV-3901/3911 provides a subset of the features of the Kaleido-X (4RU) and (7RU)
models:
• Four or eight auto-sensing 3Gbps/HD/SD video inputs, one or two independent HDMI
outputs
