Cluster system overview
Cascade

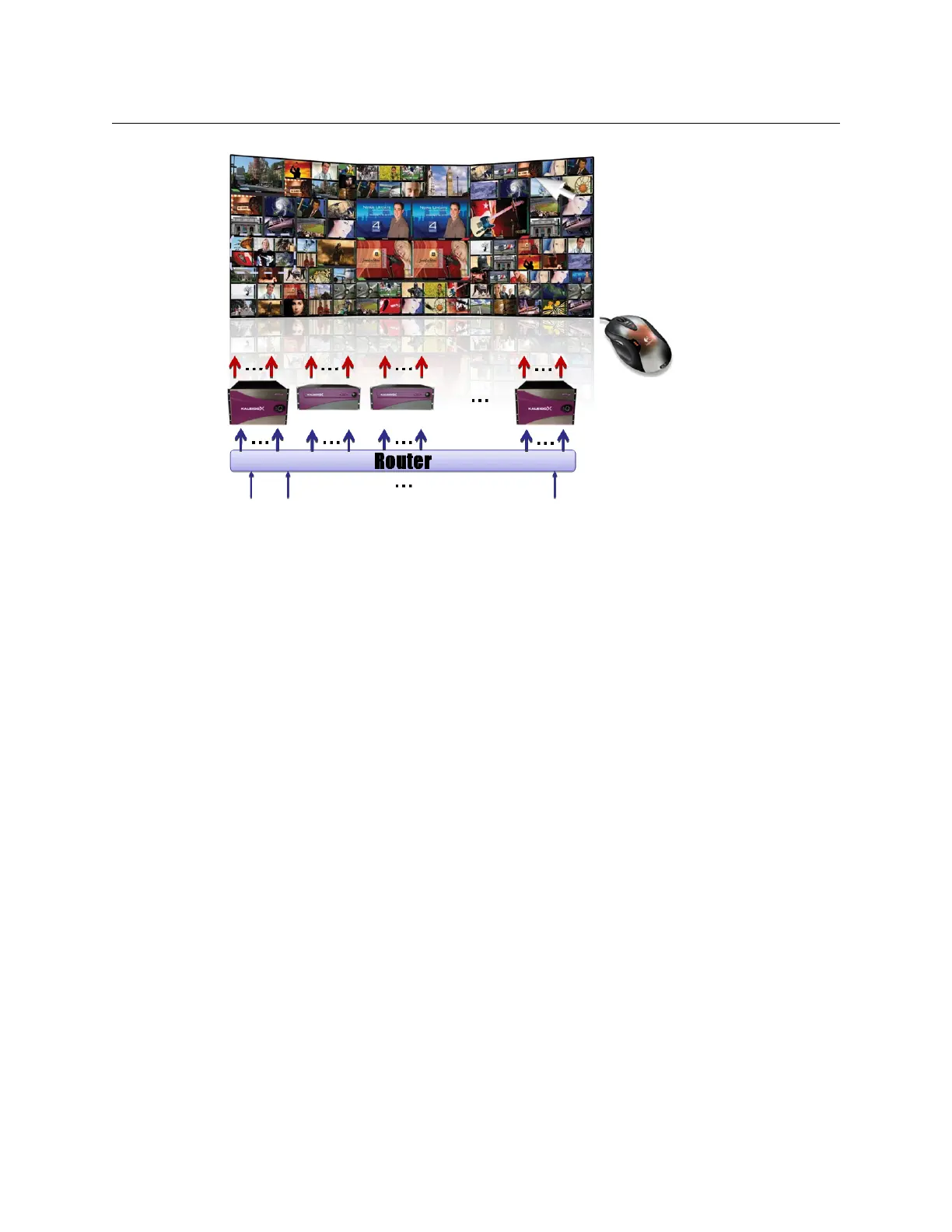

It is possible to configure up to three Kaleido-X16 or KMV-3901/3911 multiviewers as a
cascade system. Unlike the cluster, whose purpose is to increase the number of output
heads in a room, the cascade increases the maximum number of inputs that can be
displayed to a single monitor wall display. It is also possible to configure a hybrid cascade
system, involving one Kaleido-IP and one Kaleido-X, or one Kaleido-IP and one Kaleido-X16,
to monitor both baseband and IP sources at once, on the same monitor wall display. For
more information, refer to the appropriate Cascade Step-by-Step Configuration guide,
available on the Kaleido-X DVD, and from Miranda’s support portal.
Detailed Directions
Verifying your System Configuration
Verifying a Multiviewer’s Internal Statuses and Options
To perform a system verification
1 You can check internal system statuses via the Web-based XAdmin application. There
are two ways to access XAdmin:
Method 1: Use XEdit on a client PC to start the XAdmin application (see Installing XEdit,
on page 415). On the Configure menu, click Use XAdmin. This will open your default
Web browser.
Method 2: From a workstation on the same subnet, open a Web browser window and
type the multiviewer’s IP address in the address bar.
