6
Getting Started
Kaleido-X16
• Video signals can be repeated in up to eight windows, and scaled up to 1920 × 1200
pixels
• Audio signal, and video time code data can be extracted for on-screen display
• A reference signal from a REF-1801 Densité card can be used to minimize processing
delay, and reference clocks on the monitor wall
• Expansion through combination with upstream router
• DXF-200 extension module simplifies long runs to monitors from Densité frame, and is
a single fiber solution for supporting high-resolution (1920
× 1200) displays over
distances of up to 1000
m (3280 ft)
• Choice of multiviewer remote control panels: simple Kaleido-RCP2 and advanced RCP-
200 with router control
• Control by NVISION control panel and NV9000 system controller
• Super silent for installation within studios and control rooms

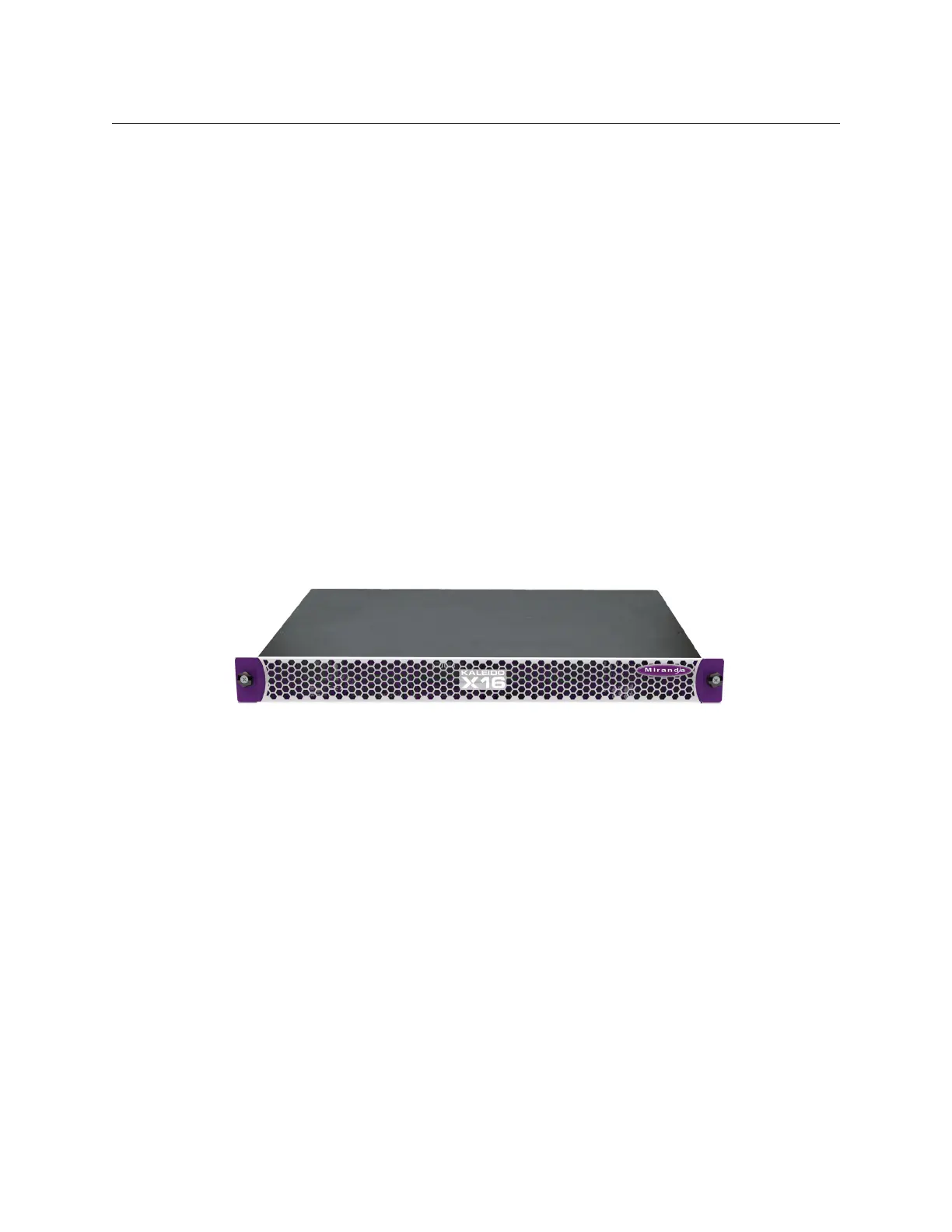

Kaleido-X16
The Kaleido-X16 is a compact, ultra-quiet multiviewer with 16 inputs, and one or two HDMI
outputs. It offers the highest level of image quality, and can be used with 3Gbps/HD/SD and
Analog video. It is ideal for small control rooms, although it can also be paired with routers
to create the very largest combined multiviewer and routing systems.
There are two models: Kaleido-X16-S (single head) and Kaleido-X16-D (dual head).
