PRO-2000 Installation and Operation Manual
9
7.16" [181.97mm]
J2
J2
INPUT FREQUENCY:
INPUT VO LTAGE:
POWER LIM ITED:
FUSE RATING:
OUTPUT
AMPS
V.AC
HZ
PART NO:
SERIAL NO:
MODEL NO:
J1J2
J7
J5
21.00" [533.40mm]
1.20" [30.48mm]
23.10" [586.74mm]
46.76" [1187.60mm]
28.20" [716.28mm]
0.90" [22.86mm]
30.00" [762.00mm]
90.00°
29.68" [753.92mm]
E
F
U
F
.
F
.
U
S
E
.
F
U
S
E

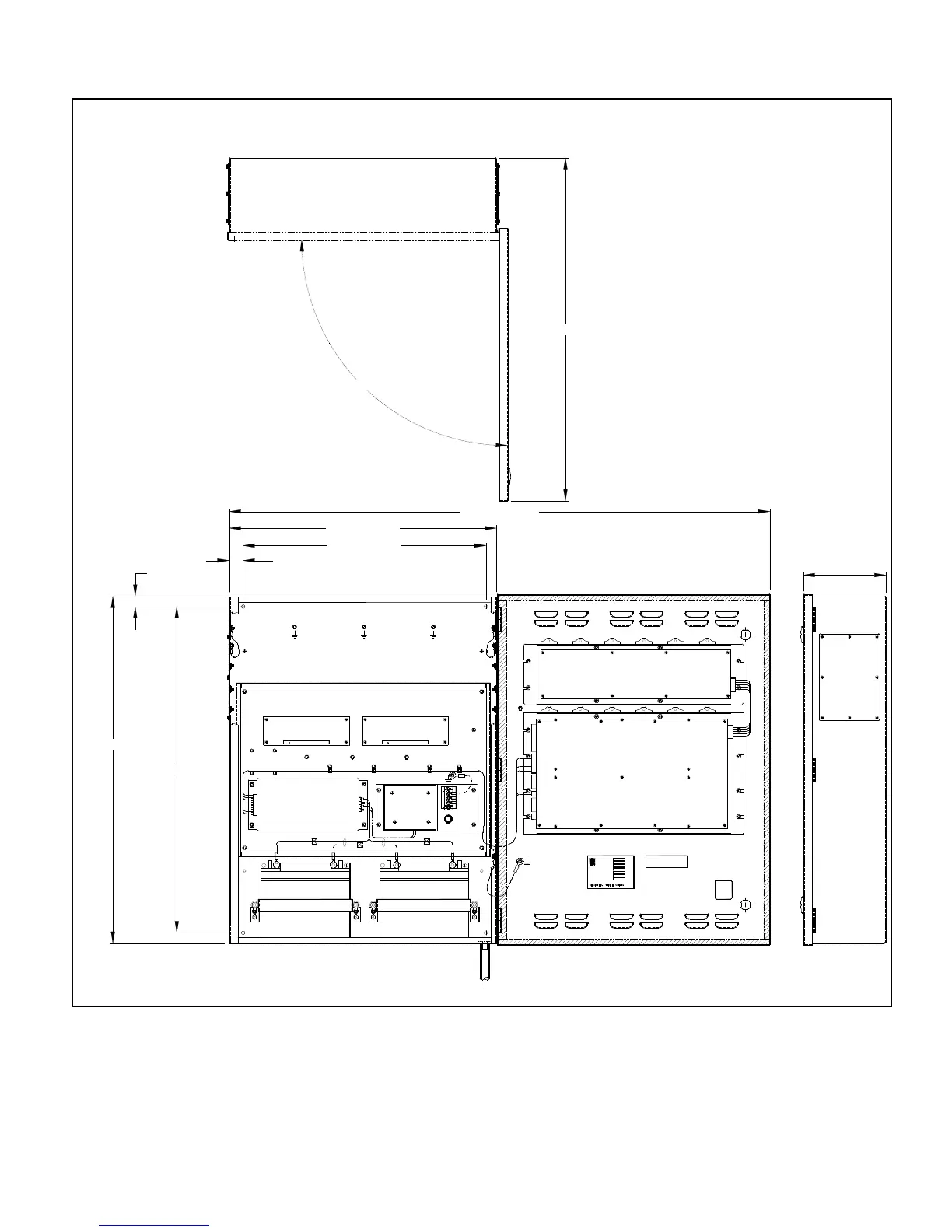

Figure 5: X2E, Installation Layout
