PRO-2000 Installation and Operation Manual
35
RS-422
J3
RS-232
Phone Jack
LCD Display
RS-422 LinkRS-422 Link
LCD Display
J2
RS-232
JP1
JP3
Jumpers
Rotary Switch
DIP Switches
Reset Button
Reset
Status
Error code
Indicators
Communication
Indicators
Power/Status
Indicators
Monitor Power
AC/DC Fault
Power
Connector
Running
J10
J8
LD25
LD20
LD12
LD19
LD11
LD1
SW3
SW1
SW2
1
J1
Master Alarm
and Trouble
Relays
Lithium
Battery
RAM
Program Device
Configuration
Communication
module sockets
Position for Expansion
cards with screw
termination to field devices
Connectors for MPU Backplane
JP4

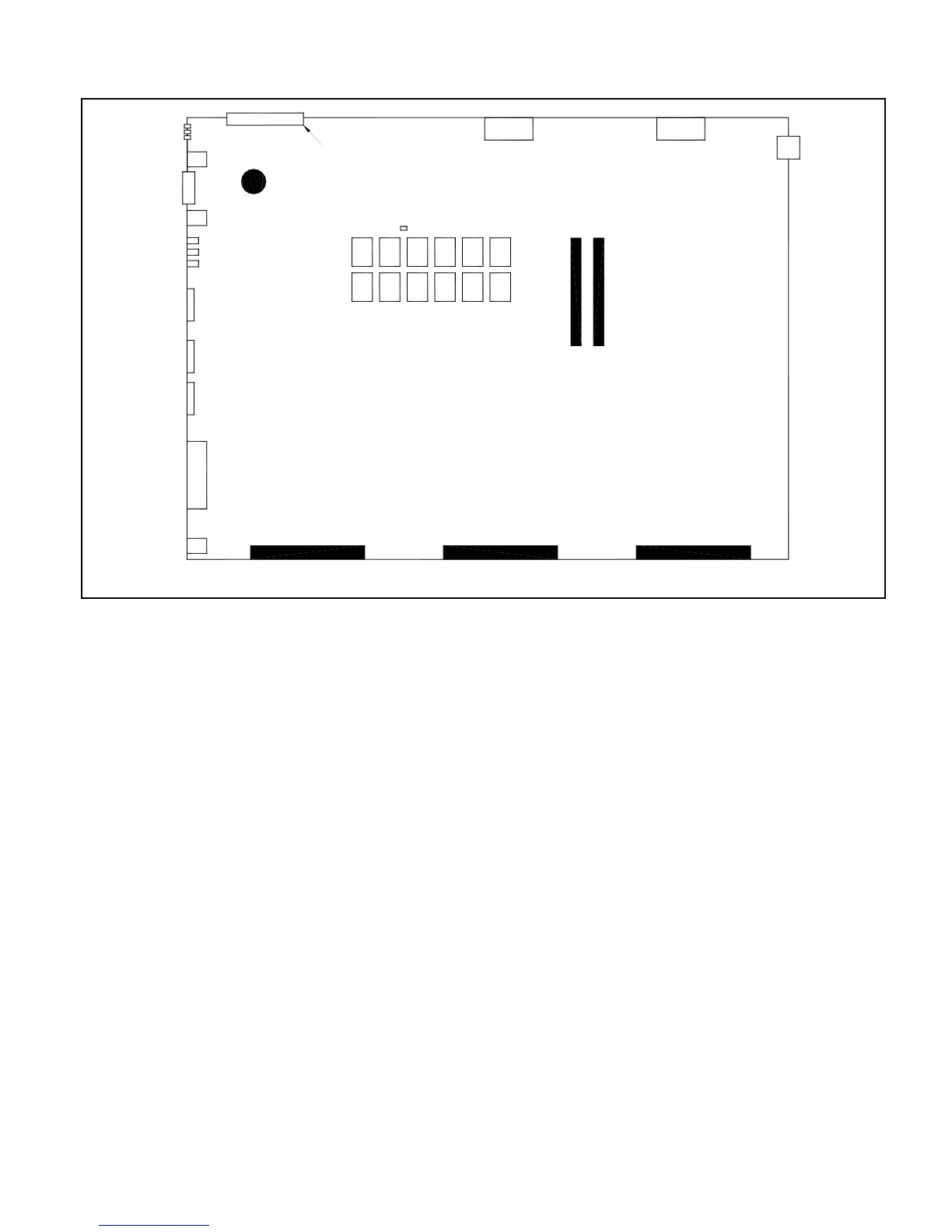

Figure 27: MPU Backplane Connectors
