PRO-2000, X6 SERIES - S/B/E/M
14
PRO-2000, X6 SERIES - S/B/E/M
The PRO-2000 X6 panels are fire alarm monitoring and control units suitable for medium to large applications. Very
large applications can be covered with networked panels.
The PRO-2000 X6 Series consist of four types of panels: the X6B, the X6E, the X6M and the X6S.
PRO-2000 X6S (standard)
The X6S is the standard panel housed in a 24" x 30" (610 mm x 762 mm) enclosure. The X6S consists of a
processing unit (MPU to process all field data and a display unit (LCD) to display all events. The LCD has a
standard 2 line x 40 character display with the associated display list controls and indicators and the standard 24
configurable indicators (LEDS) and 12 configurable push buttons.
PRO-2000 X6B (blank)
The X6B is the blank panel housed in a 24" x 30" (610 mm x 762 mm) enclosure. It has the same features as the
X6S, but without a display unit (LCD).
PRO-2000 X6E (expanded)
The X6E is the expanded version housed in a 24" x 30" (610 mm x 762 mm) enclosure. It has the same features as
the X6S plus an additional 48 configurable indicators (LEDs) and an additional 24 configurable push buttons.
PRO-2000 X6M (MIMIC)
The X6M is the mimic version housed in a 24" x 41" (610 mm x 1041 mm) enclosure. It has the same features as the X6S plus a
geographic mimic providing a graphical representation of the protected area. The mimic contains up to 144 indicators (LEDs) to
provide visual feedback and 72 programmable push buttons.
Addressable Fire Detection and Control System
AL
ARM
SY
STEM DISPLAY
123
456
789
*0#
EXIT
HELP
CONTINUE
MENU
ENTER
SUPERVISORY
ENABLED
CONTROLS
POWER ON
FAILED
PANEL
NEXT
LAST
PREV
FIRST
TEST
LAMP
MORE
VISORY
SUPER-
ALARM
TROUBLE
SERVICE
STATUS
ISOLATE
VWXSTU YZ
DEF
MNOJKL
ABC
PQR
GHI

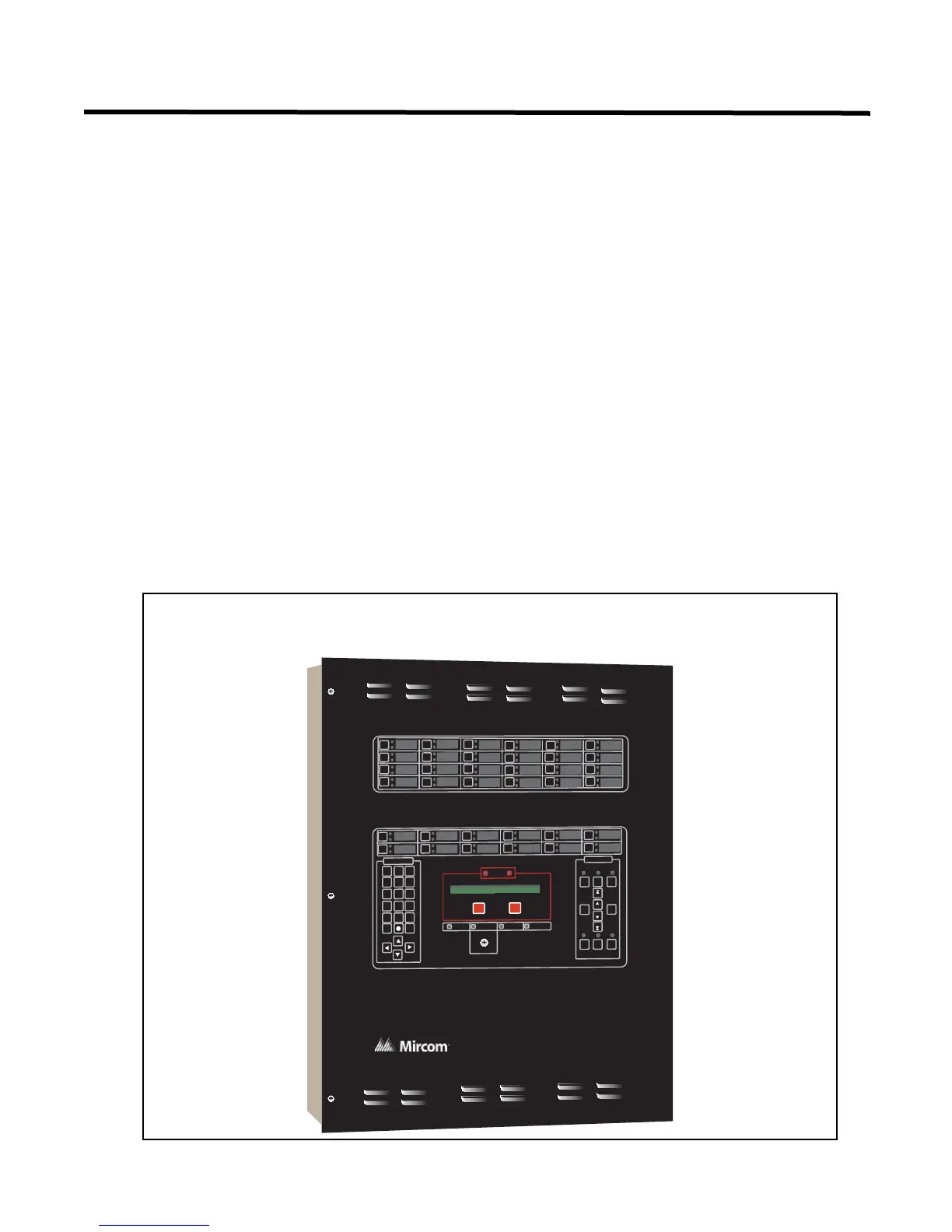

Figure 9: Synoptic Sketch of the PR0-2000, X6 Series
