5 - 22
5.4 Precautions for Wiring/Connecting the EMC Directive-Compliant Product
5.4.2 Processing connection cables

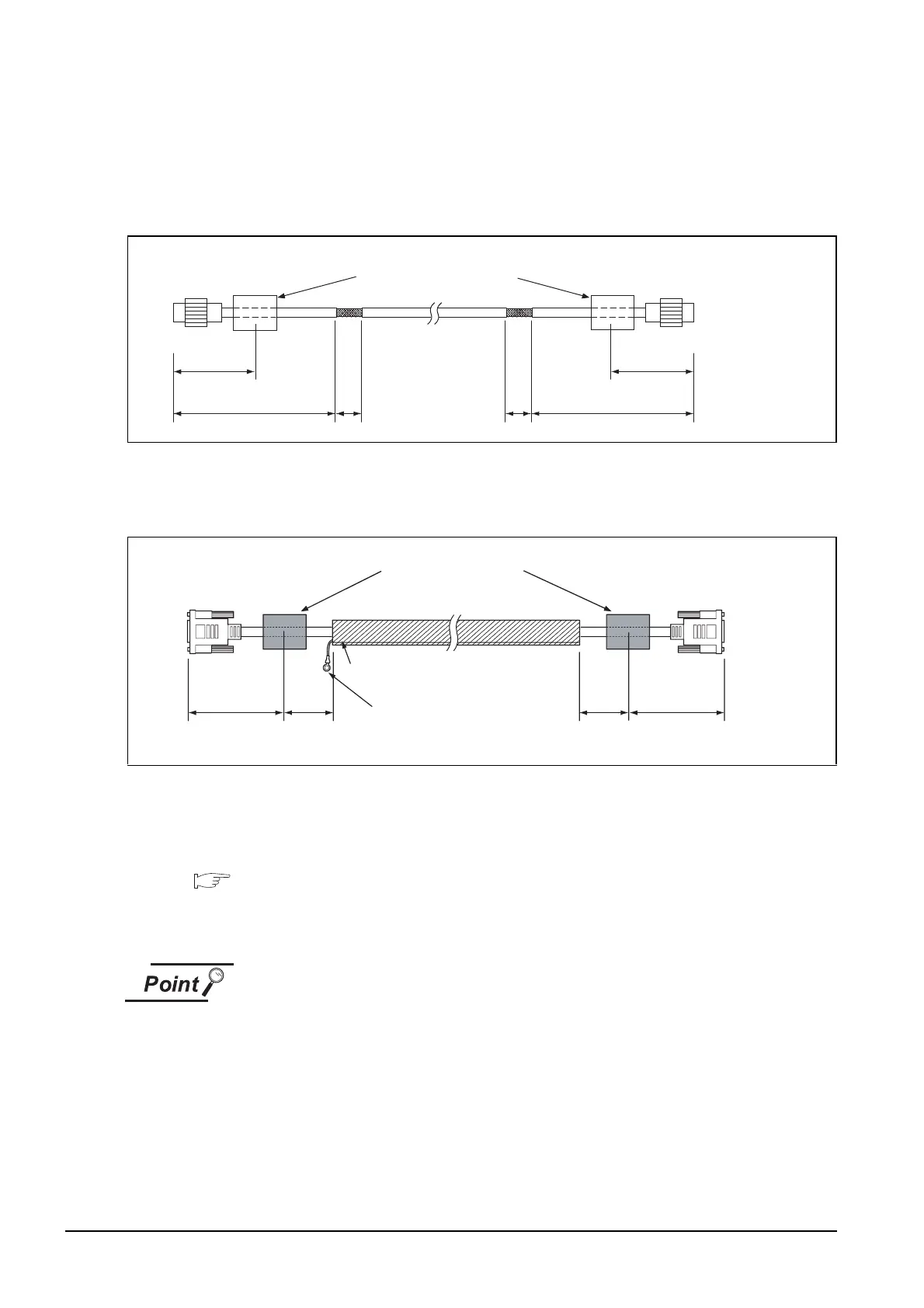

(7) Video/RGB connection
(a) Video input
• Peel the sheath (with the length shown below) at both ends of the cable, and expose the
shield braided wire for grounding. (For grounding with cable clamps. (refer to Section 5.4.3.))
• Attach the ferrite core to the cable in the position as illustrated below.
(b) RGB input/output
• Wind cable shield material around the cable, and pull out the grounding braided wire of the
cable shield material with the length shown below.
• Attach the ferrite core to the cable in the position as illustrated below.
(8) PLC (manufactured by other company), microcomputer, temperature controller, inverter, servo
amplifier, CNC, MODBUS(R)/RTU or MODBUS(R)/TCP connection
Produce the cable (RS-232 cable, RS-422 / 485 cable) for connecting the GOT to a controller with
reference to the following manual.
•GOT1000 Series Connection Manual for GT Works3 and a controller used
•GOT1000 Series Connection Manual for GT Designer2/GT Works2
Configure the system to meet the EMC Directive specifications for the connected
device when connecting the GOT to a controller.
The following gives the instructions to ensure the machinery comply with the EMC
Directive. However, the manufacturer of the machinery must finally determine how
to make it comply with the EMC Directives: if it is actually compliant with the EMC
Directives.
(ZCAT3035-1330)
GOT side
130 or
less
130 or
less
230 or less
Ferrite Core
(5.12) (5.12)
(9.06)
Camcorder/vision
sensor side
Unit : mm (inch)
(1.57)
40
(1.57)
40
400 or less
(15.75)
GOT side
Vision sensor/
personal computer/
external display side
40
or less
130 or less
Unit : mm (inch)
Ferrite Core
(ZCAT3035-1330)
Grounding braided wire
(50mm)
Cable shield material
40
or less
130 or less
(5.12) (1.57)
(5.12)(1.57)
