8 - 28

8.6 Sound Output Unit

8.6.2 Installation procedure

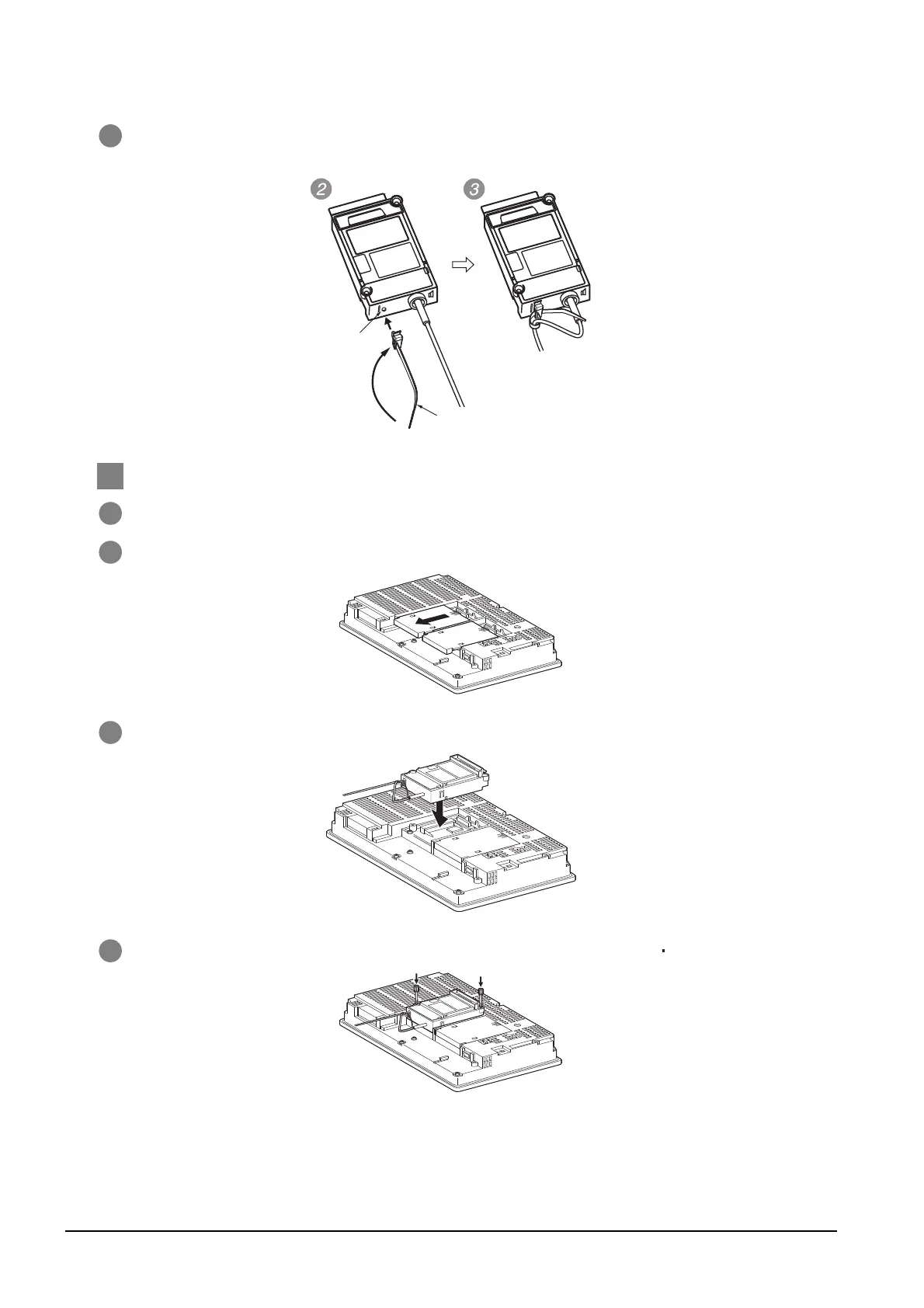

3 Put the cable of the external speaker through the looped cable clamp band, and pull the band for fixing

the cable.

2 Unit installation

1 Turn off the GOT.

2 Remove one extension unit cover of the GOT.

3 Fit the sound output unit in the GOT case.

4 Tighten two sound output unit mounting screws with a torque of 0.36 to 0.48N m.

Cable clamp
