8.6 Sound Output Unit
8.6.2 Installation procedure
8 - 29
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
PART NAME AND
SETTINGS
5
EMC AND LOW
VOLTAGE
DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION

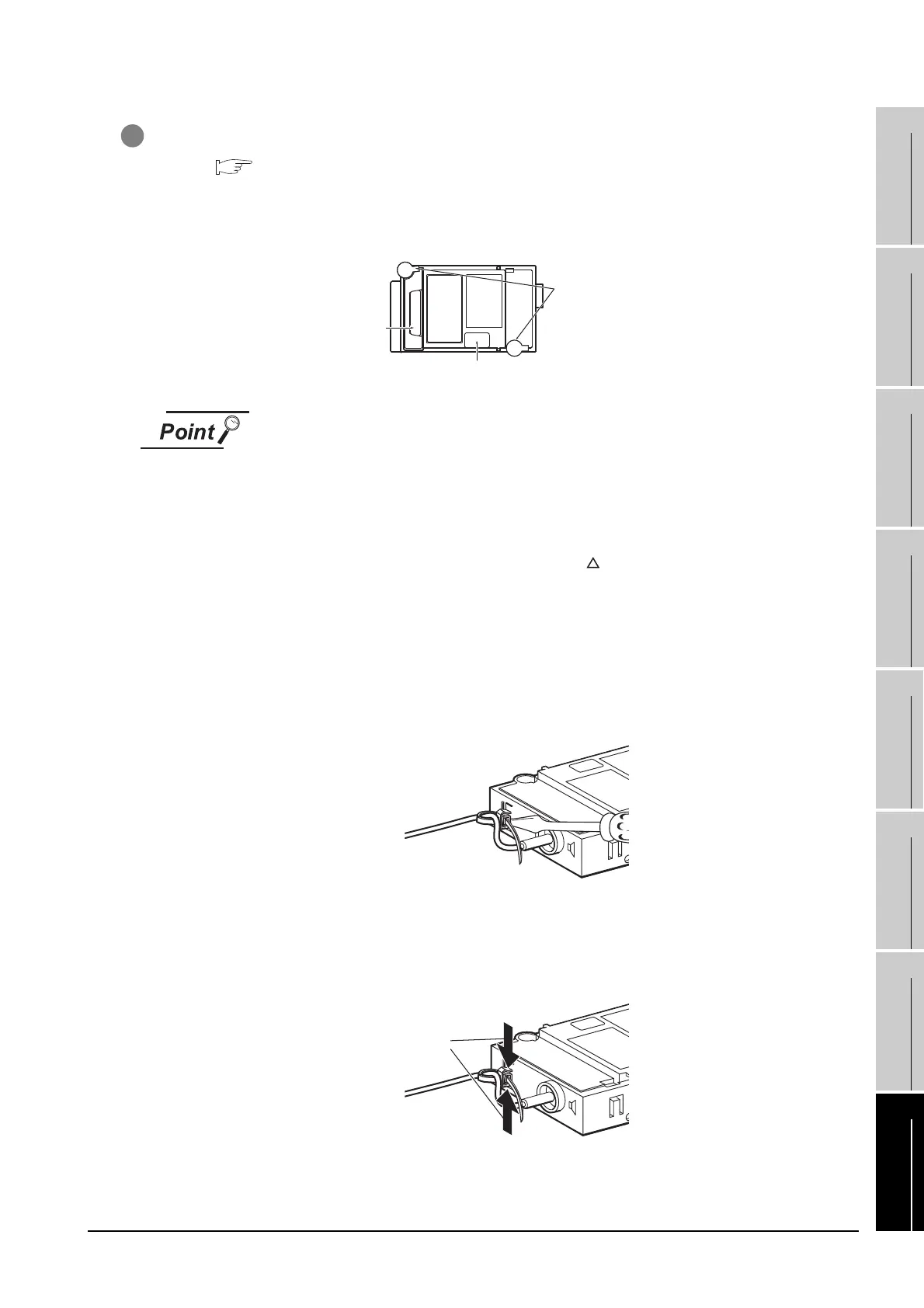

5 When installing an extension unit on the outer layer, refer to the following.
8.1.3 Installing multiple extension units in layers
When not installing an extension unit on the outer layer, cover the top of mounting screws (4 places)
with accessory stickers in order to avoid receiving static electricity.
Keep the connector cover and sticker fixed as shown in the following figure.
(1) Precautions for connecting external speakers
• Do not connect or disconnect the cable of the external speaker during sound
outputs.
• Do not connect any devices other than external speakers to the sound output
unit.
(2) Removing sound output unit
When removing the sound output unit, tilt PULL of the unit and remove the unit
so as not to break the connector.
(3) Cable clamp
• Removing cable clamp band
The cable clamp band can be removed after the cable of the external speaker is
fixed with the cable clamp.
Pull out the cable clamp band with the tab of the cable clamp pushed up using a
tool, including screwdrivers.
• Removing from sound output unit
The cable of the external speaker can be removed even though the cable is
fixed with the cable clamp.
Remove the cable clamp by pressing it in both directions (arrow A).
Sticker
Accessory sticker
Connector cover
To Next Page
