8.13 Protective cover for oil

8.13.2 Installation procedure

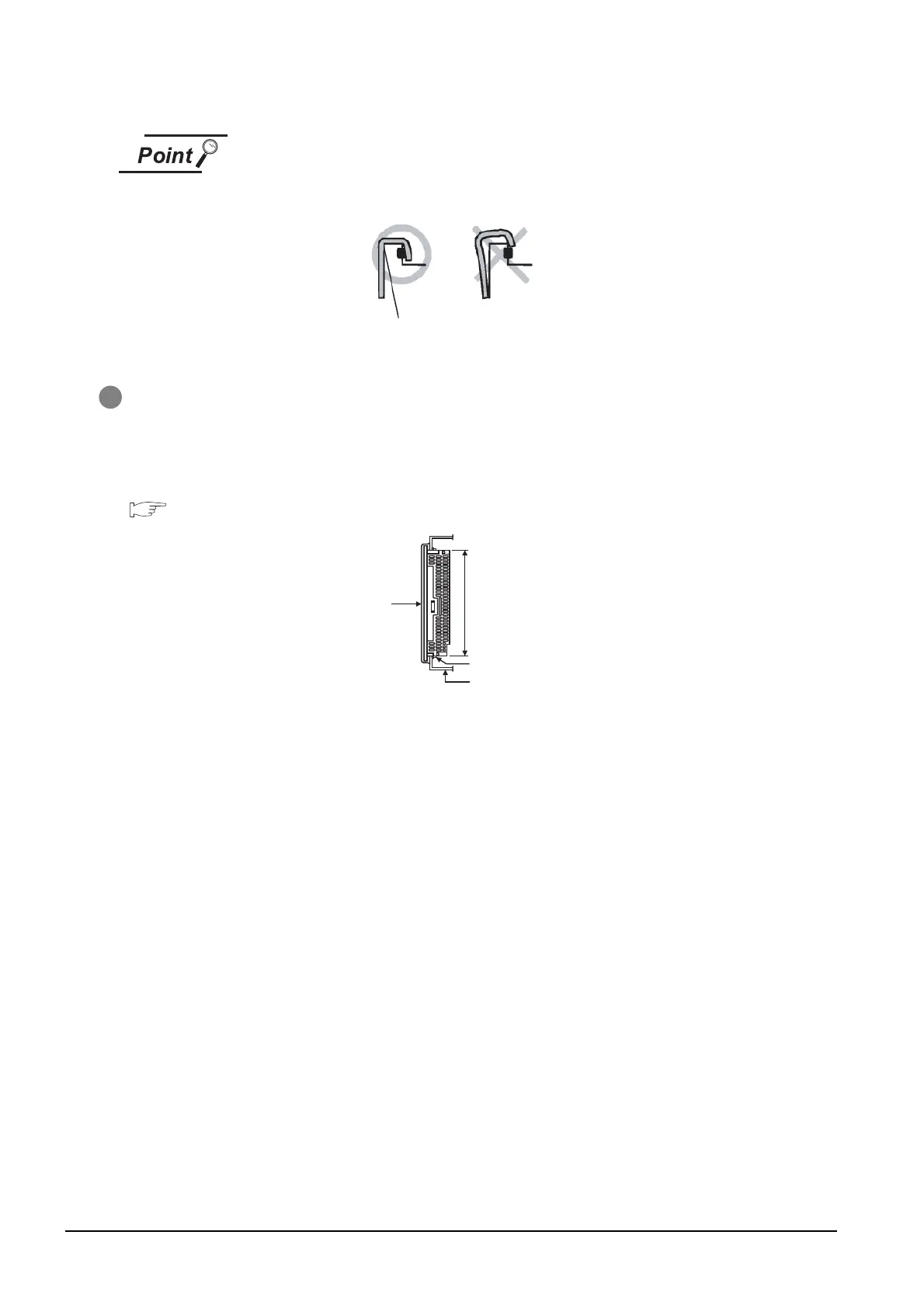

Before mounting the GOT onto the control panel

Please confirm all surroundings. Whether the rubber packing part is surely covered

to prevent going into such as the requids in the board.

6 Mount the GOT onto the control panel.

When the control panel is dirty, clean the control panel.

The panel cutting dimensions and mounting screw tightening torque with the protective cover for oil are

the same as those without the cover.

For how to mount the GOT onto the control panel, refer to the following.

6. INSTALLATION

Make sure that corners of protective

cover for oil match those of GOT front.

Protectivecover

for oil

Panel cut

dimensions

Mounting metal fixture

Control panel
