19.6 Backlight Replacement

19.6.2 Replacement procedure of backlight

9 Mount a new backlight in the reverse procedure of removal.

10 When the GOT with the insulation sheets for protecting cables is used, place the cables between the

insulation sheet and the insulation sheets for protecting cables.

11 When connecting the cable connectors of the backlight and the GOT unit, connect by crossing the cable

connectors each other as the below.

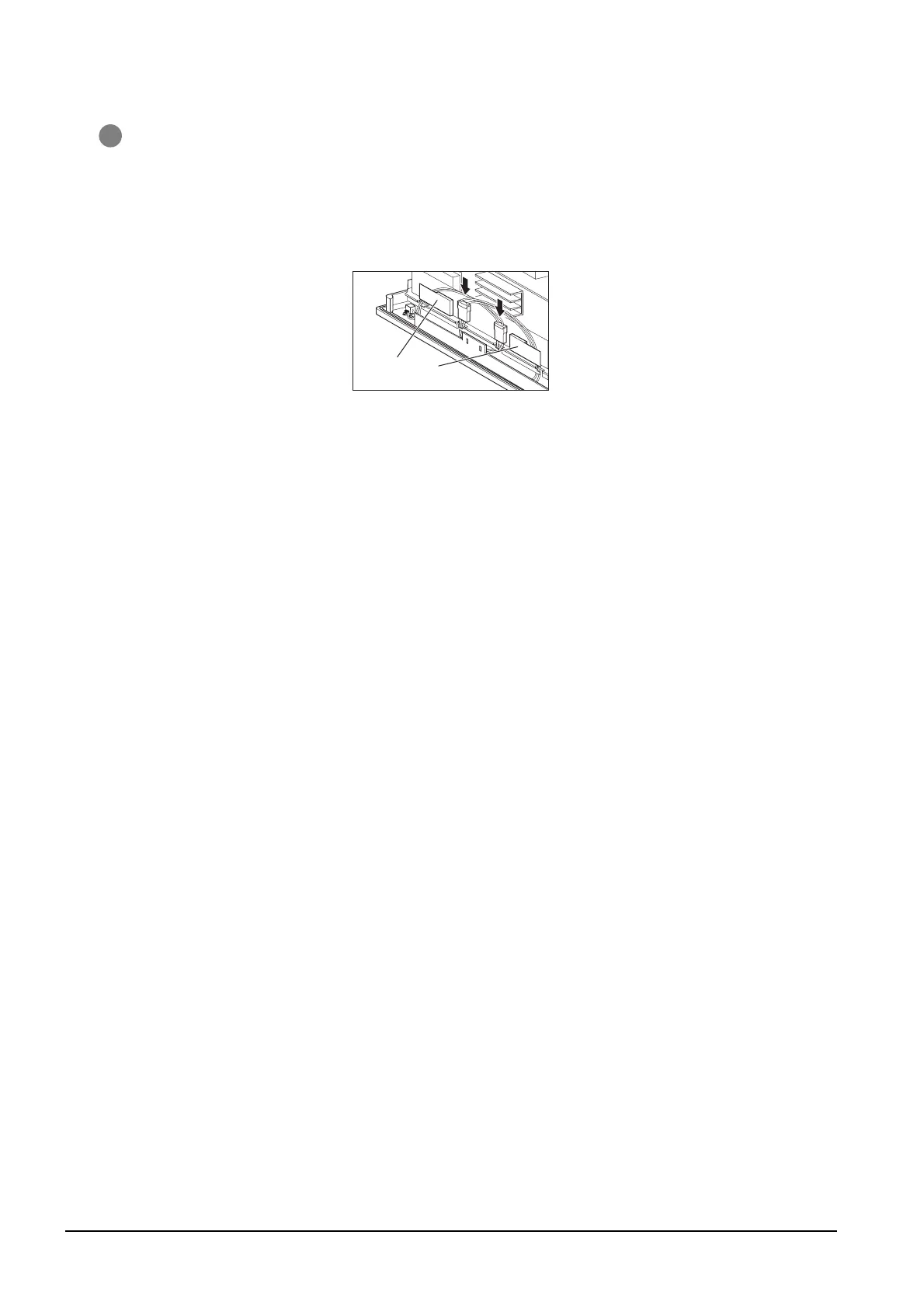

12 The following figure shows an example with the insulation sheets for protecting cables.

Also assemble the case in the reverse procedure of disassembly. (Tighten the GOT rear fixing screws

within the torque range of 0.36 to 0.48N·m).

When mounting the case, take care of not biting the cables between the case and the GOT.

Insulation sheets

for protecting cables
