19.6 Backlight Replacement

19.6.2 Replacement procedure of backlight

9 Mount a new backlight in the reverse procedure of removal.

When the GOT with the insulation sheets for protecting cables is used, place the cable between the

insulation sheet and an insulation sheet for protecting cables.

When connecting the cable connector of the backlight to the GOT side connector, connect it as shown

below.

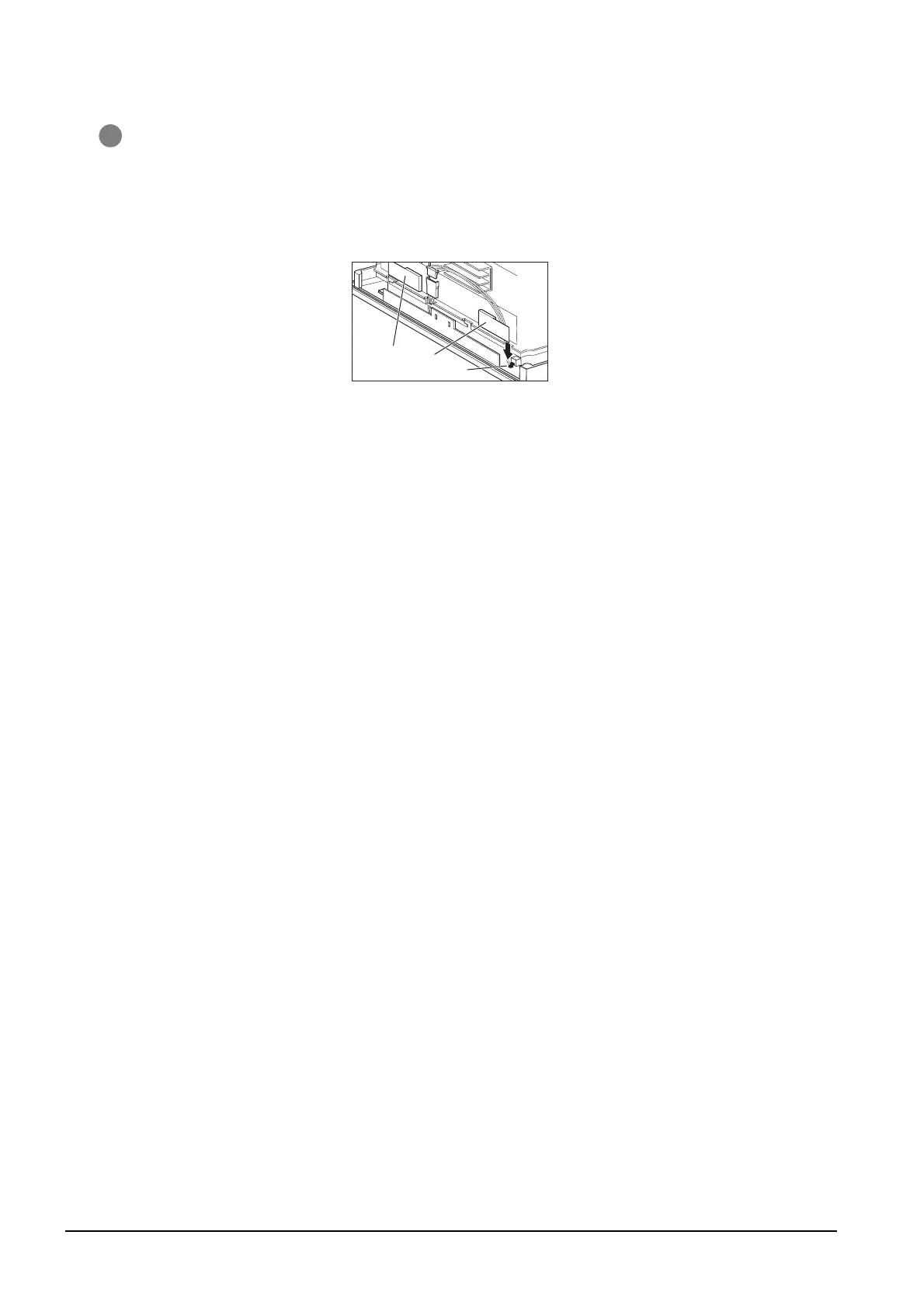

The following figure shows an example with the insulation sheets for protecting cables.

Also attach the case in the reverse procedure of removal. (Tighten the GOT rear fixing screws within the

torque range of 0.36 to 0.48N·m).

When attaching the case, take care of not biting the cables between the case and the GOT.

Insulation sheet

for protecting cables

Latch
