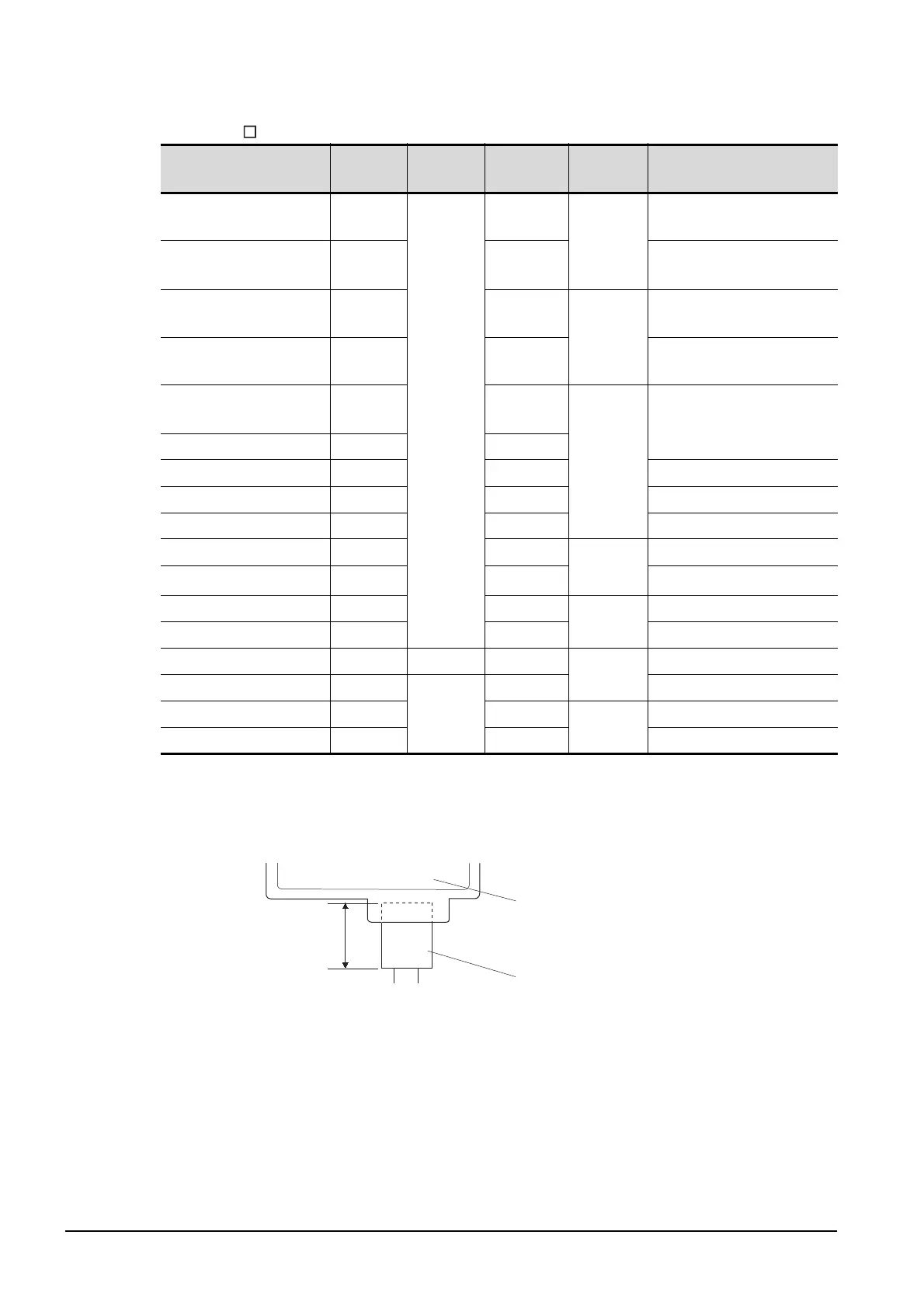

Appendix 1 External Dimensions
(e) GT155
Unit: mm (inch)
*1 Refer to App.1 (7) for the depth dimensions when installing units, which allows multiple stages.
*2 For cables prepaired by the user, the dimensions are different.
*3 This dimension is applied when the external dimension of cable connector is 21.5mm. (Refer to the following fig-
ure.) The dimension varies depending on the connector used.
*4 For cable details of GT15-75J71LP23-Z (Optical loop unit), consult the local office of Mitsubishi Electric System &
Service, Co., Ltd.
*5 GT1585V-S
*6 GT1575V-S
*7 If cable bending radius is smaller than the lowest part of the case on the back of the GOT, the dimension of *7 is
equal to or less than 0; however, it is written as "0" in the table.
*8 The bend radius varies depending on the Ethernet cable to be used.
Model name A B C D
R
(bending radius of the cable)
GT15-QBUS,
GT15-QBUS2
95(3.74)
16(0.63)
79(3.11)
23(0.91)
55(2.17)
GT15-ABUS,
GT15-ABUS2
73.5(2.89) 57.5(2.26) 36(1.42)
GT15-75QBUSL,
GT15-75QBUS2L
95(3.74) 79(3.11)
10(0.39)
55(2.17)
GT15-75ABUSL,
GT15-75ABUS2L
73.5(2.89) 57.5(2.26) 36(1.42)
GT15-RS2-9P*2,
GT15-RS4-9S*2
72.5(2.85) 56.5(2.22)
23(0.91)
30(1.18)
GT15-RS4-TE*2 33.5(1.32) 17.5(0.69)
GT15-J71E71-100 38(1.5) 22(0.87) 24(0.95)
GT15-J71LP23-25 *3 *3 *3
GT15-J71BR13 87.5(3.44) 71.5(2.81) 30(1.18)
GT15-J71GP23-SX 80(3.15) 64(2.52)
36.5(1.44)
15(0.59)
GT15-J71GF13-T2
*8
66(2.60) 50(1.97) 26(1.02)
GT15-J61BT13 47(1.85) 31(1.22)
23(0.91)
28(1.1)
GT15-PRN 52(2.05) 36(1.42) 18(0.71)
GT15-CFCD - - -
22(0.87)
-
GT15-CFEX-C08SET 120(4.72)
16(0.63)
104(4.09) 55(2.17)
GT15-DIO 81(3.19) 65(2.56)
23(0.91)
43(1.69)
GT15-SOUT 44(1.73) 28(1.10) 30(1.18)
GT15-J71E71-100
Cable connector
21.5
(0.85)
