Mitsubishi Pajero - Relay Mounting Locations

I3
-+

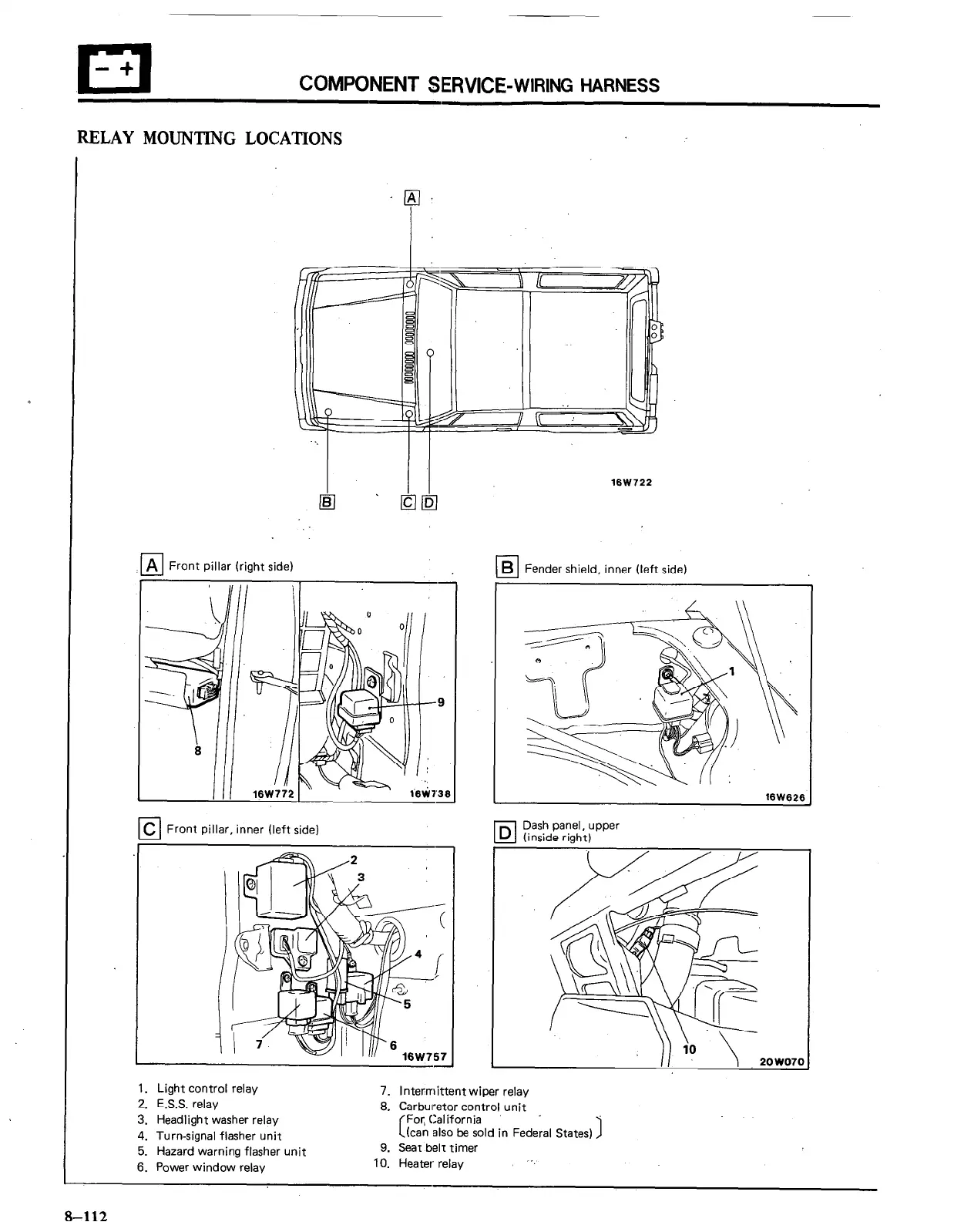

COMPONENT SERVICE-WIRING HARNESS
RELAY MOUNTING LOCATIONS
16W722
7
A Front pillar (right side)
a
Front pillar, inner (left side)
El
Fender shield, inner (left side)
16W626
Dash panel, upper
1. Light control relay
2. E.S.S. relay
3. Headlight washer relay
4. Turn-signal flasher unit
5. Hazard warning flasher unit
6. Power window relay
7. Intermittent wiper relay
8. Carbul-etor control unit
I
For, California
(can also be sold in Federal States)
1
9. Seat belt timer
10. Heater relay
-..
