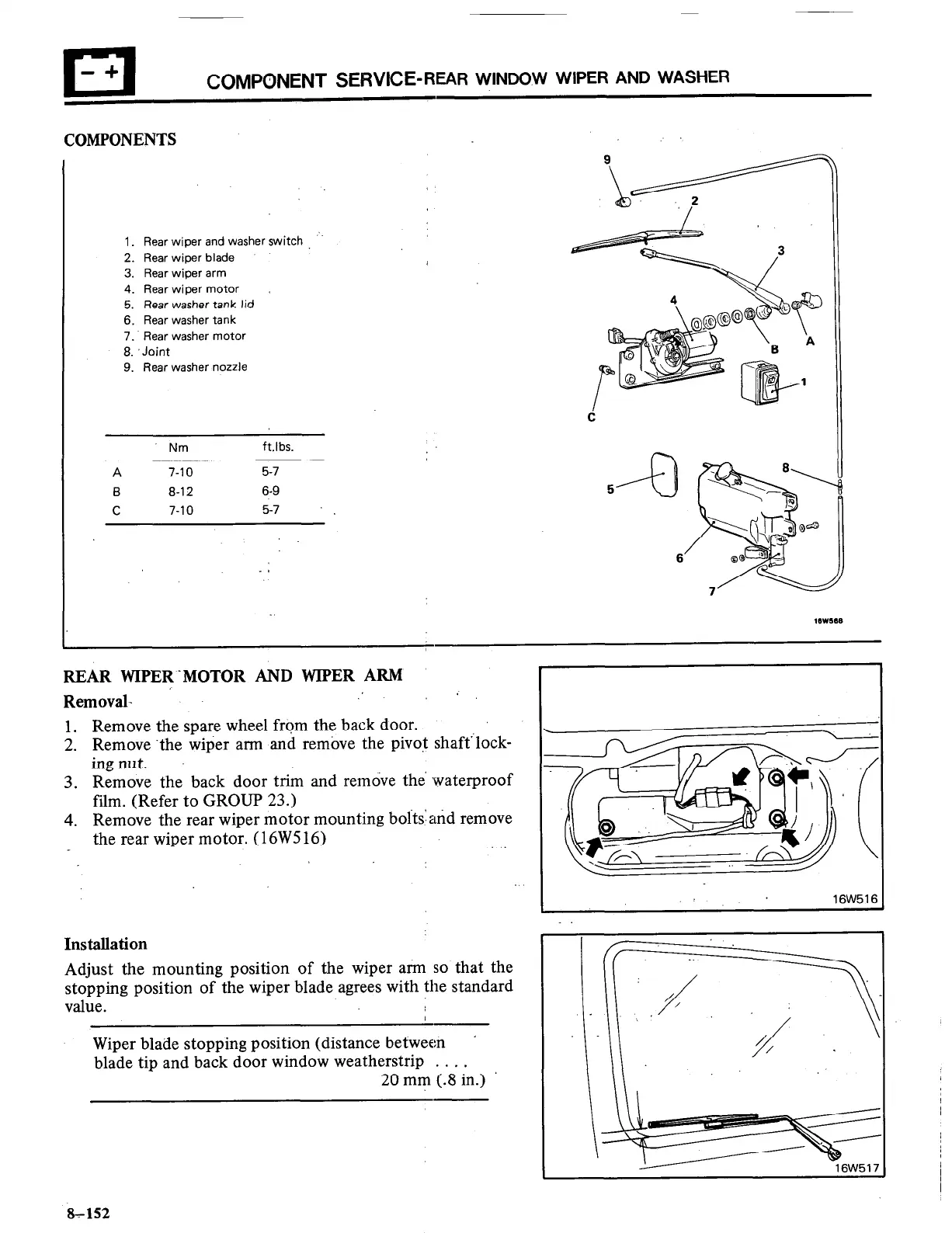

COMPONENT SERVICE-REAR
WINDOW WIPER AND WASHER
COMPONENTS
1. Rear wiper and washer switch
2. Rear wiper blade
3. Rear wiper arm
4. Rear wiper motor
5. Rear washer tank lid
6. Rear washer tank
7. Rear washer motor
8. Joint
9. Rear washer nozzle
Nm ft.lbs.
A
7-l 0 5-7
0
8-12 6-9
C
7-10 5-7
6
REAR WIPER-MOTOR AND WIPER ARM
Removal.
*.
1. Remove the spare wheel from the back door.
2. Remove ‘the wiper arm and remove the pivot shaft”lock-
ing nut.
3. Remove the back door trim and remove the waterproof
film. (Refer to GROUP 23.)
4. Remove the rear wiper motor mounting bolts: and remove
the rear wiper motor. (16W5 16)
Installation
Adjust the mounting position of the wiper arm so that the
stopping position of the wiper blade agrees with the standard
value.
/
Wiper blade stopping position (distance between ’
blade tip and back door window weatherstrip . . . .
20 mm (.8 in.)
16W51E
8-152
