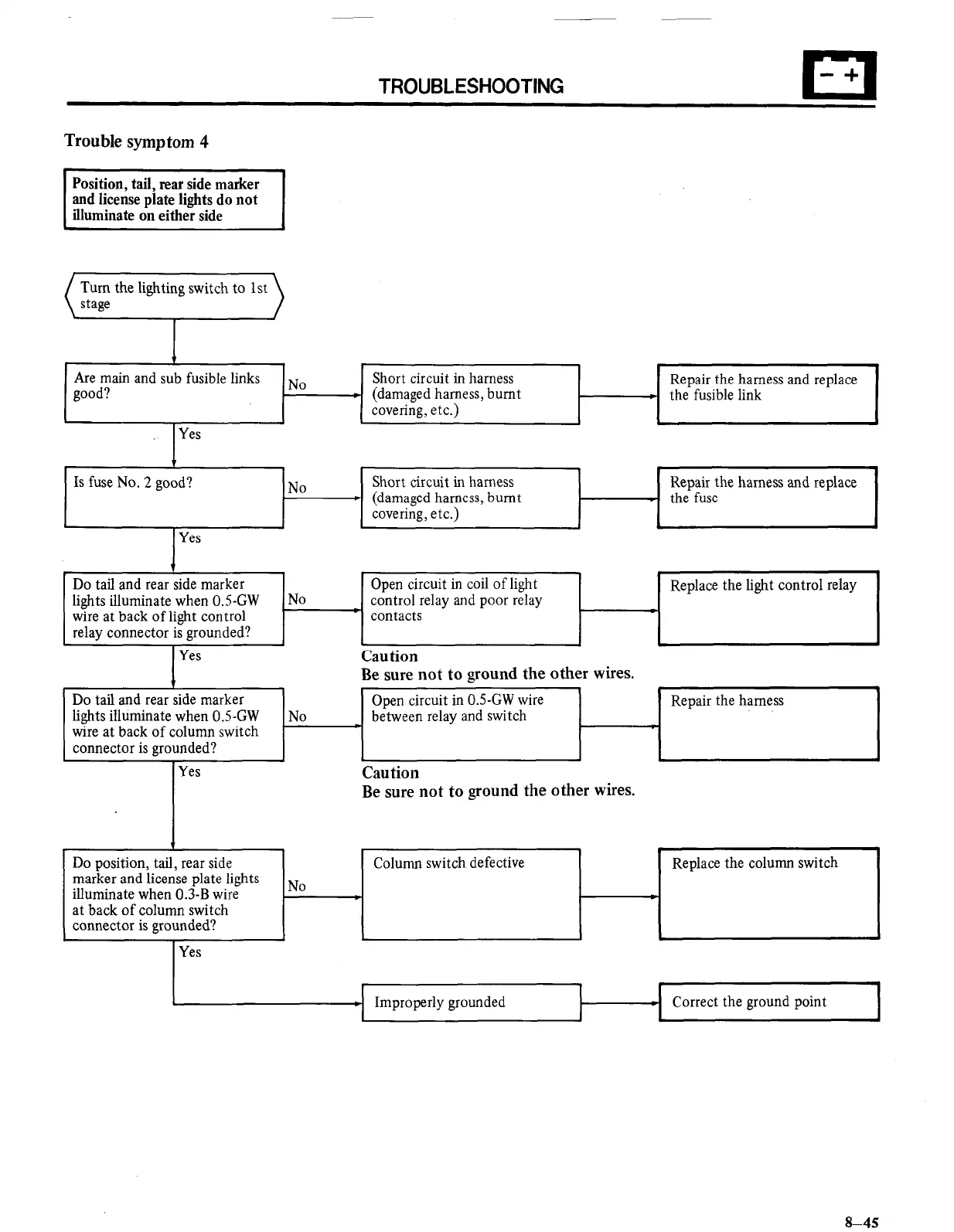

TROUBLESHOOTING
cl
-+
Trouble symptom 4
-1
Are main and sub fusible links
good?
Yes
No
Short circuit in harness
w (damaged harness, burnt
covering, etc.)
Repair the harness and replace
t the fusible link
1
Yes
Do tail and rear side marker
lights illuminate when 0.5GW
wire at back of light control
relay connector is grounded?
No
Short circuit in harness
* (damaged harness, burnt
covering, etc.)
Repair the harness and replace
-t the fuse
,
No
Open circuit in coil of light
control relay and poor relay
Replace the light control relay
e
contacts
t
- I
I
Yes
Caution
Be sure not to ground the other wires.
Do tail and rear side marker
lights illuminate when OS-GW
wire at back of column switch
connector is grounded?
Yes
Do position, tail, rear side
marker and license plate lights
illuminate when 0.3-B wire
at back of column switch
connector is grounded?
--r-
No
?
Open circuit in 0.5GW wire
Repair the harness
c
between relay and switch
r
- I
Caution
Be sure not to ground the other wires.
No
Column switch defective Replace the column switch
c
t
I 1 1 1
Improperly grounded
t
Correct the ground point
I
8-45
