Mitsubishi Pajero - Center Panel Wiring Harness

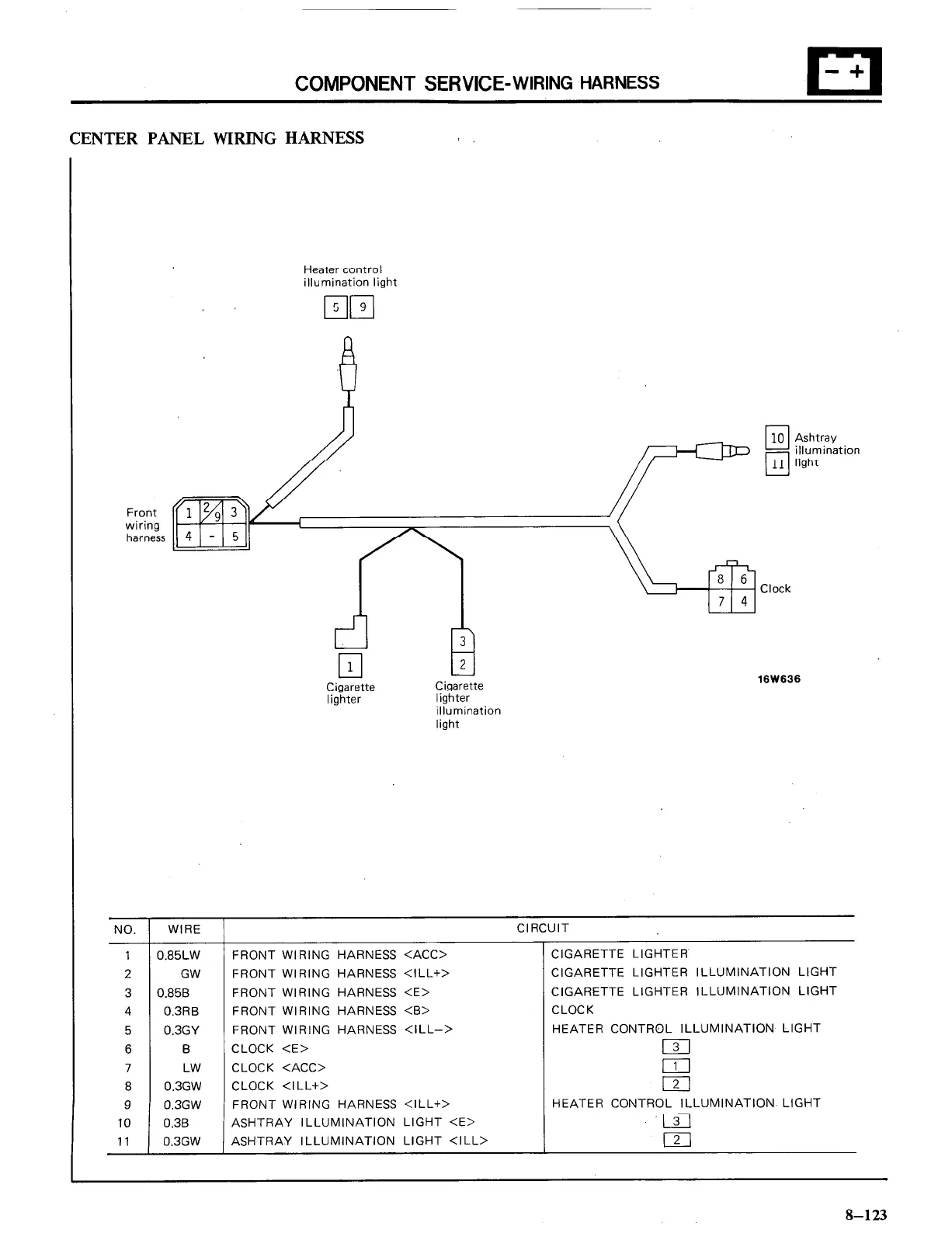

COMPONENT SERVICE-WIRING HARNESS
CENTER PANEL WIRING HARNESS
Front
wiring
harness
NO. WIRE
1 0.85LW
2 GW
3 0.858
4 0.3RB
5 0.3GY
6 B
7 LW
8 0.3GW
9 0.3GW
10
0.3B
11 0.3GW
1
Heater control
illumination light
EIEI
Ashtray
illumination
light
Cigarette
lighter
Cigarette
lighter
illumination
light
16W636
CIRCUIT
FRONT WIRING HARNESS <ACC>
FRONT WIRING HARNESS <ILL+>
FRONT WIRING HARNESS <E>
FRONT WIRING HARNESS <B>
FRONT WIRING HARNESS <ILL-->
CLOCK <E>
CLOCK <ACC>
CLOCK <ILL+>
FRONT WIRING HARNESS <ILL+>
ASHTRAY ILLUMINATION LIGHT <E>
ASHTRAY ILLUMINATION LIGHT <ILL>
CIGARETTE LIGHTER
CIGARETTE LIGHTER ILLUMINATION LIGHT
CIGARETTE LIGHTER ILLUMINATION LIGHT
CLOCK
HEATER CONTROL ILLUMINATION LIGHT
El
El
121
HEATER CONTROL ILLUMINATION LIGHT
,I_I
LLI
121
8-123
