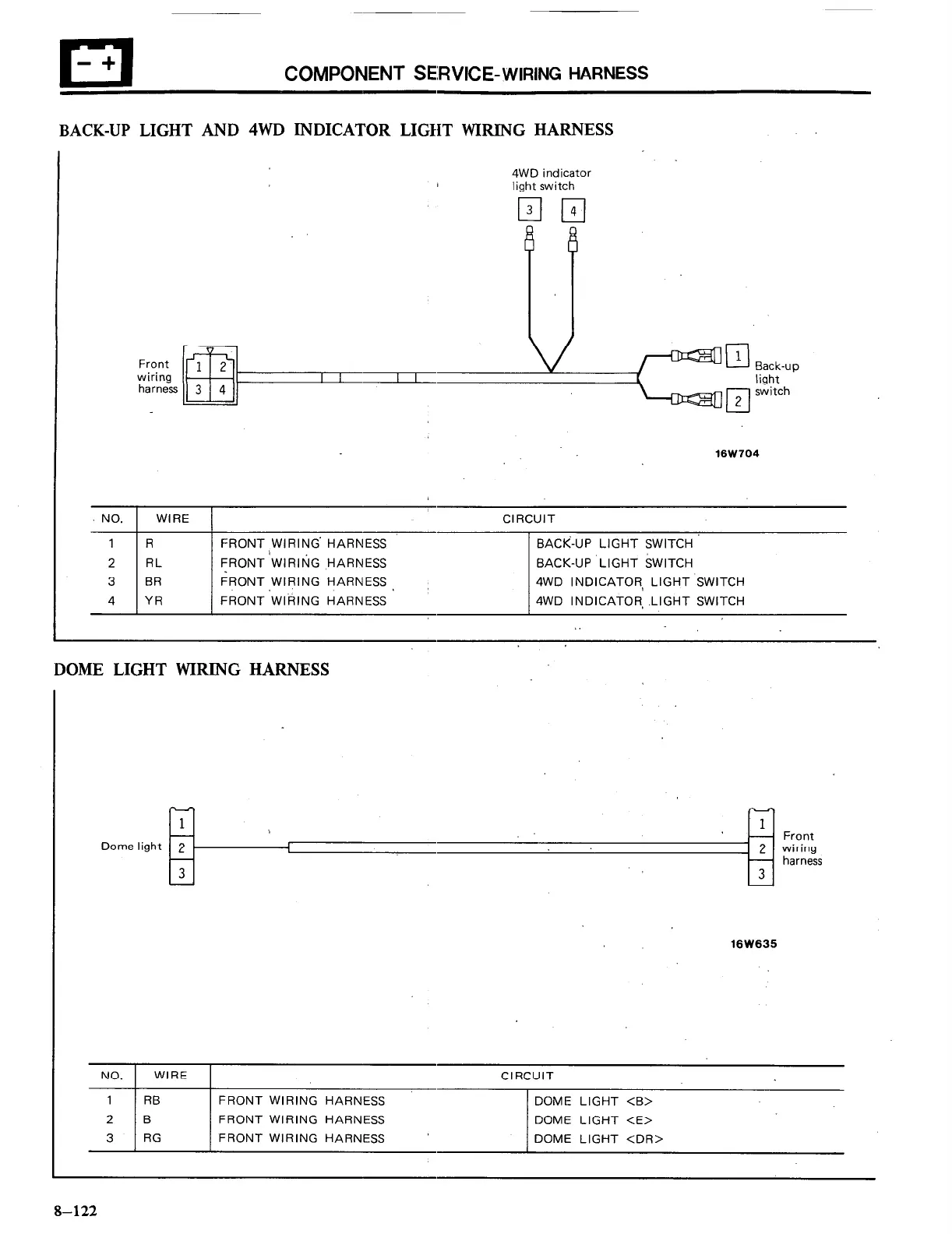

COMPONENT SEIRVICE- WIRING HARNESS
BACK-UP LIGHT AND 4WD INDICATOR LIGHT WIRING HARNESS
4WD indicator
light switch
II
3 -
I kl
I
cl
1
Back-up
light
q
switch
2
16W704
NO. 1 WIRE 1 CIRCUIT
1 R FRONT ,WIRING’ HARNESS BACK‘-UP LIGHT SWITCH.
2 RL FRONT WlRlrjG HARNESS BACK-UP LIGHT iWITCH
3 BR FRONT WIRING HARNESS ( 4WD INDICATOR, LIGHT ‘SWITCH
4 YR FRONT ‘WIRING HARNESS ’ 4WD INDICATOR. LIGHT SWITCH
DOME LIGHT WIRING HARNESS
16W635
NO. 1 WIRE 1 CIRCUIT
1 RB FRONT WIRING HARNESS
DOME LIGHT <B>
2 B FRONT WIRING HARNESS
DOME LIGHT <E>
3 RG FRONT WIRING HARNESS ’
DOME LIGHT <DR>
8-122
