COMPONENT SERVICE-STARTING SYSTEM
DISASSEMBLY-REDUCTION
Drive Type

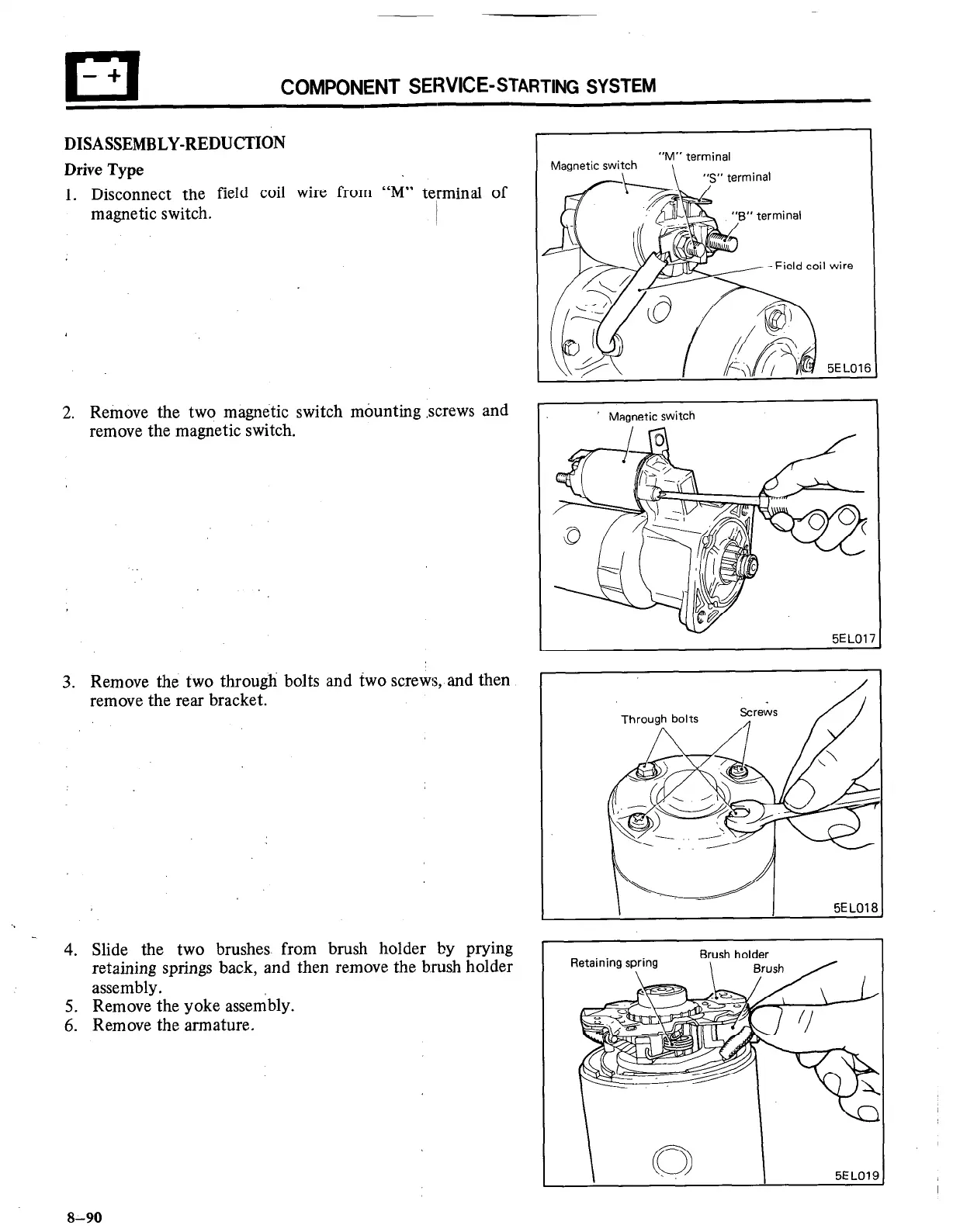

1. Disconnect the field coil wire from “M” terminal of
magnetic switch.
I,
2. Remove the two magnetic switch mounting screws and
remove the magnetic switch.
3. Remove the two through bolts and two screws, and then
remove the rear bracket.
4. Slide the two brushes from brush holder by prying
retaining springs back, and then remove the brush holder
assembly.
5. Remove the yoke assembly.
6. Remove the armature.
Field coil wire
’ Magnetic switch
1
I
/
I
k---/l 5EL018
Retaining spring
