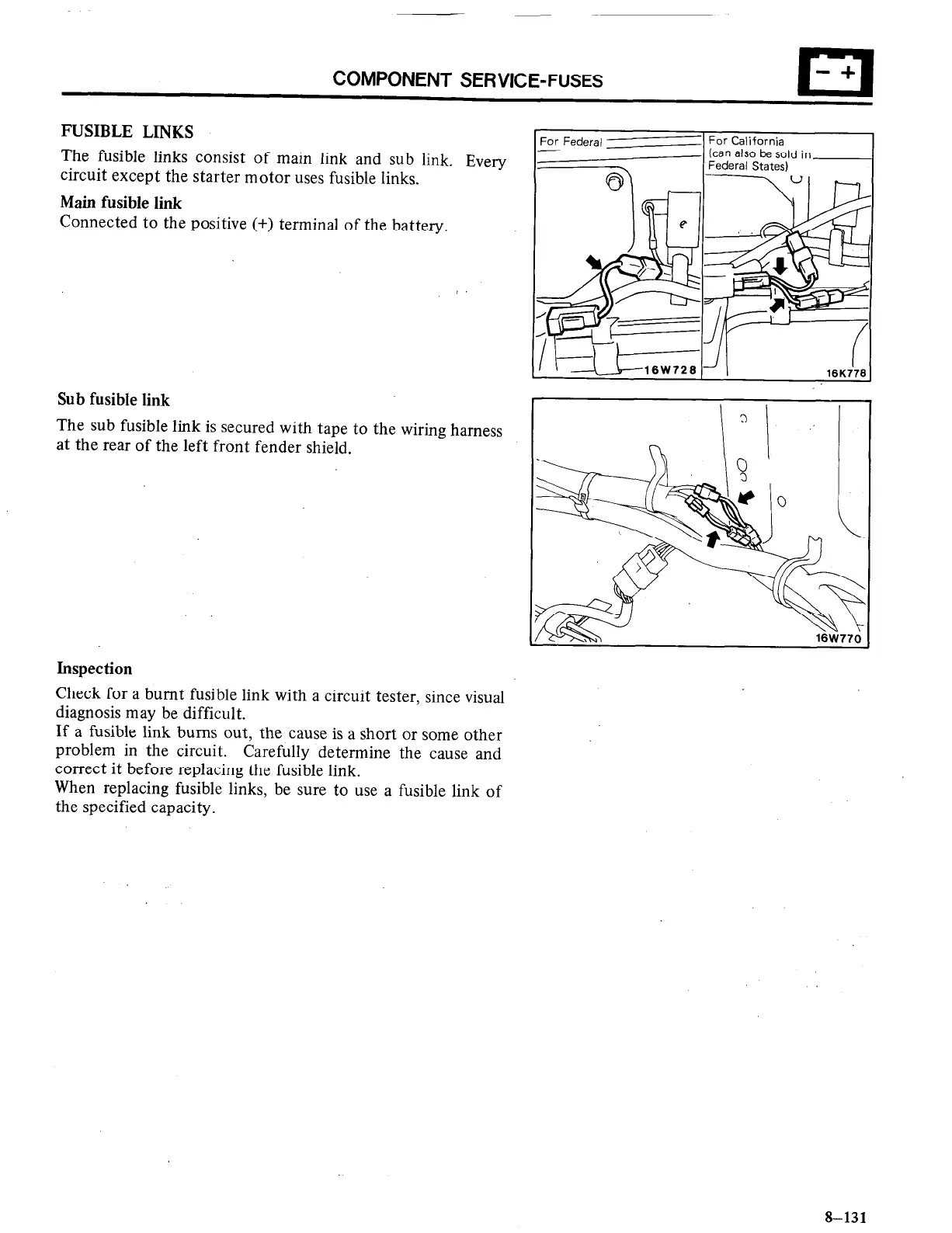

COMPONENT SERVICE-FUSES
cl
-+
FUSIBLE LINKS
The fusible links consist of main link and sub link. Every
circuit except the starter motor uses fusible links.
Main fusible link
Connected to the positive (+) terminal of the battery.
Sub fusible link
The sub fusible link is secured with tape to the wiring harness
at the rear of the left front fender shield.
Inspection
Check for a burnt fusible link with a circuit tester, since visual
diagnosis may be difficult.
If a fusible link bums out, the cause is a short or some other
problem in the circuit. Carefully determine the cause and
correct it before replacing the fusible link.
When replacing fusible links, be sure to use a fusible link of
the specified capacity.
1 For California
I
---‘-I -
(can also be sold in
.
Federal States) I
(/I-LGIJI 1 I
16K776
8-131
