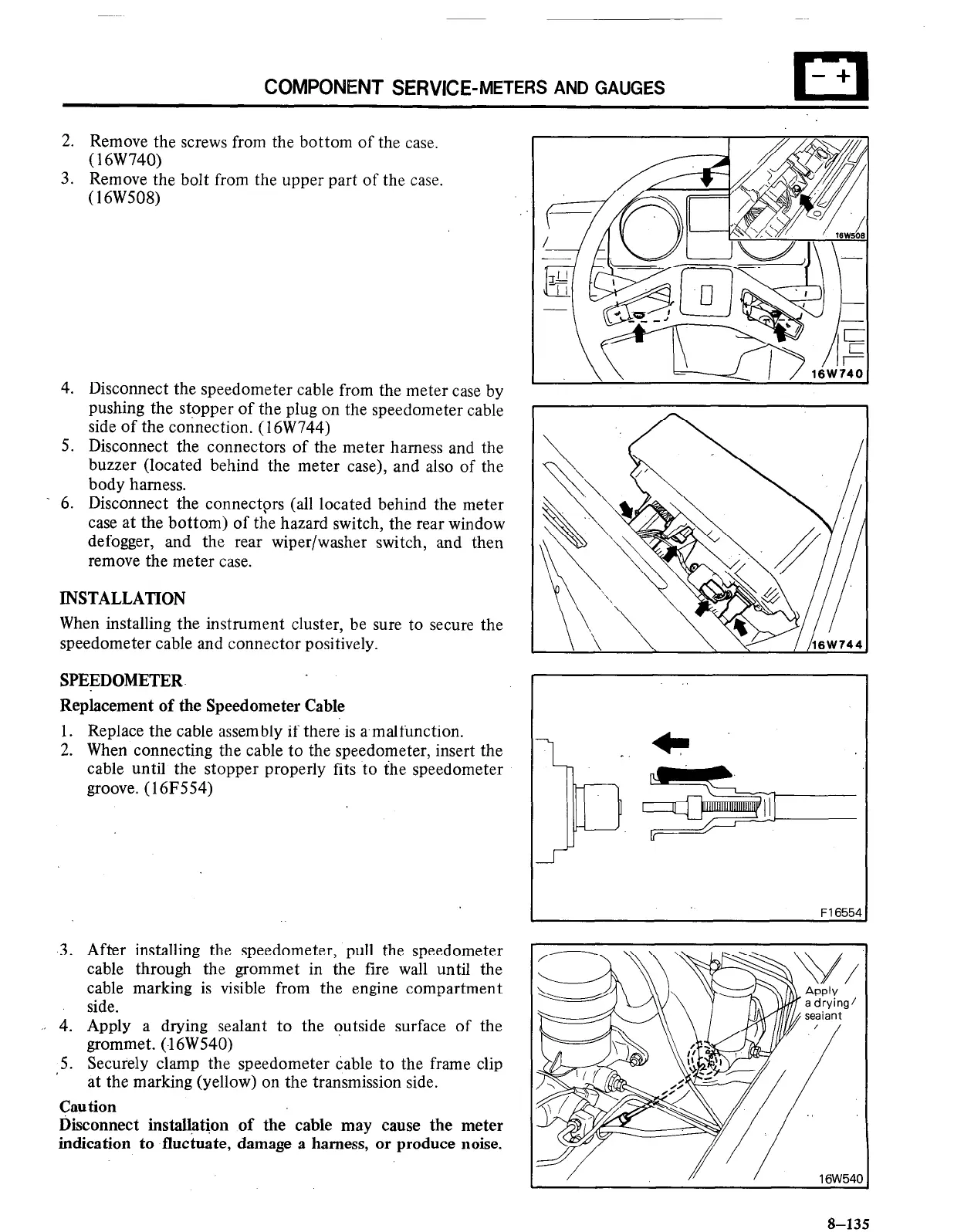

COMPONENT SERVICE-METERS AND GAUGES
2. Remove the screws from the bottom of the case.
( 16W 740)
3. Remove the bolt from the upper part of the case.
(16W508)
4. Disconnect the speedometer cable from the meter case by
pushing the stopper of the plug on the speedometer cable
side of the connection. (16W744)
5. Disconnect the connectors of the meter harness and the
buzzer (located behind the meter case), and also of the
body harness.
. 6. Disconnect the connectors (all located behind the meter
case at the bottom) of the hazard switch, the rear window
defogger, and the rear wiper/washer switch, and then
remove the meter case.
INSTALLATION
When installing the instrument cluster, be sure to secure the
speedometer cable and connector positively.
SPEEDOMETER.
Replacement of the Speedometer Cable
1. Replace the cable assembly if there is a-malfunction.
2. When connecting the cable to the speedometer, insert the
cable until the stopper properly fits to the speedometer
groove. (16F554)
3. After installing the speedometer, pull the speedometer
cable through the grommet in the fire wall until the
cable marking is visible from the engine compartment
side.
4. Apply a drying sealant to the outside surface of the
grommet. (-16W540)
,5. Securely clamp the speedometer cable to the frame clip
at the marking (yellow) on the transmission side.
Caution
Disconnect install?tjon of the cable may cause the meter
indication to fluctuate, damage a harness, or produce noise.
/
/
16W540
